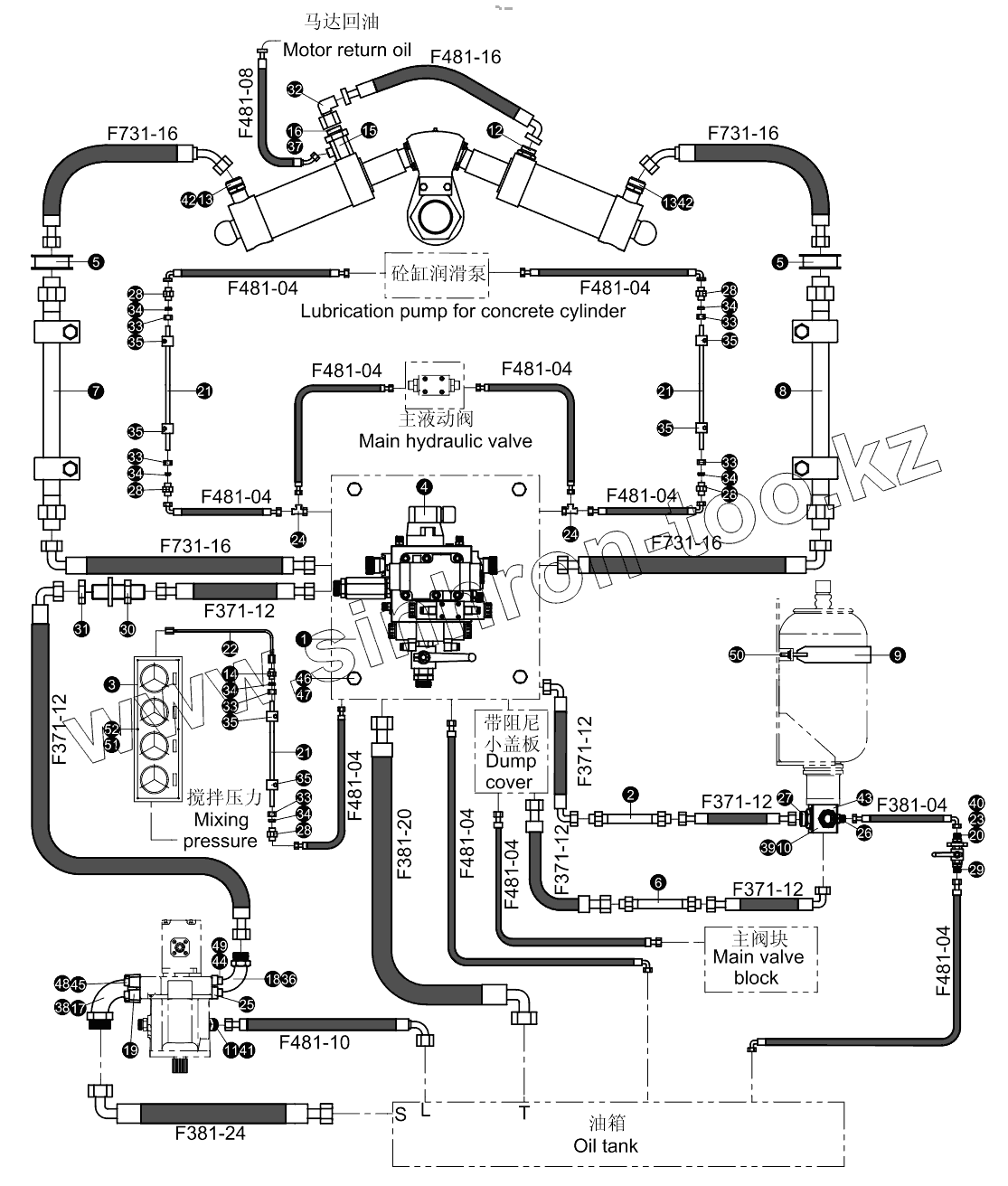

Каталог запасных частей к технике: Zoomlion 33X-4Z. Distribution oil circuit layout diagram 001615419A0000000
1
2
3
4
5
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
21
22
23
24
24
25
26
27
28
28
28
28
28
29
30
31
32
33
33
33
33
33
33
34
34
34
34
34
34
35
35
35
35
35
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 001615419A0001000 | Distribution valve block mounting frame | |
| 2 | 001615419A0002000 | Welded hard pipe | |
| 3 | 001615419A0000001 | Pressure dial | |
| 4 | 001605119A0010000 | Distribution valve set | |
| 5 | 001605119A0000002 | Rubber sleeve | |
| 6 | 001615419A0003000 | Welded hard pipe | |
| 7 | 001615419A0004000 | Distribution of hard tubes | |
| 8 | 001615419A0005000 | Distribution of hard tubes | |
| 9 | 001607719A0006000 | Hoop | |
| 10 | 001605119A0000003 | Internal and external joints | |
| 11 | 000198930A0100014 | End straight connector | |
| 12 | 000198930A0100010 | End straight connector | |
| 13 | 000198931A0100001 | End straight connector | |
| 14 | 000198930A0200002 | Straight-through connector | |
| 15 | 000198930A0510007 | Hinge bolt | |
| 16 | 000198930A0520008 | Hinge joint body | |
| 17 | 000198930A0600012 | Right angle flange joint | |
| 18 | 000198931A0600006 | Flange joint | |
| 19 | 000198930A0700001 | Flange haff | |
| 20 | 000198930A0300006 | Next door connector | |
| 21 | 001605119A0000011 | Steel pipe | |
| 22 | 1019900119 | Pressure gauge line | |
| 23 | 1140101461 | End straight coupling | |
| 24 | 1140101487 | Combined T-joint | |
| 25 | 1140101563 | Flange half | |
| 26 | 1140102198 | Straight joint | |
| 27 | 1140101647 | Straight joint | |
| 28 | 1140101427 | Straight joint | |
| 29 | 1140101598 | Clapboard nut | |
| 30 | 1140101442 | Straight-through partition connector | |
| 31 | 1140101597 | Next door nut | |
| 32 | 1140101737 | Right angle built-up joint | |
| 33 | 1140101588 | Nut | |
| 34 | 1140101496 | PSR cutting sleeve | |
| 35 | 1990200289 | Pipe clamp | |
| 36 | 1081000472 | O-ring | |
| 37 | 1081000426 | O-ring | |
| 38 | 1081000474 | O-ring | |
| 39 | 1081000479 | Rhombus seal | |
| 40 | 1081000480 | Rhombus seal | |
| 41 | 1081000484 | Rhombus seal | |
| 42 | 1081000486 | Rhombus seal | |
| 43 | 1140101583 | Screw plug | |
| 44 | 1040100407 | Screw | |
| 45 | 1040100408 | Screw | |
| 46 | 1040000114 | Bolt | |
| 47 | 1040300063 | Washer | |
| 48 | 1040300067 | Washer | |
| 49 | 1040300054 | Washer | |
| 50 | 1040200192 | Nut | |
| 51 | 1040100056 | Screw | |
| 52 | 1040200076 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
