Каталог запасных частей к технике: Zoomlion 33X-4Z. Chassis wiring harness 001600027309B3A00

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано Boom assembly 001615406A0000000 One-section arm 001615406A0100000 Two-section arm 001615406A0200000 Three-section arm 001615406A0300000 Four-section arm 001615406A0400000 Rotary assembly 001607105A0000000 Rotary reducer assembly 1030200162 Chassis outrigger assembly 001615403A0000000 Left front leg 001615403A0200000 Right front leg 001615403A0300000 Chassis 001615403A0100000 Rear outrigger 001615403A0400000 Four-arm support 001615403A0800000 Boom cylinder assembly 001615407A0000000 One-section arm cylinder 001615407A0100000 Two-section arm cylinder 001615407A0200000 Three-section arm cylinder 001615407A0300000 Four-section arm cylinder 001615407A0400000 Outrigger cylinder assembly 001615404A0000000 Left front horizontal telescopic cylinder 001615404A0700000 Right front horizontal telescopic cylinder 001615404A0800000 Rear horizontal telescopic cylinder 001615404A0900000 Outrigger vertical cylinder 001615404A0300000 Pumping unit 001615401A0000000 Hopper assembly 001690107A0000000 Mixing mechanism 001690401A0000000 Distribution valve assembly 001690201A0000000 Distribution valve assembly 001690201A0000000 Distribution valve assembly 001690201A0000000 S tube assembly 001690201A0200000 Left swing cylinder 000190201A0200000 Right swing cylinder 000190201A0300000 Pumping mechanism 001690307A0000000 Concrete piston 001696901A0000000 Pumping cylinder assembly 001696101A0000000 Left cylinder 001696101A1000000 U-shaped tube 1 001696101A0100000 Oil cylinder 001696101A0200000 U-shaped tube 2 001696101A0300000 Right cylinder 001696101A2000000 U-shaped tube 1 001696101A0100000 Oil cylinder 001696101A0200000 U-shaped tube 2 001696101A0300000 Boom conveyor pipe assembly 001615406A1100000 Get off the conveyor pipe assembly 001615402A0200000 Chassis modification 001615453J0000000 Power take-off box assembly 001615453E0100000 Pneumatic device 001605153A0600000 Frame and protection assembly 001615402D0000000 Subframe assembly 001615402G0100000 Walking platform and accessories 001615402A0400000 Boom support assembly 001615402A0500000 Cushion frame assembly 001610902A0700000 Tool box assembly 001604402A0600000 Pumping hydraulic schematic diagram 001615417A0000000 Oil suction filter 1010600039 Oil return filter 1010600052 Cooler 1010400026 Mixing motor 1010100059 Electromagnetic reversing valve 1010300527 Electromagnetic reversing valve 1010300582 Accumulator 1010800017 Electromagnetic reversing valve 1010300555 Accumulator 1010800027 Oil suction filter 1010600435 Absorbent filter 1060200000 Electromagnetic reversing valve 1010300526 Pumping oil circuit layout diagram 001615418A0000000 Chassis oil port layout diagram 001615418A0001000 Main valve block mounting frame 001615418A0002000 High and low pressure switching valve set 001614718A0002000 Rexroth open type 190 pump set 001607118A0103000 Rod multi-pass block group 001609118A0003000 Signal valve group diagram 001605118A0004000 Oil replenishment valve set 001607118A0104000 Rodless cavity multi-pass group 001605118A0006000 Distribution oil circuit layout diagram 001615419A0000000 Distribution valve block mounting frame 001615419A0001000 Distribution valve set 001605119A0010000 Mixing and cleaning oil circuit layout diagram 001615420A0000000 Mixing and cleaning valve set 001607220A0010000 Chassis hydraulic schematic diagram 001615458A0000000 Chassis layout diagram 001615457A0000000 Chassis layout diagram 001615457A0000000 Left front outrigger cloth tube diagram 001615457A0002000 Right front outrigger cloth tube diagram 001615457A0003000 Rear outrigger cloth tube diagram 001615457A0004000 Left front horizontal telescopic cylinder layout diagram 001615457A0005000 Right front horizontal telescopic cylinder layout diagram 001615457A0006000 Rear horizontal telescopic cylinder layout diagram 001615457A0007000 Hydraulic schematic diagram of boom 001615450A0000000 Oil suction filter 1010600435 Multi-way valve assembly (six-in-one) 001607150A0010000 Terminal block 1010300584 Boom layout diagram 001615449A0000000 One-section arm cloth tube diagram 001615449A0001000 Two-section arm cloth tube diagram 001615449A0002000 Three-section arm cloth tube diagram 001615449A0003000 One-section arm cylinder layout diagram 001615449A0004000 Two-section arm cylinder layout diagram 001615449A0005000 Three-section arm cylinder layout diagram 001615449A0006000 Four-section arm cylinder layout diagram 001615449A0007000 Cleaning system 001692505A0000000 Lubrication system 001692401A0000000 Pneumatic lubrication pump set 1070000000 Mesh filter 1010600044 Chassis wiring harness 001600027309B3A00 Chassis signal adapter wiring harness 001600027160A3B00 Multi-way valve wiring harness 001600027303J3A00 Main valve block wiring harness 001600027304L3A00 Wiring harness near the turntable 001600027305A3D00 Wiring harness near hopper 001600027306E3A00 Outrigger control box wiring harness 001600027301B3C00 Small support wiring harness 001600027315D3A00 Remote control and bus wiring harness 001600027302G3A00 Filter element and sensor wiring harness 001600027307G3A00 Proximity switch wiring harness 001600027313B3A00 Pneumatic lubrication arm limit wiring harness 001600027314B3B00 Fan level wiring harness 001600027316A3C00 Boom electric flute wiring harness 001600027321A3A00 Boom height indicator wiring harness 001600027322A3B00 Outrigger operation box and integrated control box 001615427330A1AT2 Encoder and sensor 001615427330A1AT3 Proximity switch 001615427330A1AT4 Limit switch 001615427330A1AT5 Valve block assembly 001615427330A1AT6 Pump truck lamps, electric flute assembly 001615427330A1AT7 Main control cabinet 001615427330A1AT8 Remote control 0016RMD1020201126

1

1

2

3

4

5

6

7

8

9

10

11

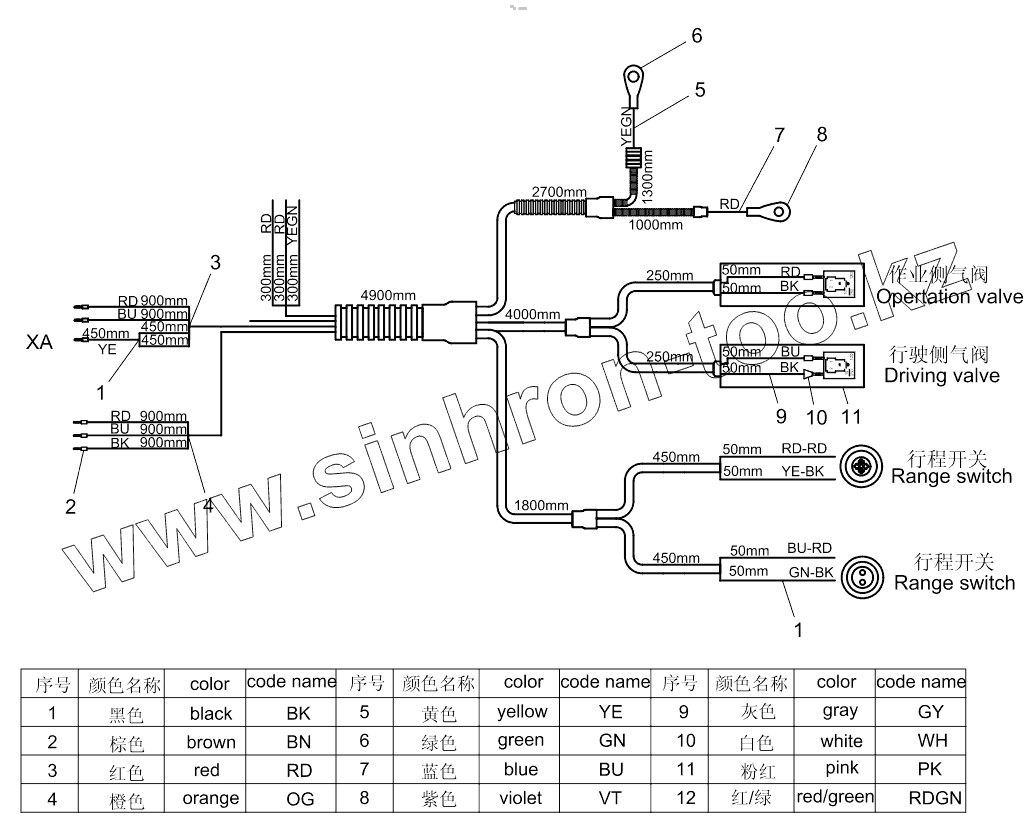

Позиция на иллюстрации	Заводской номер детали		Название детали
1	1022200774		Connector
2	1022200009		Terminal
3	1020701033		Cable
4	1020701031		Cable
5	1022303096		Cable
6	1022258125		Line nose
7	1022305008		Wire
8	1020700251		Terminal
9	1022305056		Cable
10	1029900079		Gprs positioning lock
11	1022200006		Valve plug
