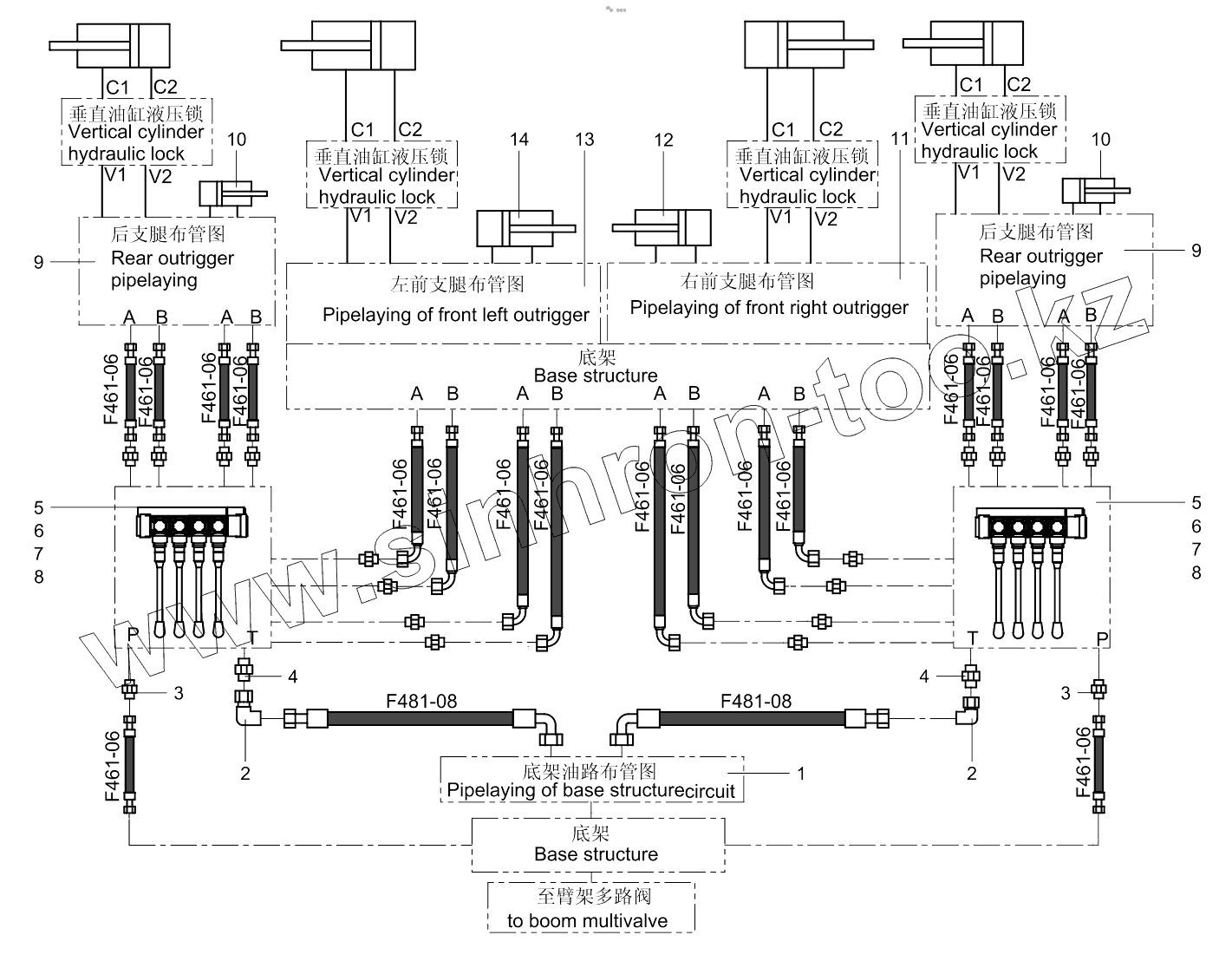

Позиция на иллюстрации
Заводской номер детали
Название детали
1
001615457A0001000
Chassis oil circuit layout diagram
2
1140101478
Right angle built-up joint
3
1140101462
End straight coupling
4
1140101465
End straight coupling
5
001607157A0000002
Outrigger multi-way valve mounting plate
6
1040100060
Screw
7
1040300230
Washer
8
1040200192
Nut
9
001615457A0004000
Rear outrigger cloth tube diagram
10
001615457A0007000
Rear horizontal telescopic cylinder layout diagram
11
001615457A0003000
Right front outrigger cloth tube diagram
12
001615457A0006000
Right front horizontal telescopic cylinder layout diagram
13
001615457A0002000
Left front outrigger cloth tube diagram
14
001615457A0005000
Left front horizontal telescopic cylinder layout diagram
