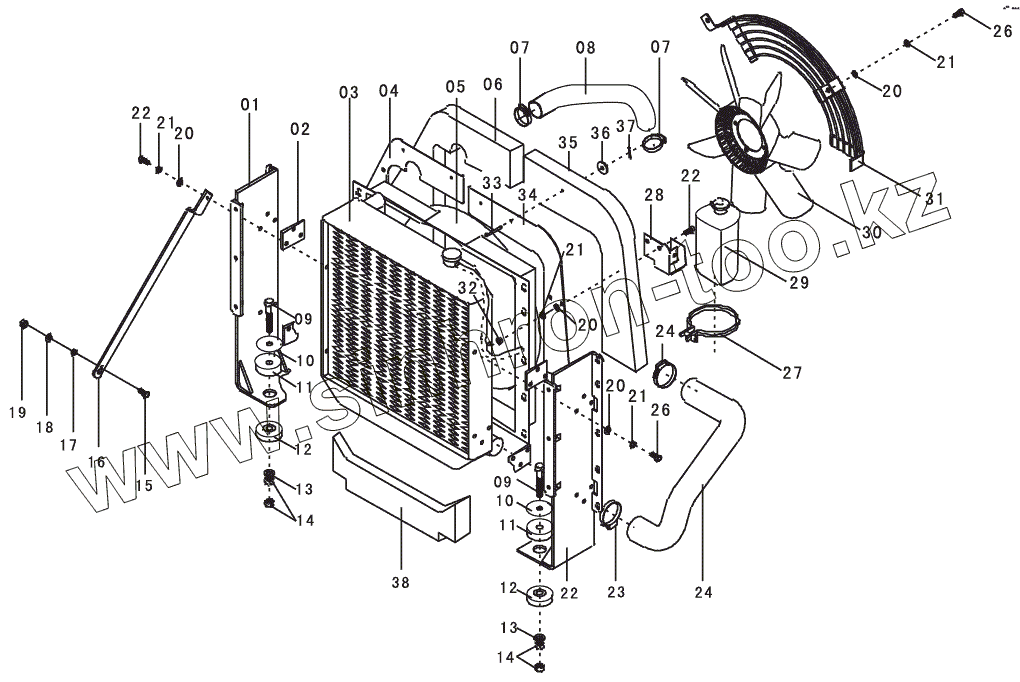

Каталог запасных частей к технике: Yuchai YC55. COOLING SYSTEM
1
2
3
4
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
19
20
20
20
20
21
21
21
21
22
22
23
24
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 850-1203200 | Radiator right support | |
| 2 | 850-1203015 | Rubber pad | |
| 3 | 850-1203001 | Radiator | |
| 4 | 850-1203009 | Right support | |
| 5 | 850-1201014 | Fan guide | |
| 6 | 850-1201011 | Right heat-insulation spacer | |
| 7 | JB/ZQ3777 | Hoop | |
| 8 | 850-1203002 | Upper water pipe | |
| 9 | GB/T5782 | Bolt | |
| 10 | 850-1203006 | Washer | |
| 11 | 850-1203005 | Upper absorber | |
| 12 | 850-1203004 | Lowr absorber | |
| 13 | GB/T97.1 | Washer | |
| 14 | GB/T6170 | Cotter pin | |
| 15 | GB/T5783 | Bolt | |
| 16 | 850-1203016 | Knighthead | |
| 17 | GB/T97.1 | Washer | |
| 18 | G B/T 93 | Washer | |
| 19 | GB/T6170 | Cotter pin | |
| 20 | GB/T97.1 | Washer | |
| 21 | G B/T 93 | Washer | |
| 22 | GB/T5783 | Bolt | |
| 23 | 850-1203100 | Radiator left support | |
| 24 | J B/ZQ 3777 | Staple bolt | |
| 25 | 850-1203003 | Lower water pipe | |
| 26 | GB/T5783 | Bolt | |
| 27 | J B/ZQ 3777 | Staple | |
| 28 | 850-1203400 | Bracket | |
| 29 | 830-1201015 | Balancing container | |
| 30 | 850-1203013 | Fen | |
| 31 | 850-1203300 | Fender | |
| 32 | GB/T B6170 | Nut | |
| 33 | GB/T91 | Shaft pin | |
| 34 | 850-1203007 | Left heat-insulation spacer | |
| 35 | 850-1203008 | Spacer | |
| 36 | 830-1201013 | Pin | |
| 37 | 830-1201012 | Lower heat-insuulation spacer | |
| 38 | 850-1203012 | Lower insulation pad |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
