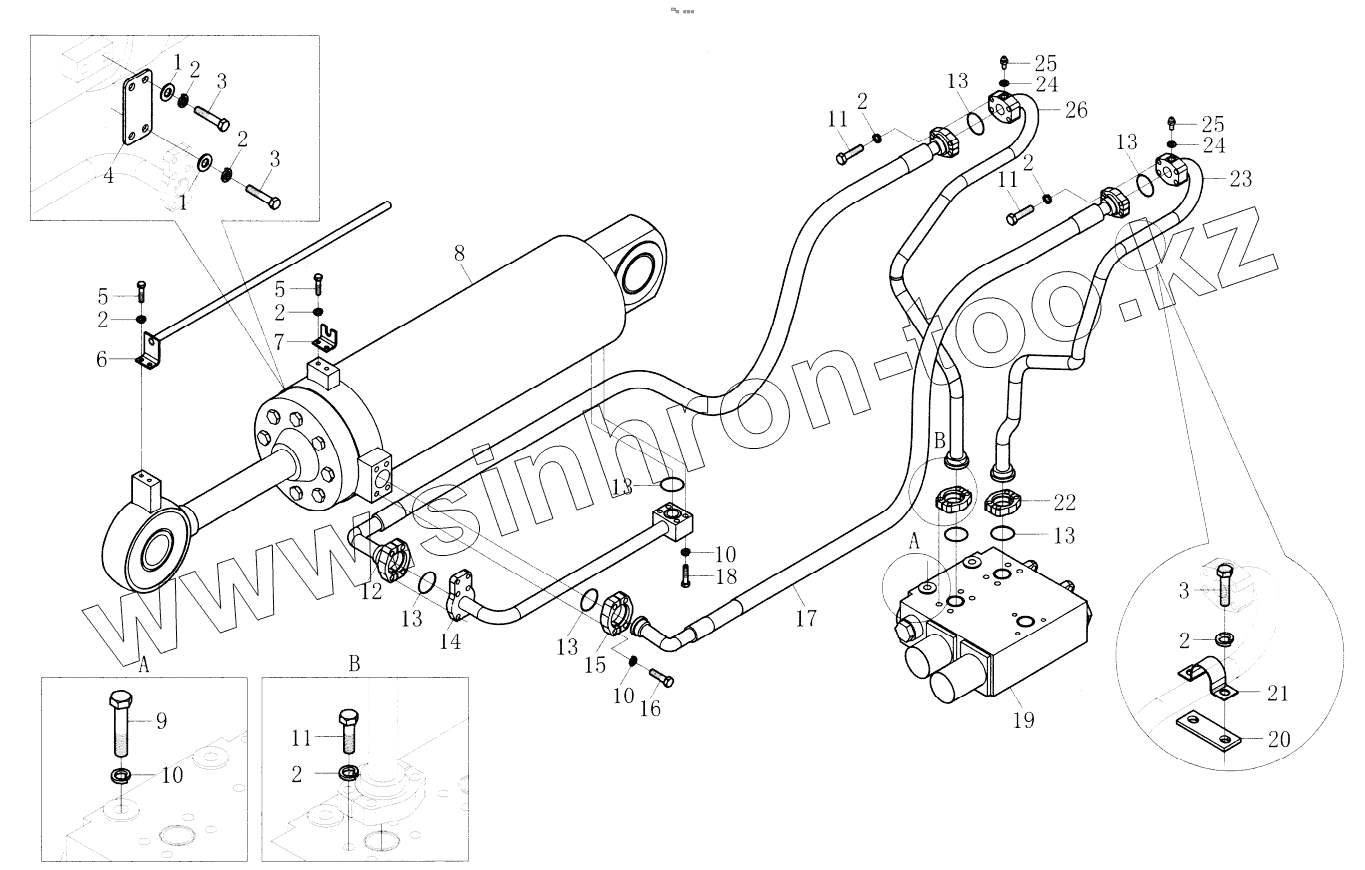

Каталог запасных частей к технике: YTO ZL50F. Working Device Hydraulic System
1
1
2
2
2
2
2
2
2
2
3
3
3
4
5
5
6
7
8
9
10
10
10
11
11
11
12
13
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T97.1-1985 | Washer 20 | |
| 2 | GB/T93-1987 | Washer 12-Zn.D | |
| 3 | GB/T5783-2000 | Bolt M12x40-Zn.D | |
| 4 | ZL50F.13-6 | Joint borad | |
| 5 | GB/T5783-2000 | Bolt M12x40-Zn.D | |
| 6 | ZL50F.13.20 | Rodman pole assy | |
| 7 | ZL50F.13-14 | Rodman seat board | |
| 8 | ZL50F.13.18 | Turning oil tank | |
| 9 | GB/T5782-2000 | Bolt M8x65-Zn.D | |
| 10 | GB/T93-1987 | Washer 12-Zn.D | |
| 11 | GB/T70.1-2000 | Screw М10х30-Zn.D | |
| 12 | ZL50F.13.16 | Hose pipe assy | |
| 13 | GB/T3452.1-1992 | O sealing ring 15x1.8 | |
| 14 | ZL50F.13.12 | Turning pipe | |
| 15 | ZL50F.13-12 | Flange | |
| 16 | GB/T70.1-2000 | Screw М10х30-Zn.D | |
| 17 | ZL50F.13.17 | Hose pipe assy | |
| 18 | GB/T5782-2000 | Bolt M8x65-Zn.D | |
| 19 | DF32.2C | Multi-valve | |
| 20 | ZL50F.13-3 | Washer | |
| 21 | ZL50F.13-11 | Clamp | |
| 22 | ZL50F.13-7 | Flange | |
| 23 | ZL50F13.13 | Steel pipe | |
| 24 | JB982-1977 | Washer 22 | |
| 25 | JB/ZQ4450-1986 | Screw plug M14x1.5-Zn.D | |
| 26 | ZL50F.13.14 | Steel pipe assy | |
| 27 | GB5783-2000 | Screw M10x35-Zn.D | |
| 28 | GB/T97.1-1985 | Washer 20 | |
| 29 | GB/T1152-1989 | Grease nipple M10x1 | |
| 30 | ZL50F.13.15 | Pin shaft assy | |
| 31 | ZL50F.13.24 | Swing arm oil tank | |
| 32 | GB/T3452.1-1992 | O sealing ring 15x1.8 | |
| 33 | ZL50F.13.10 | Steel pipe assy | |
| 34 | GB/T3452.1-1992 | O sealing ring 15x1.8 | |
| 35 | ZL50F.13.11 | Steel pipe assy | |
| 36 | ZL50F.13.19 | Hose pipe assy | |
| 37 | ZL50F.13.6 | Hose pipe assy | |
| 38 | ZL50F.13.2 | Valve oil returning pipe | |
| 39 | GB1235-1976 | O-ring Ф40Х3.1 | |
| 40 | ZL50F.13.3 | Steel pipe assy | |
| 41 | ZL50F.13.4 | Steel pipe assy | |
| 42 | ZL50F.13.9 | Steel pipe assy | |
| 43 | GB/T5783-2000 | Bolt M12x40-Zn.D | |
| 44 | ZL50F.13.5 | Hose pipe assy | |
| 45 | GB/T6170-2000 | Nut M10 | |
| 46 | ZL50F.13-5 | Bend board | |
| 47 | ZL50F.13.8 | Steel pipe assy | |
| 48 | ZL50F.13-16 | U bolt | |
| 49 | GB/T3452.1-1992 | O sealing ring 15x1.8 | |
| 50 | ZL50F.13-10 | Flange | |
| 51 | GB/T3452.1-1992 | O sealing ring 15x1.8 | |
| 52 | ZL50F.13.7 | Steel pipe assy | |
| 53 | JK-50-70 | Clamp | |
| 54 | ZL50F.13-13 | Oil inlet pipe | |
| 55 | GB/T5782-2000 | Bolt M8x65-Zn.D | |
| 56 | ZL50F13.21 | Locking clamp | |
| 57 | GB97.1-1985 | Flat washer 8-140HV-Zn.D | |
| 58 | GB/T5782-2000 | Bolt M8x65-Zn.D | |
| 59 | ZL50F.13.22 | Hose pipe assy | |
| 60 | ZL50F.13.23 | Hose pipe assy | |
| 61 | GB/T3452.1-1992 | O sealing ring 15x1.8 | |
| 62 | GB/T5782-2000 | Bolt M8x65-Zn.D | |
| 63 | ZL50F.13-8 | Tie-in | |
| 64 | CBGq3100A | Gear pump | |
| 65 | ZL50F.13-9 | Sealing washer | |
| 66 | JB999-1977 | Bolt M24x1.5x50 | |
| 67 | JB982-1977 | Washer 22 | |
| 68 | ZL50F.13-15 | Clamp | |
| 69 | GB/T5783-2000 | Bolt M12x40-Zn.D | |
| 70 | GB/T6170-2000 | Nut M10 | |
| 71 | Joint fork | Joint fork | |
| 72 | ZL50F.13.1 | Locking board | |
| 73 | Hose shaft | Hose shaft | |
| 74 | ZL50F.13.1 | Locking board | |
| 75 | GB/T5783-2000 | Bolt M12x40-Zn.D | |
| 76 | ZL50F.13-1 | Board | |
| 77 | ZL50F.13-2 | Board | |
| 78 | ZL50F.13-4 | Dust protecting cover | |
| 79 | СВ/Т5783-1986 | Bolt M6x12-Zn.D | |
| 80 | GBT93-1987 | Washer 6-Zn.D | |
| 81 | Control hose shaft assy | Control hose shaft assy | |
| 82 | GB/T5783-1986 | Bolt M10x35-Zn.D | |
| 83 | GB/T93-1987 | Washer 12-Zn.D |
