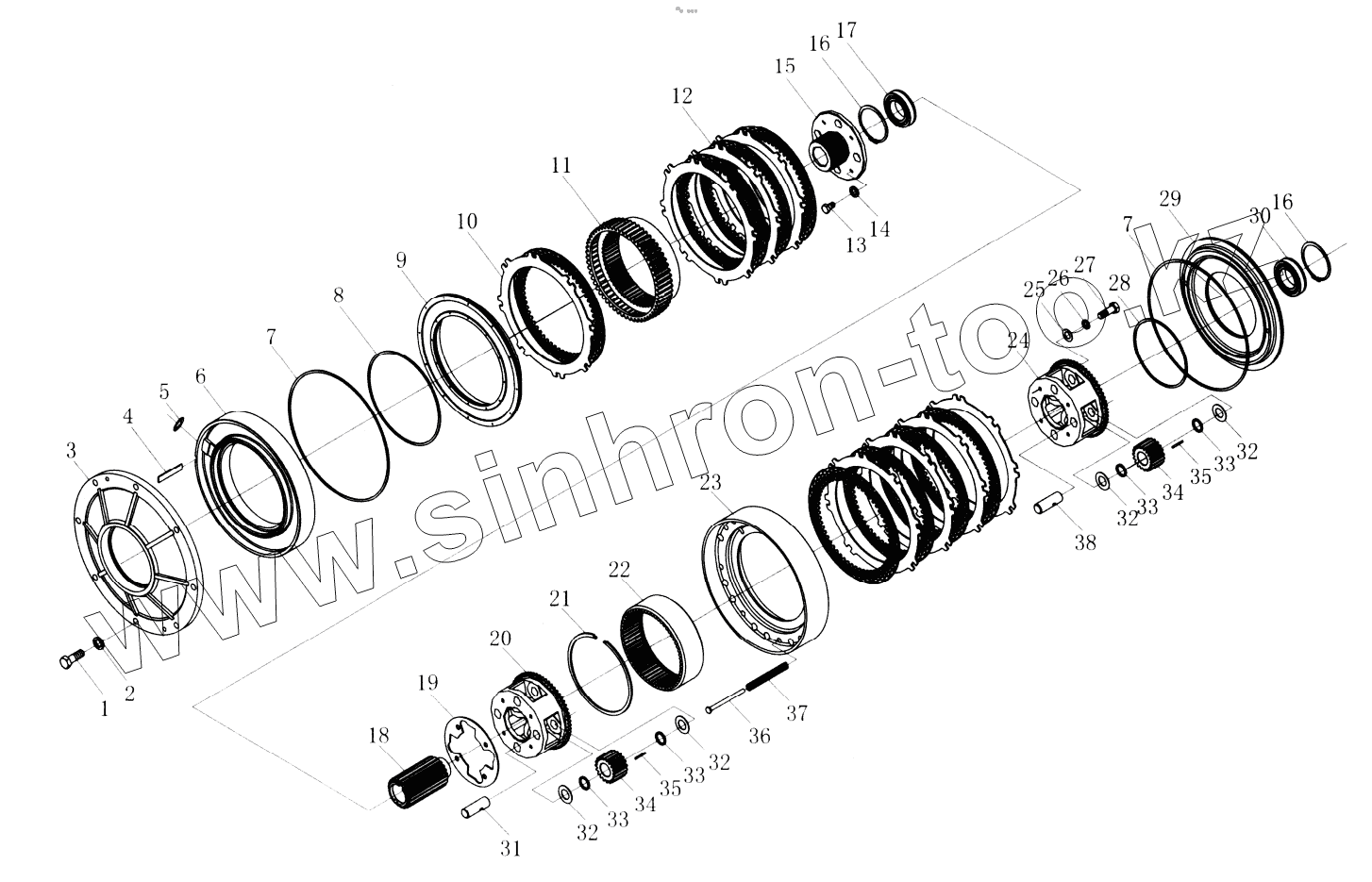

Каталог запасных частей к технике: YTO ZL50F. Gearbox (VI) Planetary set
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
32
33
33
33
33
34
34
35
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB5783-86 | Bolt M14x40 | |
| 2 | GB93-87 | Washer 14 | |
| 3 | 403003A | Central cover | |
| 4 | 403023 | Locking board | |
| 5 | GB1235-76 | O ring 103x5.7 | |
| 6 | 403004 | 1st oil container | |
| 7 | 403006A | Outer sealing ring | |
| 8 | 403010A | Inner sealing ring | |
| 9 | 403008A | 1st piston | |
| 10 | 403222 | 1st inner gear | |
| 11 | 403012-013 | Reverse 1st driving assy | |
| 12 | 403011 | Reverse 1st driven | |
| 13 | GB5783-86 | Bolt M10x30 | |
| 14 | GB93-87 | Washer 10 | |
| 15 | 403225 | Direct connecting plate | |
| 16 | GB894.1-86 | Retaining ring 90 | |
| 17 | GB277-89 | Ball bearing | |
| 18 | 403226 | Sun wheel | |
| 19 | 403224 | Brake piece | |
| 20 | 403223 | 1st epicyclic support | |
| 21 | 403220 | Clamp | |
| 22 | 403216 | Reverse inner gear | |
| 23 | 403014-15 | Friction separation suport assy | |
| 24 | 403213 | Reverst epicyclic support | |
| 25 | 403215 | Brake washer | |
| 26 | GB93-87 | Washer 8 | |
| 27 | GB5783-86 | Bolt M8x14 | |
| 28 | 403020A | Inner sealing ring | |
| 29 | 4030218A | Reverse piston | |
| 30 | GB276-89 | Ball bearing 110 | |
| 31 | 403227 | 1st epicyclic shaft | |
| 32 | 403217 | Washer | |
| 33 | 403219 | Sapcer | |
| 34 | 403218 | planetary wheel | |
| 35 | GB309-84 | Roller 4x35 | |
| 36 | 403016 | Spring pin shaft | |
| 37 | 403017 | Spring | |
| 38 | 403221 | Reverse epicyclic shaft |
