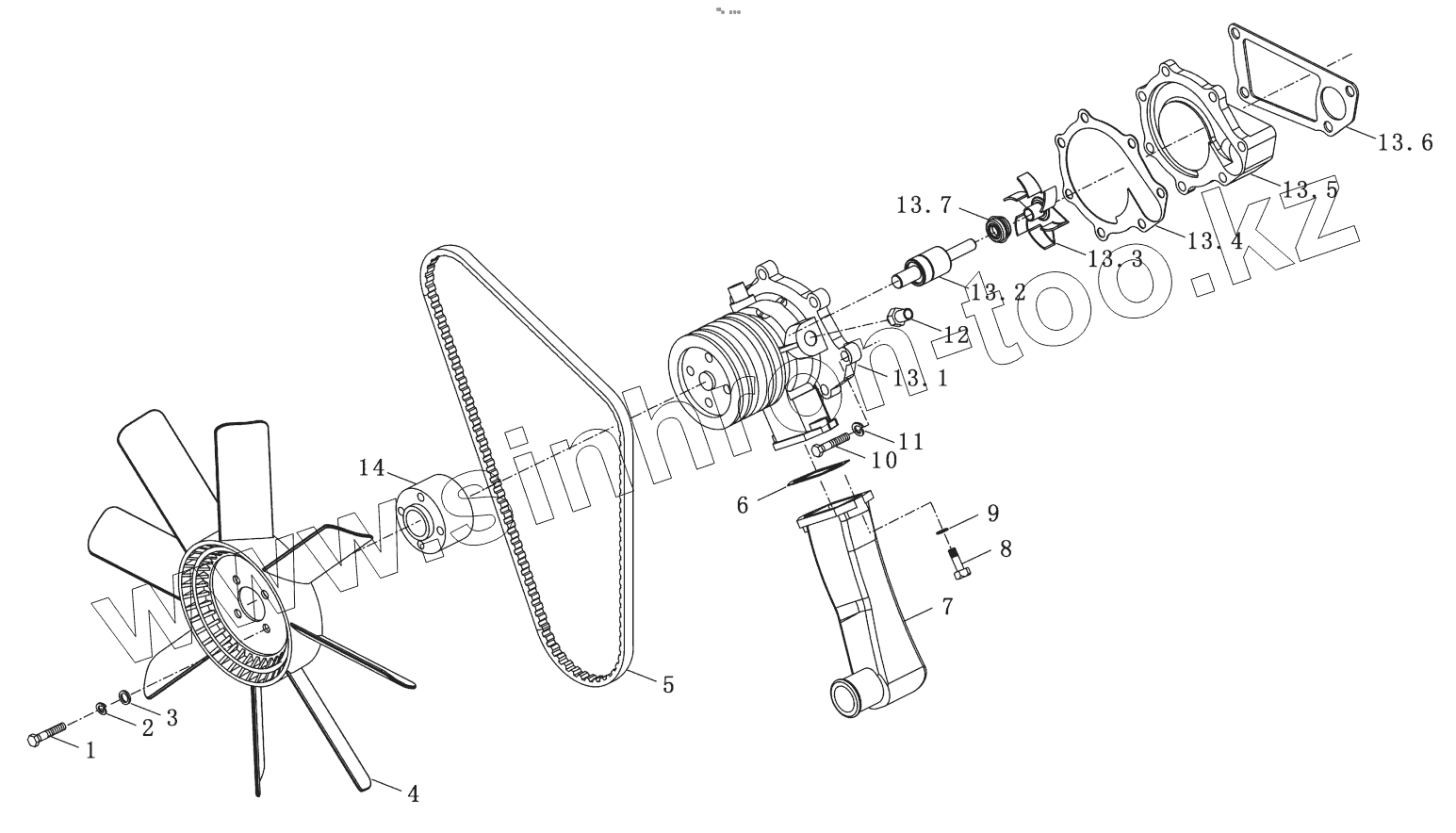

Water Pump and Fan Assy
Thermostat Assy
Starter Installation Assy
Alternator and Bracket Assy
Alternator and Bracket Assy
Air Compressor Installation Assy
1
2
3
4
5
6
7
8
9
10
11
12
13.1
13.2
13.3
13.4
13.5
13.6
13.7
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
GB22
Bolt M10x85-8.8-Zn.D
2
GB/T93
Spring washer 8
3
GB/T848
Washer 10-140HV-Zn.D
4
Z-530-42-64-10
Fan assy
5
AV1425LI
Leather belt
6
6RZWT1.510205
Water pump inlet pipe gasket
7
6M5-T76.510001
Water pump inlet pipe
8
GB21
Bolt M10x20-8.8-Zn.D
9
GB/T93
Spring washer 8
10
GB21
Bolt M10x20-8.8-Zn.D
11
GB/T93
Spring washer 8
12
1.86.324/5147324
Heating water return connector
13
6M5-T76.510000
Water pump assy
13.1
6RZWT1.510202FE
Pump body
13.2
WR2040152
Shaft even bearing
13.3
6RZWT1.510206FE
Impeller
13.4
6RZWT1.510207
Bedding face gasket
13.5
6RZWT1.510208
Pump cover
13.6
3R.510007
Gasket water pump read cover
13.7
1307010-3CK-05
Seal assembly
14
6M5-T76.520001
Fan Cushion Blocking
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
