Каталог запасных частей к технике: YTO X1204. Two-piece valve assembly
1
1
1
1
1
2
2
2
2
2
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
9
10
11
12
12
13
13
14
14
15
15
16
16
17.1
17.1
17.2
17.2
17.3
17.3
18
18
19
19
20
20
22
22
23
23
24
24
24
25
25
26
26
27
27
28
29
30
31
32
33
33
34
35
36
36
36
36
37
37
38
39
40
40
41
41
41
41
41
42
43
43

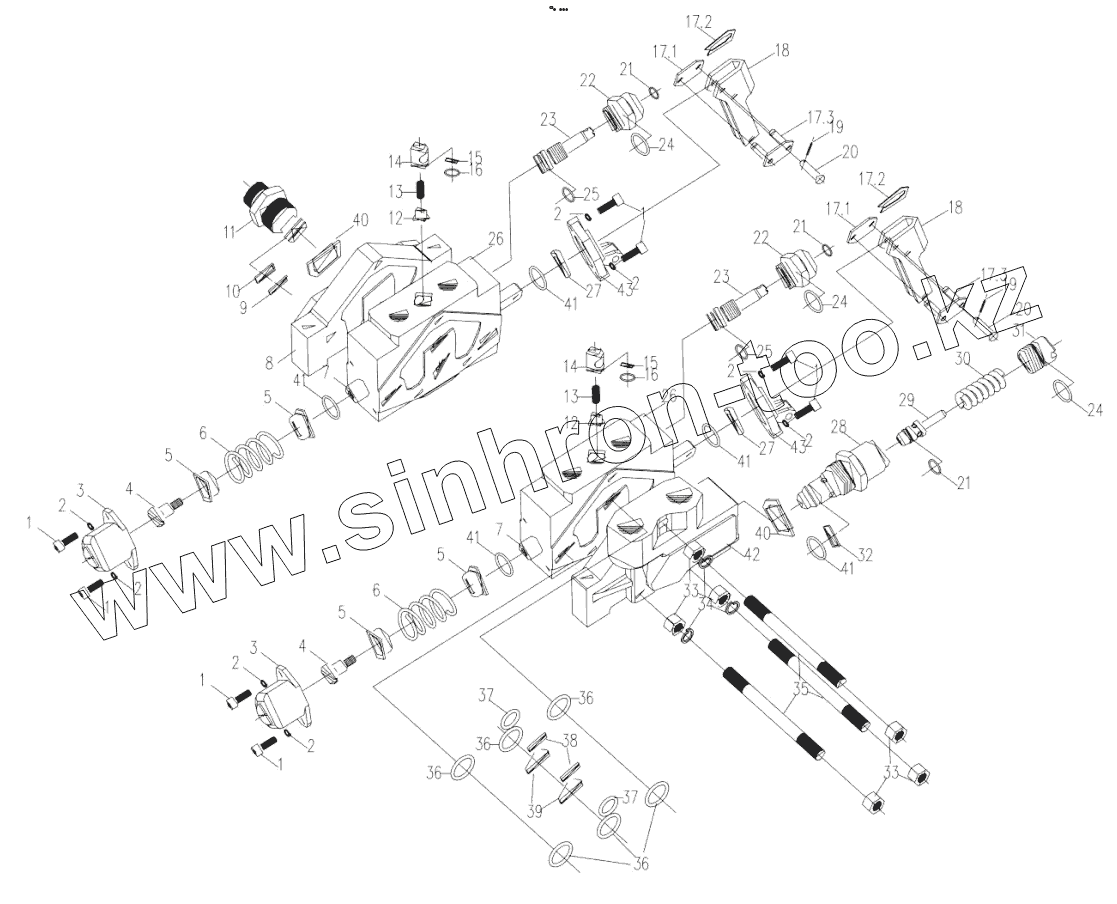

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB70-85 | Screw M5x16 | |
| 2 | GB848-85 | Washer 5-140HVZn.D | |
| 3 | DLF/50-1P-208 | Spring cup | |
| 4 | DLF/50-1P-205 | Screw, spool valve | |
| 5 | DLF/50-1P-206 | Seat, spring | |
| 6 | DLF/50-1P-207 | Spring, spool valve | |
| 7 | DLF/50-1P-203 | Rod, three-position valve | |
| 8 | DLF/50-1P-204 | Cover (RR) | |
| 9 | GB3452.1-82 | O-ring 71x3.55 | |
| 10 | DLF/50-1P-007 | Retainer ring, seat, oil outlet | |
| 11 | DLF/50-1P-006 | Seat, oil outlet | |
| 12 | DLF/50-1P-210 | Body, one-way valve | |
| 13 | DLF/50-1P-213 | Spring, one-way valve | |
| 14 | DLF/50-1P-212 | Seat, spring, check valve | |
| 15 | DLF/50-1P-211 | Retainer ring, seat, spring, check valve | |
| 16 | GB3452.1-82 | O-ring 71x3.55 | |
| 17.1 | DLF/50-1P-003 | Stopper | |
| 17.2 | DLF/50-1P-002 | Locking plate | |
| 17.3 | DLF/50-1P-301 | Retainer | |
| 18 | DLF/50-1P-001 | Control fork | |
| 19 | GB91-86 | Cylindrical pin B5x20 | |
| 20 | GB882-86 | Shaft, Pin B10x32-Zn.D | |
| 22 | DLF/50-1P-215 | Single and double acting adjusting seat | |
| 23 | DLF/50-1P-214 | Single and double acting adjuster lever | |
| 24 | GB3452.1-82 | O-ring 71x3.55 | |
| 25 | GB3452.1-82 | O-ring 71x3.55 | |
| 26 | DLF/50-1P-209 | Housing, three-position valve | |
| 27 | DLF/50-1P-201 | Scraper seal | |
| 28 | DLF/50-1P-101 | Seat, safety valve | |
| 29 | DLF/50-1P-102 | Core, safety valve | |
| 30 | DLF/50-1P-104 | Spring, relief valve | |
| 31 | DLF/50-1P-103 | Adjusting block, spring | |
| 32 | DLF/50-1P-106 | Retainer ring, safety valve | |
| 33 | GB6170-86 | Nut M10x1 | |
| 34 | GB859-87 | Washer 10 | |
| 35 | GB901-88 | Bolt M10x1-8.8L=160 | |
| 36 | GB3452.1-82 | O-ring 71x3.55 | |
| 37 | GB3452.1-82 | O-ring 71x3.55 | |
| 38 | DLF/50-1P-009 | Small retainer ring, three-position valve | |
| 39 | DLF/50-1P-008 | Retainer ring, three-position valve | |
| 40 | JB982-77 | Washer 14-Zn.D | |
| 41 | GB3452.1-82 | O-ring 71x3.55 | |
| 42 | DLF/50-1P-005 | Cover (FR) | |
| 43 | DLF/50-1P-202 | Support, control lever |
