5. Transmission case assembly (RR)

Каталог запасных частей к технике: YTO X1204. Transmission case assembly (RR)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано KC125 Мост X1204 (2013) ZL50F

Схема > Не выбрано Air cleaner assembly Muffler assembly Oil cooler and line assembly Installed radiator assembly Throttle control mechanism-choke Clutch assembly Clutch assembly Carrier (FR)-ballast bracket assembly (FR) Front axle assembly Front axle assembly Front axle assembly Front axle assembly Front axle assembly Front axle assembly Front drive assembly Rear drive assembly Tilting drawbar Transmission case assembly Transmission case assembly Transmission case assembly Transmission case assembly Transmission case assembly (FR)-cooling & lubrication systems Transmission case assembly (RR) Transmission case assembly (RR) Transmission case assembly (RR)-differential assembly Transmission case assembly (RR)-differential lock & control Transmission case assembly (RR)-differential lock hydraulic disengaging mechanism Final drive assembly (LH/RH) Steering box assembly Hydraulic steering gear-steering system oil pipes 540/1,000 r/min PTO assembly 540/1,000 r/min PTO assembly PTO shaft control mechanism Transfer case assembly Transfer case assembly Propeller shaft and guard assembly Service brake control mechanism oil tank & lines (with air brake) Service brake pedal control mechanism Service brake Service brake pump Parking brake assembly Driver’s seat Cab Rear window assembly Door assembly (LH/RH) Side window assembly (LH/RH) Rear hood Hood Hood Step & suspension assembly Starting cables, battery tray & fixture Electrical equipment & instrumentation-lighting system Electrical equipment & instrumentation-electrical system harnesses Electrical equipment & instrumentation-electrical system control components Electrical equipment & instrumentation-electrical system accessories Fuel system Lifter assembly with auxiliary cylinder-hydraulic lifter housing Lifting device assembly with auxiliary cylinder-lifting device cylinder piston, lifting device shaft and force transmission mechanism Lifter assembly with 2 auxiliary cylinders Auxiliary cylinder Lifter assembly with auxiliary cylinder-distributor assembly Lifter assembly with auxiliary cylinder-distributor control mechanism Lifter assembly with auxiliary cylinder-distributor control mechanism Lifter assembly with auxiliary cylinder-distributor control mechanism Lifter assembly with auxiliary cylinder-load control assembly Lifter assembly with auxiliary cylinder-lifter control mechanism Lifter assembly with auxiliary cylinder-lifter control mechanism Lifter assembly with auxiliary cylinder-lifter control mechanism Lifter assembly with auxiliary cylinder-lifter control mechanism Suspension mechanism Suspension mechanism Suspension mechanism Fuel tank assembly Hydraulic line assembly Lubrication and cooling system assembly Two-piece multi-way valve & control Two-piece valve assembly Trailer brake system Heating & ventilation systems & heating piping Signs & decals Installed air cleaner assembly (optional desert air cleaner) Front driving wheel assembly Rear driving wheel assembly Hitch bar assembly (optional) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR)-cooling & lubrication systems (without power train cooler) Transmission case assembly (RR)-differential assembly (optional for four planet gear arrangement) Transmission case assembly (RR)-differential lock mechanical disengaging mechanism (optional) 540/720 r/min PTO assembly 540/720 r/min PTO assembly 540/720 r/min PTO assembly Driver’s seat Service brake control mechanism oil tank & lines (without air brake) ROPS assembly (optional) Canopy assembly (optional) Installed air cleaner assembly (optional ROPS) Lighting system (optional ROPS) Electrical equipment & instrumentation-electrical system harnesses (optional ROPS) Front mud guard Three-piece multi-way valve & control Air conditioning system assembly Signs & decals (in Spanish) Cylinder Head Assy Cylinder Head Assy Cylinder Head Assy Cylinder Block Assy Cylinder Block Assy Cylinder Block Assy Camshaft Assy Crankshaft And Flywheel Assy Piston and Conne Assy Gear Train Assy Sump Assy Timing Gear Chamber Assy Oil seal shell after Assy Cylinder Head Hood Assy Crankcase Ventilation Assy Intake Tube Assy Intake Tube Assy Exhaust Tube Assy Fuel Injection Pump Installation assy Assy Fuel Injection Pump Installation assy Assy Fuel Injection Pump Installation assy Assy Fuel Injector Assy Fuel Filter Installation Assy Fuel Filter Installation Assy Fuel Injection Pipes Assy Fuel Low Pressure Pipes Installation Assy Oil Pump Installation Assy Oil Suction Strainer Assy Oil Filter Assy Water Pump and Fan Assy Thermostat Assy Starter Installation Assy Alternator and Bracket Assy Alternator and Bracket Assy Air Compressor Installation Assy

18

19

20

21

22

23

24

25

26

27

28

29

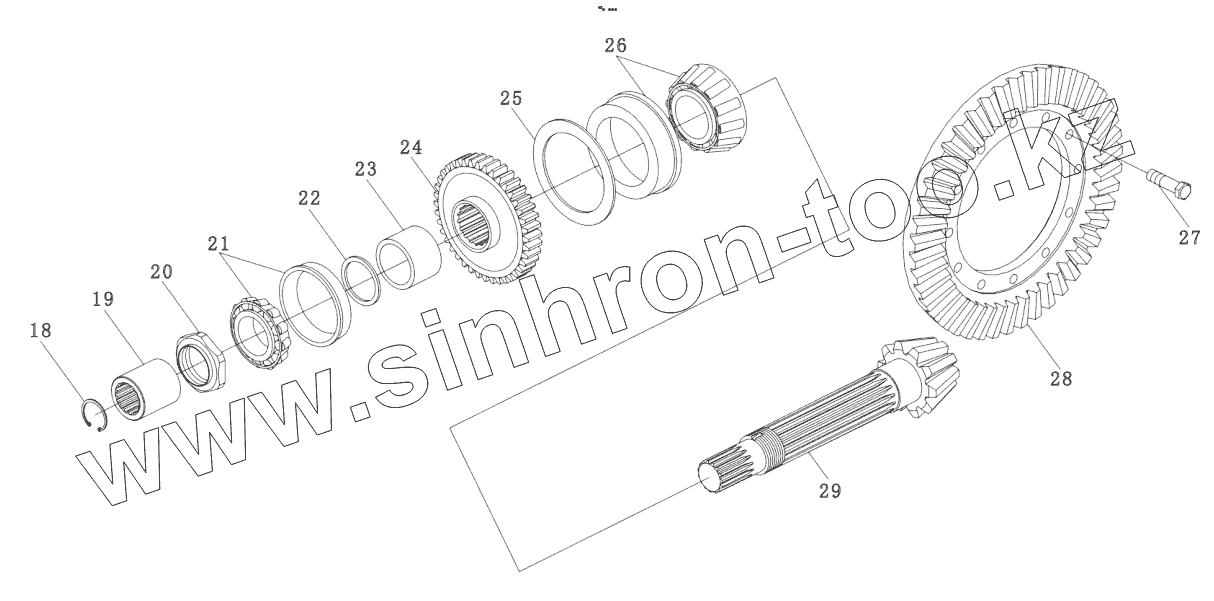

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4985062/1.21.071		Dowel pin
2	1204.38.101		Housing, transmission case (RR)
3	4984020/1.32.022		Adjusting shim, differential
4	4993580/1.32.003		Bearing seat (RH), carrier, differential
5	10158900/14520		Core plug 22
6	GB 5785-86		Bolt M12x1.25x100
7	1204.38.102		Cover (UPR), transmission case (RR)
8	10839710/12507		Dowel pin D=10
9	14457580/14618		O-ring 20.29x2.62
10	594832/1.21.066		Bushing, oil seal
11	14233624/10357/04		Self-locking bolt M10x1.25x30
12	4993579/1.32.004		Bearing seat (LH), carrier, differential
13	5109869/1.21.073		Dowel pin, Transmission case housing & knee housing
14	5110200/1.21.065		Dowel pin, Transmission case housing & half axle housing
15	5128095/1.21.066A		Bushing, oil seal, shaft, PTO
16	10263460/14607		Rectangular cross-section seal washer 22x28x1.5
17	885118991/1.21.030A		Magnetic drain plug unit
18	GB 893.1-86		Retaining ring 80
19	1204.38.106		Sleeve
20	885111377/1.32.148		Nut, driven shaft, M50x1.5
21	4984781/1.32.138B		Bearing (FR), bevel gear 50.8x101.498x24.608
22	4984175/1.32.136		Adjusting shim, bearing
23	1204.38.108		Spacer sleeve, bevel pinion
24	1204.38.107SZ		Driving gear, PTO
25	5128734/1.32.137		Adjusting shim
26	5128721/1.32.139		Bearing (RR), bevel pinion 55x120x45.5
27	GB 5785-86		Bolt M12x1.25x100
28	1204.38.104-1SZ		Bevel gear wheel
29	1204.38.103-1SZ		Shaft, bevel pinion
30	GB 5785-86		Bolt M12x1.25x100
31	GB/T 297-2000		Tapered roller bearing
32	GB/T 297-2000		Tapered roller bearing
