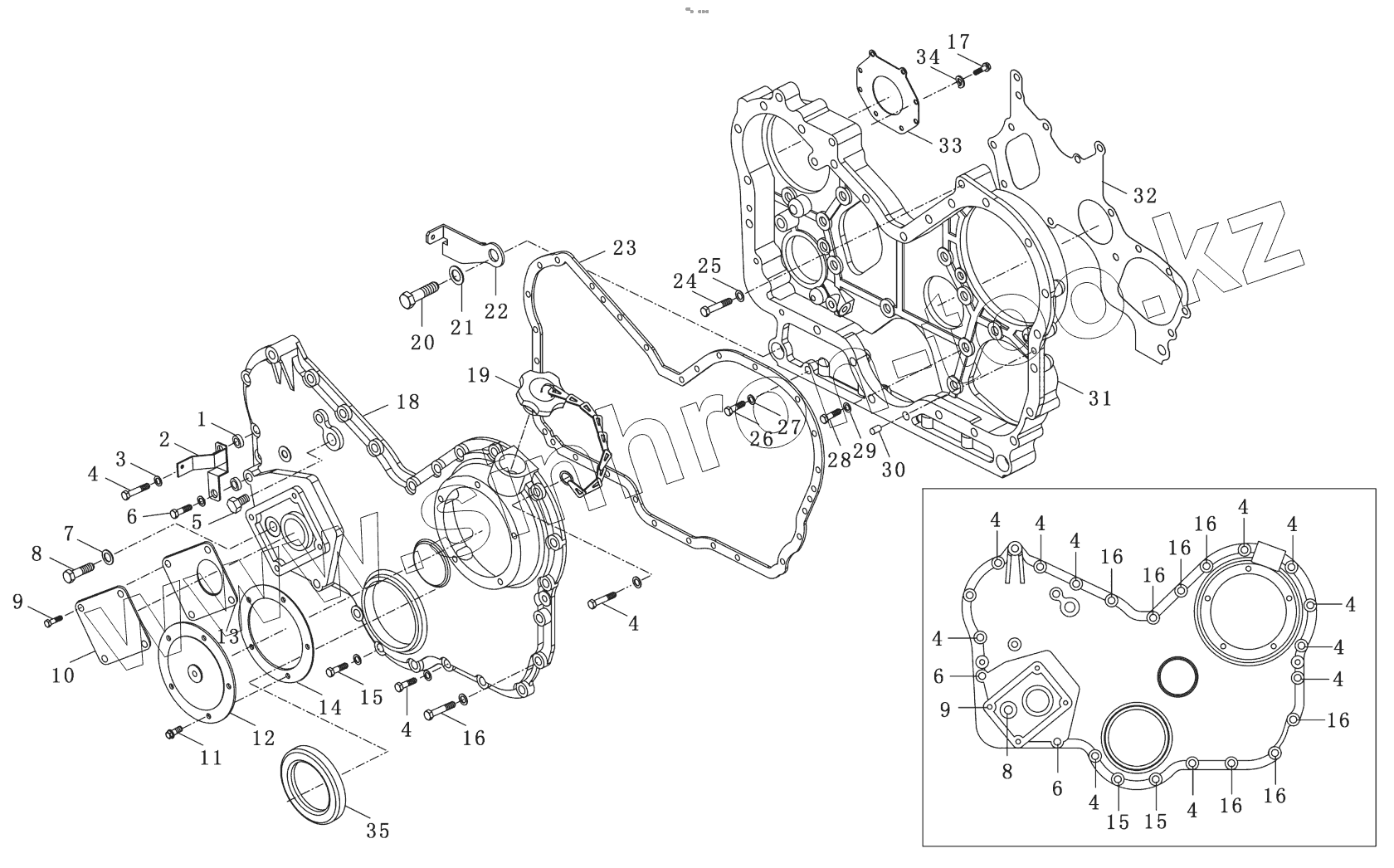

Каталог запасных частей к технике: YTO X1204. Timing Gear Chamber Assy
1
2
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
6
6
6
7
8
8
9
9
10
11
12
13
14
15
15
15
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | RT.620005FE | Block | |
| 2 | 6M5-T76.460050 | Tubing support fitting | |
| 3 | GB/T848 | Washer 10-140HV-Zn.D | |
| 4 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 5 | 4RG3.080102 | Screw plug | |
| 6 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 7 | GB/T848 | Washer 10-140HV-Zn.D | |
| 8 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 9 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 10 | RT.060028 | Hydraulic pump cover | |
| 11 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 12 | R.080004-1 | Gasket, inspection hole cover | |
| 13 | LRT.060029 | Gasket, hydraulic pump | |
| 14 | R.080005 | Gasket, tirning gear chamber | |
| 15 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 16 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 17 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 18 | 3RTF.080101-1 | Timing gear chamber cover | |
| 19 | R.080300 | Cover, oil filler | |
| 20 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 21 | GB97 | Washer 16-140HV-Zn.D | |
| 22 | 5149037FE | Tubing support | |
| 23 | RT.080003 | Gasket, timing gear chamber cove | |
| 24 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 25 | GB/T848 | Washer 10-140HV-Zn.D | |
| 26 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 27 | GB/T848 | Washer 10-140HV-Zn.D | |
| 28 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 29 | GB/T848 | Washer 10-140HV-Zn.D | |
| 30 | GB/T119.2 | Pin M8x16 | |
| 31 | RT.080001-2 | Timing gear chamber | |
| 32 | RT.080002 | Gasket, timing gear chamber | |
| 33 | R.080011 | Gasket, aircornpressor | |
| 34 | GB/T93 | Spring washer 8 | |
| 35 | LR.080150 | Reinforced oil seal 65x90x12 |
