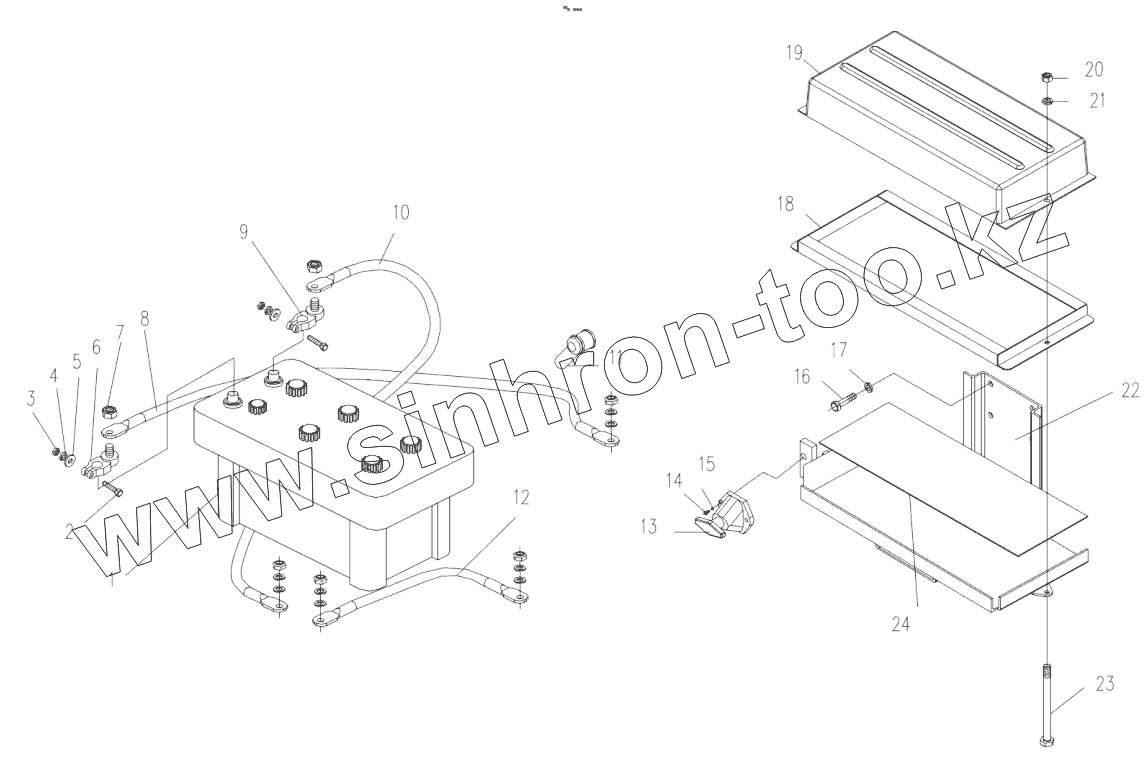

Starting cables, battery tray & fixture
Каталог запасных частей к технике: YTO X1204. Starting cables, battery tray & fixture
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
KC125 Мост
X1204 (2013)
ZL50F
Схема
>
Не выбрано
Air cleaner assembly
Muffler assembly
Oil cooler and line assembly
Installed radiator assembly
Throttle control mechanism-choke
Clutch assembly
Clutch assembly
Carrier (FR)-ballast bracket assembly (FR)
Front axle assembly
Front axle assembly
Front axle assembly
Front axle assembly
Front axle assembly
Front axle assembly
Front drive assembly
Rear drive assembly
Tilting drawbar
Transmission case assembly
Transmission case assembly
Transmission case assembly
Transmission case assembly
Transmission case assembly (FR)-cooling & lubrication systems
Transmission case assembly (RR)
Transmission case assembly (RR)
Transmission case assembly (RR)-differential assembly
Transmission case assembly (RR)-differential lock & control
Transmission case assembly (RR)-differential lock hydraulic disengaging mechanism
Final drive assembly (LH/RH)
Steering box assembly
Hydraulic steering gear-steering system oil pipes
540/1,000 r/min PTO assembly
540/1,000 r/min PTO assembly
PTO shaft control mechanism
Transfer case assembly
Transfer case assembly
Propeller shaft and guard assembly
Service brake control mechanism oil tank & lines (with air brake)
Service brake pedal control mechanism
Service brake
Service brake pump
Parking brake assembly
Driver’s seat
Cab
Rear window assembly
Door assembly (LH/RH)
Side window assembly (LH/RH)
Rear hood
Hood
Hood
Step & suspension assembly
Starting cables, battery tray & fixture
Electrical equipment & instrumentation-lighting system
Electrical equipment & instrumentation-electrical system harnesses
Electrical equipment & instrumentation-electrical system control components
Electrical equipment & instrumentation-electrical system accessories
Fuel system
Lifter assembly with auxiliary cylinder-hydraulic lifter housing
Lifting device assembly with auxiliary cylinder-lifting device cylinder piston, lifting device shaft and force transmission mechanism
Lifter assembly with 2 auxiliary cylinders
Auxiliary cylinder
Lifter assembly with auxiliary cylinder-distributor assembly
Lifter assembly with auxiliary cylinder-distributor control mechanism
Lifter assembly with auxiliary cylinder-distributor control mechanism
Lifter assembly with auxiliary cylinder-distributor control mechanism
Lifter assembly with auxiliary cylinder-load control assembly
Lifter assembly with auxiliary cylinder-lifter control mechanism
Lifter assembly with auxiliary cylinder-lifter control mechanism
Lifter assembly with auxiliary cylinder-lifter control mechanism
Lifter assembly with auxiliary cylinder-lifter control mechanism
Suspension mechanism
Suspension mechanism
Suspension mechanism
Fuel tank assembly
Hydraulic line assembly
Lubrication and cooling system assembly
Two-piece multi-way valve & control
Two-piece valve assembly
Trailer brake system
Heating & ventilation systems & heating piping
Signs & decals
Installed air cleaner assembly (optional desert air cleaner)
Front driving wheel assembly
Rear driving wheel assembly
Hitch bar assembly (optional)
Transmission case assembly (FR) (optional synchronizer)
Transmission case assembly (FR) (optional synchronizer)
Transmission case assembly (FR) (optional synchronizer)
Transmission case assembly (FR) (optional synchronizer)
Transmission case assembly (FR)-cooling & lubrication systems (without power train cooler)
Transmission case assembly (RR)-differential assembly (optional for four planet gear arrangement)
Transmission case assembly (RR)-differential lock mechanical disengaging mechanism (optional)
540/720 r/min PTO assembly
540/720 r/min PTO assembly
540/720 r/min PTO assembly
Driver’s seat
Service brake control mechanism oil tank & lines (without air brake)
ROPS assembly (optional)
Canopy assembly (optional)
Installed air cleaner assembly (optional ROPS)
Lighting system (optional ROPS)
Electrical equipment & instrumentation-electrical system harnesses (optional ROPS)
Front mud guard
Three-piece multi-way valve & control
Air conditioning system assembly
Signs & decals (in Spanish)
Cylinder Head Assy
Cylinder Head Assy
Cylinder Head Assy
Cylinder Block Assy
Cylinder Block Assy
Cylinder Block Assy
Camshaft Assy
Crankshaft And Flywheel Assy
Piston and Conne Assy
Gear Train Assy
Sump Assy
Timing Gear Chamber Assy
Oil seal shell after Assy
Cylinder Head Hood Assy
Crankcase Ventilation Assy
Intake Tube Assy
Intake Tube Assy
Exhaust Tube Assy
Fuel Injection Pump Installation assy Assy
Fuel Injection Pump Installation assy Assy
Fuel Injection Pump Installation assy Assy
Fuel Injector Assy
Fuel Filter Installation Assy
Fuel Filter Installation Assy
Fuel Injection Pipes Assy
Fuel Low Pressure Pipes Installation Assy
Oil Pump Installation Assy
Oil Suction Strainer Assy
Oil Filter Assy
Water Pump and Fan Assy
Thermostat Assy
Starter Installation Assy
Alternator and Bracket Assy
Alternator and Bracket Assy
Air Compressor Installation Assy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Позиция на иллюстрации
Заводской номер детали
Название детали
1
6-QW-150
Battery
2
GB 5786-2000
Bolt M6x30
3
GB 97.1-1987
Washer 6
4
GB 93-1987
Washer 18
5
GB 6170-2000
Nut M6
6
SZ1204-1.48.212
Battery negative terminal
7
GB 6170-2000
Nut M10
8
SZ1204-1.48.061
Ground cable, battery (-)
9
SZ1204-1.48.211
Battery positive terminal
10
SZ1204-1.48.060
Battery positive pole to power switch cable
11
SZ804.48.106
Guard, wiring, starter
12
1604-1.48.063
Power switch to starter cable
13
JK451
Power switch
14
GB 5783-2000
Bolt M8x30
15
GB 7244-1987
Washer 8
16
GB/T5783-2000
Bolt M12x40-Zn.D
17
GBT6170-2000
Washer 10
18
1204-1.63.011
Welded battery pressure plate unit
19
1254C.48.301
Battery hood
20
GB6170-2000
Nut M8
21
GB/T93-1987
Washer 12-Zn.D
22
SZ1204-1.63.010
Welded battery carrier unit
23
1204-1.63.102
Stay bolt
24
1204-1.63.101
Rubber pad, battery
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
