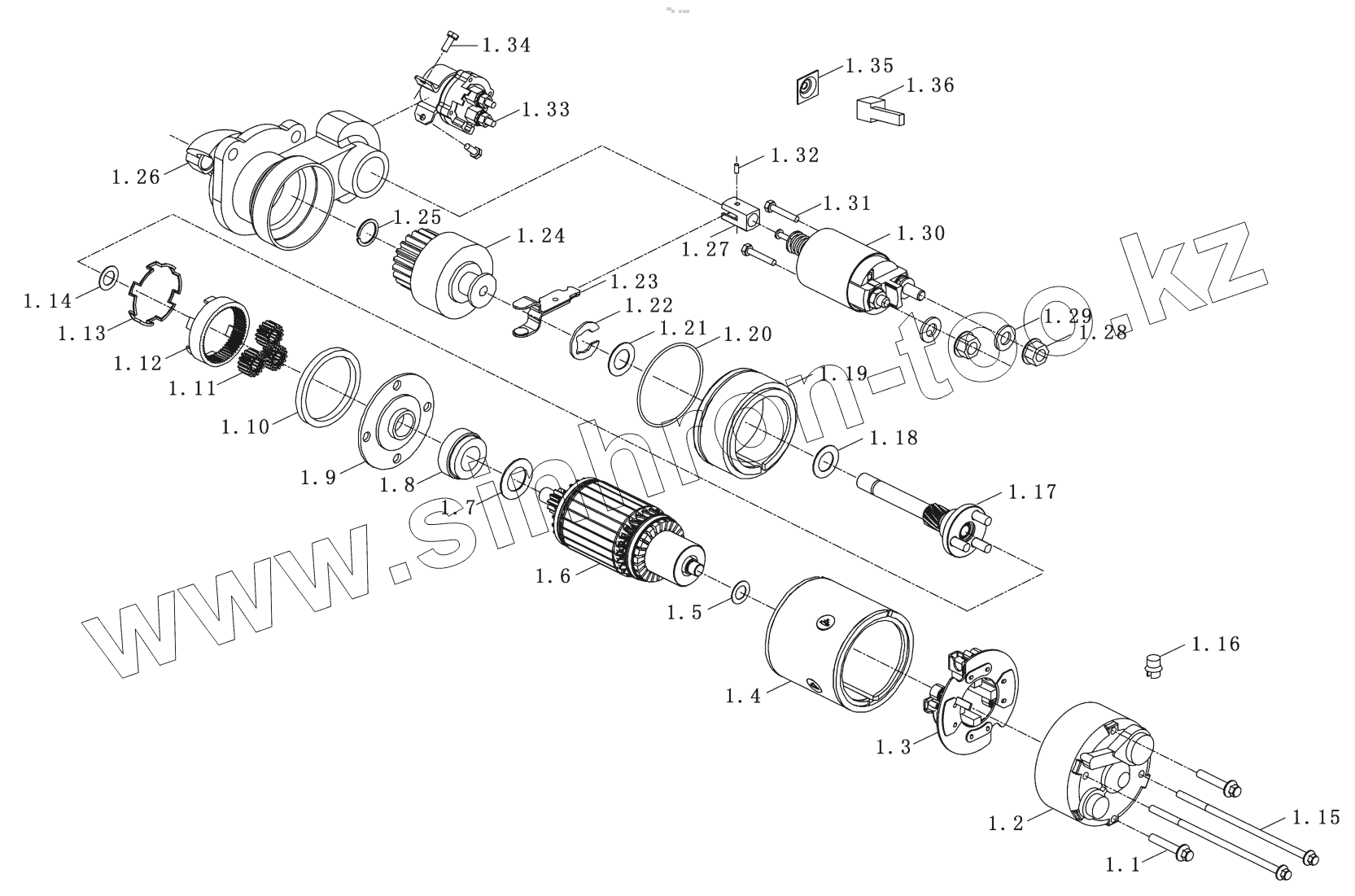

Каталог запасных частей к технике: YTO X1204. Starter Installation Assy

Тип техники

Марка

Модель

Схема

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

1.10

1.11

1.12

1.13

1.14

1.15

1.16

1.17

1.18

1.19

1.20

1.21

1.22

1.23

1.24

1.25

1.26

1.27

1.28

1.29

1.30

1.31

1.32

1.33

1.34

1.35

1.36

Позиция на иллюстрации	Заводской номер детали	Название детали
1	M100R2010SE	Starter assembly
1.1	M100R2010SE-08-0000	Brush bottom imprison screw
1.2	M100R3001SE-08-0000	Brush end cover
1.3	35261054	Brush backplane assembly
1.4	M100R2004SE-05-0000	Stator assembly
1.5	35145130	Washer
1.6	M100R2004SE-06-0000	Armature assembly
1.7	35145166	Washer
1.8	35259412	Nylon sleeve
1.9	35259249	Cover
1.10	35259394	Rubber seal
1.11	35259154A	Planetary gear
1.12	M93RA-04-0025/35259152	Internal gear
1.13	35259248	Shock washer
1.14	35145183	Washer
1.15	35125148	Wear nail
1.16	M93R3001SE-08-0015	Drain
1.17	M93RA-04-0003	Drive shaft assembly
1.18	35145166	Washer
1.19	35259168	Support cover components
1.20	M93R3006SE-04-0029	O-rubber sealing ring
1.21	35145183	Washer
1.22	35259399-AR	Open ring
1.23	M93R3006SE-03-0000A	Fork components
1.24	M93R3032SE-02-0000	Any experence assembly
1.25	M93R3001SE-11-0041	Shaft end retainer ring
1.26	M100R2010SE-01-0000	Driven plate assembly
1.27	M93R3006SE-11-0038B	Resell seat
1.28	M10/GB6170-86	Flange nut
1.29	010/GB955-87	Waveform spring washer
1.30	M100R2004SE-10-000000	Electromagnetic switch assembly
1.31	M93R3006SE-11-0020	Electromagnetic switch fastening bolt
1.32	M93R3006SE-11-0040B	Fork resell
1.33	M100R2003SE-12-000000	Relay assembly
1.34	M105R3001SE-00-000017	Relay forbidden solid bolt
1.35	M93R3006SE-11-0039B	Steel bowl
1.36	M100R3001SE-11-0036	Shock block

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
