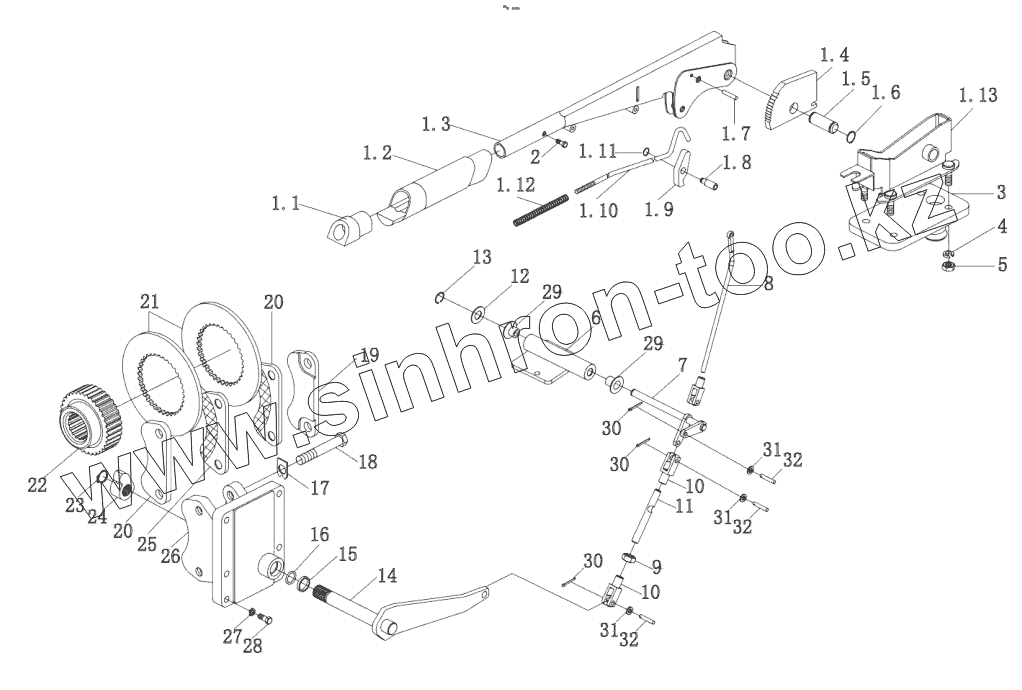

Каталог запасных частей к технике: YTO X1204. Parking brake assembly
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.1
1.11
1.12
1.13
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
29
30
30
30
31
31
31
32
32
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5128767/1.67.206 | Hand brake lever assembly | |
| 1.1 | 5131438/1.67.221 | Button assembly, handle, hand brake | |
| 1.2 | 885128431/1.67.220 | Handle | |
| 1.3 | 885128407/1.67.202 | Hand brake lever unit | |
| 1.4 | SZ804.43.402 | Locating sector rack | |
| 1.5 | 4988275/1.67.208 | Pin, parking brake lever | |
| 1.6 | GB 894.1-86 | Retaining ring 80 | |
| 1.7 | 4985127/1.67.227 | Rivet, limit detent | |
| 1.8 | SZ804.43.401 | Pin, limit detent | |
| 1.9 | 5110155/1.67.223 | Limit detent, parking | |
| 1.1 | 5128712SZ/1.67.222 | Control lever, limit detent | |
| 1.11 | GB 894.1-86 | Retaining ring 80 | |
| 1.12 | 5105729/1.67.253 | Spring, button, handle | |
| 1.13 | 1604-1.43.023 | Bracket assembly, hand brake lever | |
| 2 | 14440027/10355 | Screw M4x8 | |
| 3 | 5131546/1.67.215 | Stiffener, hand brake lever | |
| 4 | GB 7244-87 | Washer 18-Zn.D | |
| 5 | GB 6170-86 | Nut M8 | |
| 6 | 1204-1.43.022 | Welded support plate unit | |
| 7 | 1204-1.43.023 | Welded rocker unit | |
| 8 | 1204-1.43.207 | Drive link, hand brake | |
| 9 | GB 6173-86 | Locking nut | |
| 10 | 1204.43.105A | Coupling yoke | |
| 11 | 1204-1.43.208A | Pull rod | |
| 12 | GB 97.1-1985 | Washer 16-140HV-Zn.D | |
| 13 | GB 94.1-1986 | Circlip 17 | |
| 14 | 5131555/1.67.209A | Outer drive link assembly, hand brake | |
| 15 | 5101337/1.67.234 | Ring, inner pin | |
| 16 | 14457480/14618 | O-ring 18.72x2.62 | |
| 17 | 14199000/10182 | Locking plate14 | |
| 18 | 4995687/1.65.550 | Hex head screw, brake | |
| 19 | 5114692/1.65.508 | Shoe, parking brake | |
| 20 | 5104773/1.65.503A | Side sector plate assembly | |
| 21 | 5112630/1.65.505 | Disc, parking brake | |
| 22 | 1204.38.110 | Hub, disc, parking brake | |
| 23 | 11066775/12245 | Circlip 19 | |
| 24 | 5112629/1.67.252 | Internal rod | |
| 25 | 5104774/1.65.504 | Sector plate assembly (MID) | |
| 26 | 5112628/1.65.502 | Housing, parking brake | |
| 27 | GB 7244-87 | Washer 18-Zn.D | |
| 28 | GB 5786-86 | Bolt M12x1.25x60 | |
| 29 | 1.68.011A/5110545 | Bushing, shaft, brake pedal (RH) | |
| 30 | GB91-86 | Cylindrical pin B5x20 | |
| 31 | GB97.1-85 | Washer | |
| 32 | GB882-86 | Shaft, Pin B10x32-Zn.D |
