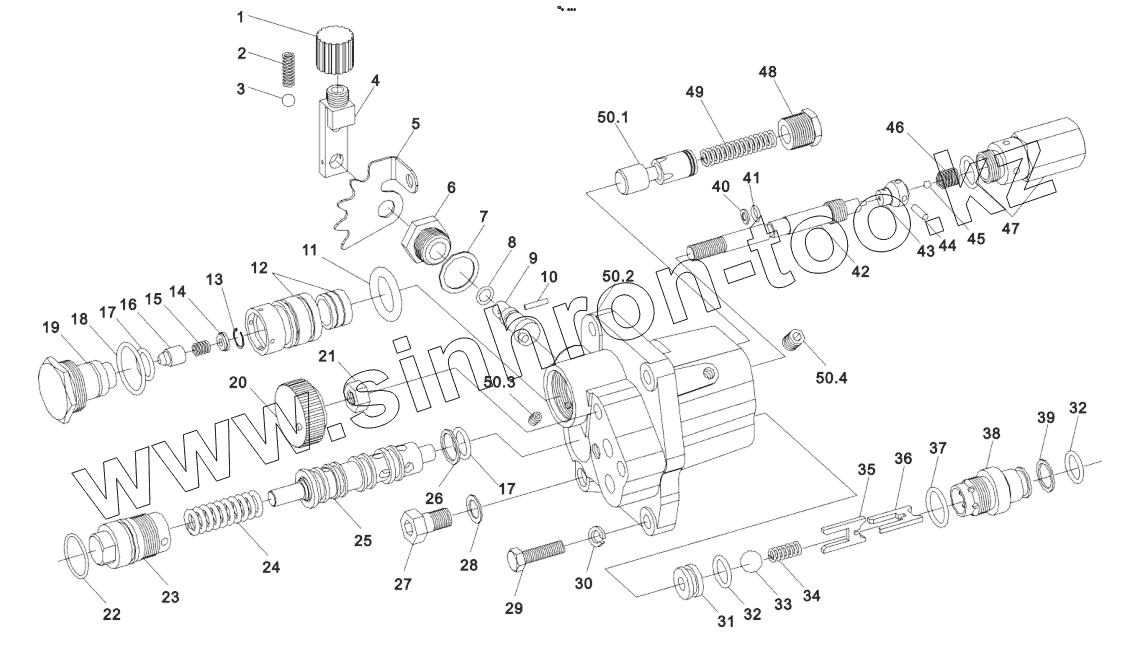

Каталог запасных частей к технике: YTO X1204. Lifter assembly with auxiliary cylinder-distributor assembly
SZ804.57B.001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50.1
50.2
50.3
50.4
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| SZ804.57B.001 | SZ804.57B.001 | Distributor assembly | |
| 1 | 5120762/1.82.433 | Head, handle, lever, sensitivity adjustment | |
| 2 | 5120761/1.82.431 | Spring | |
| 3 | GB 308-84 | Steel ball 12.7000G10b | |
| 4 | 5117736/1.82.438 | Lever, sensitivity adjustment | |
| 5 | 5120763/1.82.435 | Sector plate, adjusting handle | |
| 6 | 5120760/1.82.437 | Plug, sensitivity adjustment | |
| 7 | 10279560/14607 | Rectangular cross-section seal washer | |
| 8 | 575094/1.82.530 | O-ring 8.73x1.78 | |
| 9 | 5117735/1.82.436 | Pin, sensitivity adjustment | |
| 10 | BZ/JHX-SZ | Pin 5x30 | |
| 11 | 14454081/14618 | O-ring 26.70x1.78 | |
| 12 | 5117731/1.82.471A | Sensitivity control valve | |
| 12.1 | 5117728/1.82.449 | Piston, sensitivity control valve | |
| 12.2 | 5117730/1.82.471 | Pocket, sensitivity control valve | |
| 13 | 13420376/12248 | Circlip 12 | |
| 14 | 5122030/1.82.494 | Spring washer | |
| 15 | 5115469/1.82.497 | Spring, pilot valve | |
| 16 | 5117732/1.82.492 | Pilot valve | |
| 17 | 14457381/14618 | O-ring 17.12x2.62 | |
| 18 | 14458081/14618 | O-ring 28.24x2.62 | |
| 19 | 5122029/1.82.493 | Plug, valve, sensitivity adjustment | |
| 20 | 5120798/1.82.476 | Adjusting knob, control valve, lowering speed | |
| 21 | GB 6172-86 | Nut M10-5 | |
| 22 | 14453980/14618 | O-ring 25.12x1.78 | |
| 23 | 5117725/1.82.440 | Seat, main control valve | |
| 24 | 4973361/1.82.444 | Spring, main control valve | |
| 25 | 5117723/1.82.446A | Main control valve assembly | |
| 25.1 | 5117721/1.82.445 | Core, main control valve | |
| 25.2 | 5117722/1.82.446 | Pocket, main control valve | |
| 26 | 5117726/1.82.454 | Retainer ring | |
| 27 | 14360524/10356 | Bolt M12x1.25x20 | |
| 28 | 10296160/14607 | Rectangular cross-section seal washer | |
| 29 | GB 5783-86 | Bolt M10x28 | |
| 30 | GB 7244-87 | Washer 18-Zn.D | |
| 31 | 4951476/1.82.464 | Seat, one-way valve | |
| 32 | 14457281/14618 | O-ring 15.54x2.62 | |
| 33 | GB 308-84 | Steel ball 12.7000G10b | |
| 34 | 44018852/1.80.766 | Spring | |
| 35 | 5148907/1.82.432 | Support (LWR), one-way valve | |
| 36 | 5148905/1.82.432A | Support (LWR), one-way valve | |
| 37 | 14457581/14618 | O-ring 20.29x2.62 | |
| 38 | 5131278/1.82.430 | Oil outlet joint, one-way valve | |
| 39 | 4958830/1.82.429 | Retainer ring | |
| 40 | 5120771/1.82.479 | Retainer ring | |
| 41 | 5120772/1.82.480 | O-ring 6.75x1.78 | |
| 42 | 5117741/1.82.474 | Adjusting screw, control valve, lowering speed | |
| 43 | 5120770/1.82.472 | Control valve, lowering speed | |
| 44 | BZ/JHX-SZ | Pin 5x30 | |
| 45 | GB 308-84 | Steel ball 12.7000G10b | |
| 46 | 596854/1.29.641 | Spring | |
| 47 | 5117739/1.82.451 | Relief valve assembly | |
| 48 | 5117734/1.82.455 | Screw plug, return valve | |
| 49 | 5117729/1.82.448 | Spring, return valve | |
| 50 | 5117743/1.82.401A | Divider housing unit with oil return valve | |
| 50.1 | 5117727/1.82.450 | Return valve | |
| 50.2 | 5117716/1.82.401 | Housing, divider | |
| 50.3 | 10269150/14545 | Screw plug M6 | |
| 50.4 | 10269350/14545 | Screw plug M10 |
