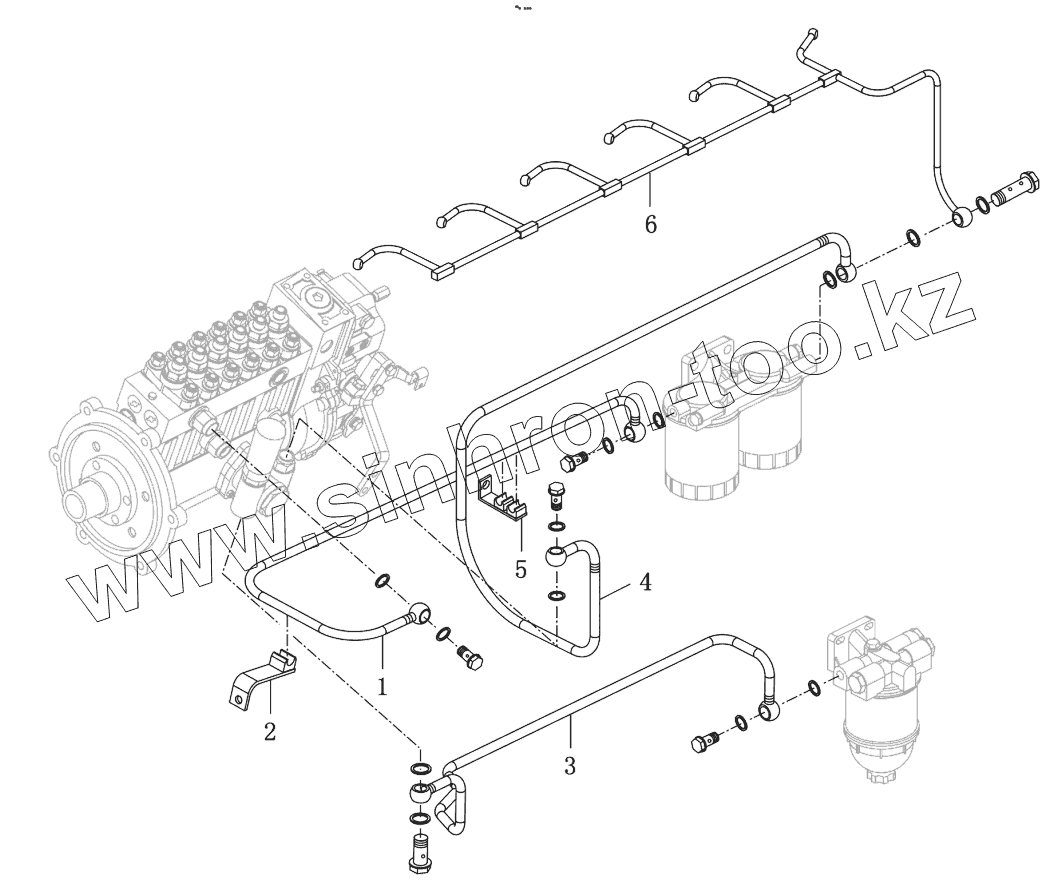

Каталог запасных частей к технике: YTO X1204. Fuel Low Pressure Pipes Installation Assy

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано KC125 Мост X1204 (2013) ZL50F

Схема > Не выбрано Air cleaner assembly Muffler assembly Oil cooler and line assembly Installed radiator assembly Throttle control mechanism-choke Clutch assembly Clutch assembly Carrier (FR)-ballast bracket assembly (FR) Front axle assembly Front axle assembly Front axle assembly Front axle assembly Front axle assembly Front axle assembly Front drive assembly Rear drive assembly Tilting drawbar Transmission case assembly Transmission case assembly Transmission case assembly Transmission case assembly Transmission case assembly (FR)-cooling & lubrication systems Transmission case assembly (RR) Transmission case assembly (RR) Transmission case assembly (RR)-differential assembly Transmission case assembly (RR)-differential lock & control Transmission case assembly (RR)-differential lock hydraulic disengaging mechanism Final drive assembly (LH/RH) Steering box assembly Hydraulic steering gear-steering system oil pipes 540/1,000 r/min PTO assembly 540/1,000 r/min PTO assembly PTO shaft control mechanism Transfer case assembly Transfer case assembly Propeller shaft and guard assembly Service brake control mechanism oil tank & lines (with air brake) Service brake pedal control mechanism Service brake Service brake pump Parking brake assembly Driver’s seat Cab Rear window assembly Door assembly (LH/RH) Side window assembly (LH/RH) Rear hood Hood Hood Step & suspension assembly Starting cables, battery tray & fixture Electrical equipment & instrumentation-lighting system Electrical equipment & instrumentation-electrical system harnesses Electrical equipment & instrumentation-electrical system control components Electrical equipment & instrumentation-electrical system accessories Fuel system Lifter assembly with auxiliary cylinder-hydraulic lifter housing Lifting device assembly with auxiliary cylinder-lifting device cylinder piston, lifting device shaft and force transmission mechanism Lifter assembly with 2 auxiliary cylinders Auxiliary cylinder Lifter assembly with auxiliary cylinder-distributor assembly Lifter assembly with auxiliary cylinder-distributor control mechanism Lifter assembly with auxiliary cylinder-distributor control mechanism Lifter assembly with auxiliary cylinder-distributor control mechanism Lifter assembly with auxiliary cylinder-load control assembly Lifter assembly with auxiliary cylinder-lifter control mechanism Lifter assembly with auxiliary cylinder-lifter control mechanism Lifter assembly with auxiliary cylinder-lifter control mechanism Lifter assembly with auxiliary cylinder-lifter control mechanism Suspension mechanism Suspension mechanism Suspension mechanism Fuel tank assembly Hydraulic line assembly Lubrication and cooling system assembly Two-piece multi-way valve & control Two-piece valve assembly Trailer brake system Heating & ventilation systems & heating piping Signs & decals Installed air cleaner assembly (optional desert air cleaner) Front driving wheel assembly Rear driving wheel assembly Hitch bar assembly (optional) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR) (optional synchronizer) Transmission case assembly (FR)-cooling & lubrication systems (without power train cooler) Transmission case assembly (RR)-differential assembly (optional for four planet gear arrangement) Transmission case assembly (RR)-differential lock mechanical disengaging mechanism (optional) 540/720 r/min PTO assembly 540/720 r/min PTO assembly 540/720 r/min PTO assembly Driver’s seat Service brake control mechanism oil tank & lines (without air brake) ROPS assembly (optional) Canopy assembly (optional) Installed air cleaner assembly (optional ROPS) Lighting system (optional ROPS) Electrical equipment & instrumentation-electrical system harnesses (optional ROPS) Front mud guard Three-piece multi-way valve & control Air conditioning system assembly Signs & decals (in Spanish) Cylinder Head Assy Cylinder Head Assy Cylinder Head Assy Cylinder Block Assy Cylinder Block Assy Cylinder Block Assy Camshaft Assy Crankshaft And Flywheel Assy Piston and Conne Assy Gear Train Assy Sump Assy Timing Gear Chamber Assy Oil seal shell after Assy Cylinder Head Hood Assy Crankcase Ventilation Assy Intake Tube Assy Intake Tube Assy Exhaust Tube Assy Fuel Injection Pump Installation assy Assy Fuel Injection Pump Installation assy Assy Fuel Injection Pump Installation assy Assy Fuel Injector Assy Fuel Filter Installation Assy Fuel Filter Installation Assy Fuel Injection Pipes Assy Fuel Low Pressure Pipes Installation Assy Oil Pump Installation Assy Oil Suction Strainer Assy Oil Filter Assy Water Pump and Fan Assy Thermostat Assy Starter Installation Assy Alternator and Bracket Assy Alternator and Bracket Assy Air Compressor Installation Assy

1

2

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	6RBZT52.350200		Fuel feed pipe assembly, from filter to injection pump
2	4PY.350011FE		Tubing support fitting
3	6M5-T76.350600		Oil-water separator to pump tubing parts
4	6RBZT52.350100		Fuel feed pipe assembly, from feed pump to filter
5	6RBZT52.350011		Tubing support
6	6RAZL.350400FE		Fuel return pipe assy, injection pump

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
