Каталог запасных частей к технике: YTO X1204. Fuel Injection Pump Installation assy Assy

Тип техники

Марка

Модель

Схема

8.1

8.2

8.3

8.4

8.5

8.6

8.7

8.8

8.9

8.10

8.11

8.12

8.13

8.14

8.15

8.16

8.17

8.18

8.19

8.20

8.21

8.22

8.23

8.24

8.25

8.26

8.27

8.28

8.29

8.30

8.31

8.32

8.33

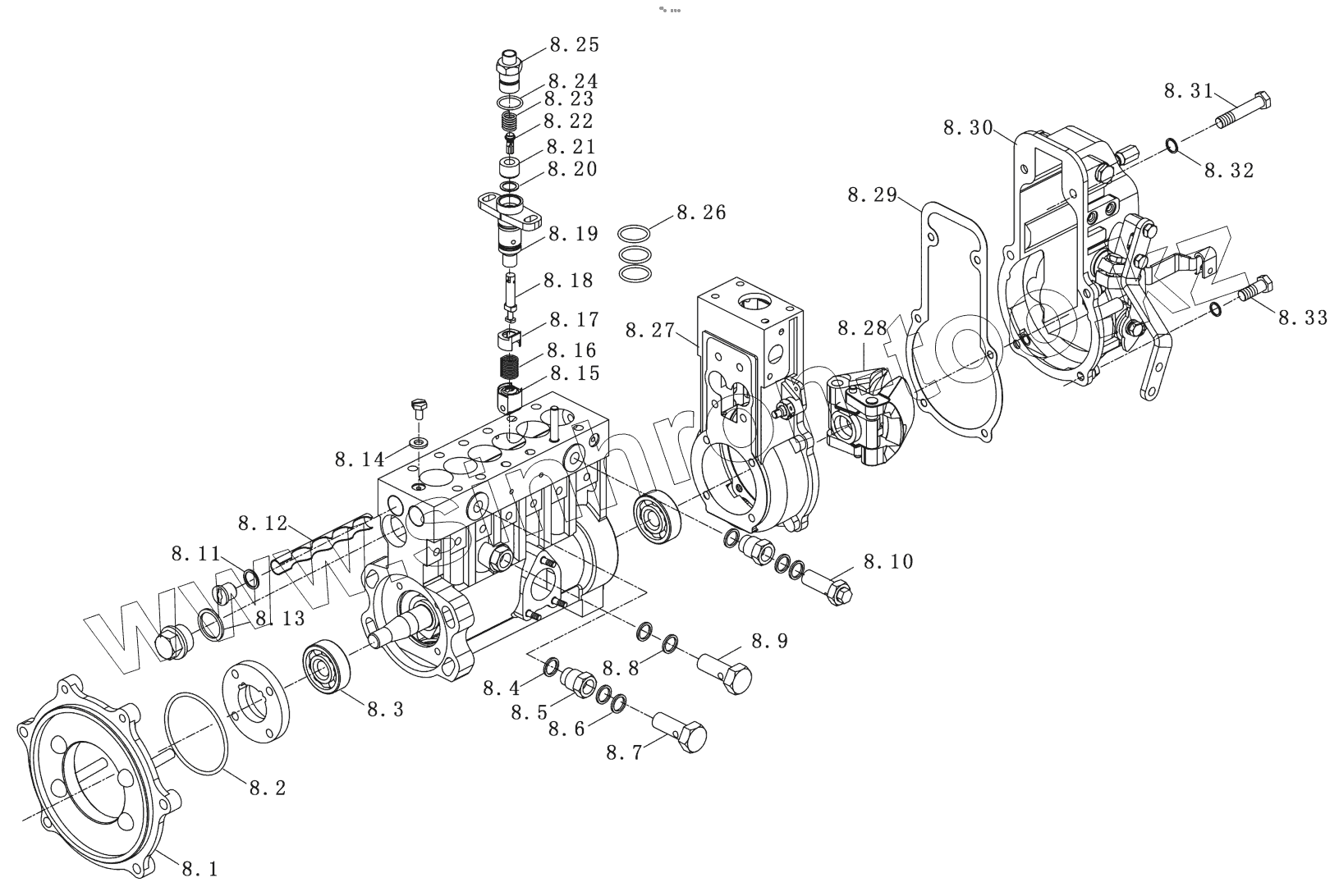

Позиция на иллюстрации	Заводской номер детали	Название детали
1	54.18.432	Lubricating oil pipe screw
2	4A.310002FE	Washer
3	6RZQ55.310400FE	Advance machine lubricating oil pipe
4	54.18.432	Lubricating oil pipe screw
5	GB21	Bolt M10x20-8.8-Zn.D
6	GB/T93	Spring washer 8
7	GB/T848	Washer 10-140HV-Zn.D
8	BH6PYD105Y571BF	Fuel injection pump
8.1	P6B-00-090	Fuel injection pump joint board
8.2	Q/YT020.2	O-rubber sealing ring 85x3.1
8.3	GB297-84	Bearing 7025E
8.4	YB40A-01-008	Copper washer
8.5	BK.6BB010-025-1	Pipe joint
8.6	BK.16-006-1A	Copper washer
8.7	BK.16-110-1	Screw, pipe
8.8	BII-049	Nozzle gasket
8.9	P4B202-00-011	Small hexangular bolt
8.10	BK.BD-030	Overflow fuel valve assembly
8.11	YB40A-01-006	Copper washer
8.12	P6B-00-002	Oil deflector
8.13	YB40A-00-007	Copper washer
8.14	BII-084	Copper washer
8.15	YB40A-07	Tappet body assembly
8.16	BK.YB40D-00-008	Plunger spring
8.17	YB40A-00-009	Upper seat, plunger spring
8.18	YU40A-00-001-I	Plunger
8.19	BK.YU40D-00-002-II	Plunger barrel
8.20	BK.YB40D -02-001	Sealing washer
8.21	YF40A-00-001- I	Delivery valve
8.22	YF40A-00-002	The oil valve seat
8.23	YB40A-02-005	Spring, delivery valve
8.24	GB/T3452.1-1992	O sealing ring 15x1.8
8.25	BK.YB40A-02-002A	Joint, delivery valve
8.26	YB40A-02-006	O-rubber sealing ring
8.27	TB91-010	Governor housing assy
8.28	TB60-070	Fly hammer assy
8.29	TB10-117	Washer
8.30	TB90-060	Governor cover assy
8.31	GB/T29.1-1988	Bolt M6x45
8.32	GB/T859-1987	Washer 12
8.33	GB/T65-2000	Bolt M6x25
9	LR.310001	Fuel injection pump connection plate gasket
10	BK.16-006-1A	Copper washer
11	BK.16-110-1	Screw, pipe
12	6RZLD58.310001FE-3	Lubricating oil pump
13	BK.16-110-1	Screw, pipe
14	BII-049	Nozzle gasket
15	BKII-019B	Oil transfer pump gasket
16	S0120B	Feed pump
16.1	SP/HF2205.5-00-009	Screw plug
16.2	SP/HF2205.5-00-008	O-rubber sealing ring
16.3	SP/HF2205.5-00-007	Piston spring
16.4	SP/HF2205.5-00-006	Fuel supply pump piston
16.5	SI/HZ2204A-00-001	Designation strip
16.6	SP/HF2205.5-01-005	Check valve seat
16.7	SP/HF2206-00-002	Check valve
16.8	SP/HF2205.5-00-010	Check valve spring
16.9	SP/HF2205.5-00-003	Washer
16.10	SAD/H2206-00-001	Delivery pipe joint chair
16.11	SP/HF2205.5-02-001	Washer
16.12	SP/HF2205.5-02-002	Protecting sleeve
16.13	SP/HF2205.5-02-003	Joint bolt, fuel outlet pipe
SY2023A1	SY2023A1	Hand primer assy
16.14	SYB2224A2-00-08	Sealing ring
16.15	SYB2220A2-00-04	Hand primer joint chair
16.16	SYB2224A2-00-07	Reinforced oil seal
16.17	SYB2224A2-00-06	Guide sleeve
16.18	SYB2220A2-00-03	Cylinder
16.19	SYB2220A2-00-01	Knochout pin assy
16.20	SYB2220A2-00-02	Return spring
16.21	SYB2220A2-00-04	Hand primer joint chair
16.22	SYB2224A2-00-05	Check valve
16.23	SYB2220A2-00-05	Check valve spring
16.24	XYSYB-20-2	Spring seat
SI/HZ2204A-02	SI/HZ2204A-02	Tappet assy
16.25	SI/HZ2204A-02-003	Roller
16.26	SI/HZ2204A-02-002	Tappet
16.27	SI/HZ2204A-02-001	Slid rod
16.28	SI/HZ2204A-02-004	Pin
16.29	SP/HF2205.5-00-011	Wire loop
16.30	SI/HZ2204A-01-002	Push rod
16.31	SP/HF2205.5-01-003	Reinforced oil seal
16.32	SI/HZ2204A-01-001	Fuel supply pump housing
SP/HF2205.5-04	SP/HF2205.5-04	Joint bolt assy, fuel inlet pipe
16.33	SP/HF2205.5-04-002	Filter screen
16.34	SP/HF2205.5-02A-001	Washer
16.35	SP/HF2205.5-02-002	Protecting sleeve
16.36	GB52	Nut M8-8-Zn.D
17	GB/T848	Washer 10-140HV-Zn.D
18	GB/T93	Spring washer 8
19	GB52	Nut M8-8-Zn.D
20	SP/HF2205.5-02-001	Washer
21	SP/HF2205.5-02-003	Joint bolt, fuel outlet pipe
22	SP/HF2205.5-02A-001	Washer
23	6RBZT52.350500	Oil pump tubing
24	BK.BD-030	Overflow fuel valve assembly
25	SP/HF2205.5-02A-001	Washer
26	SP/HF2205.5-02-002	Protecting sleeve
27	SP/HF2205.5-04A-001	Oil inlet bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
