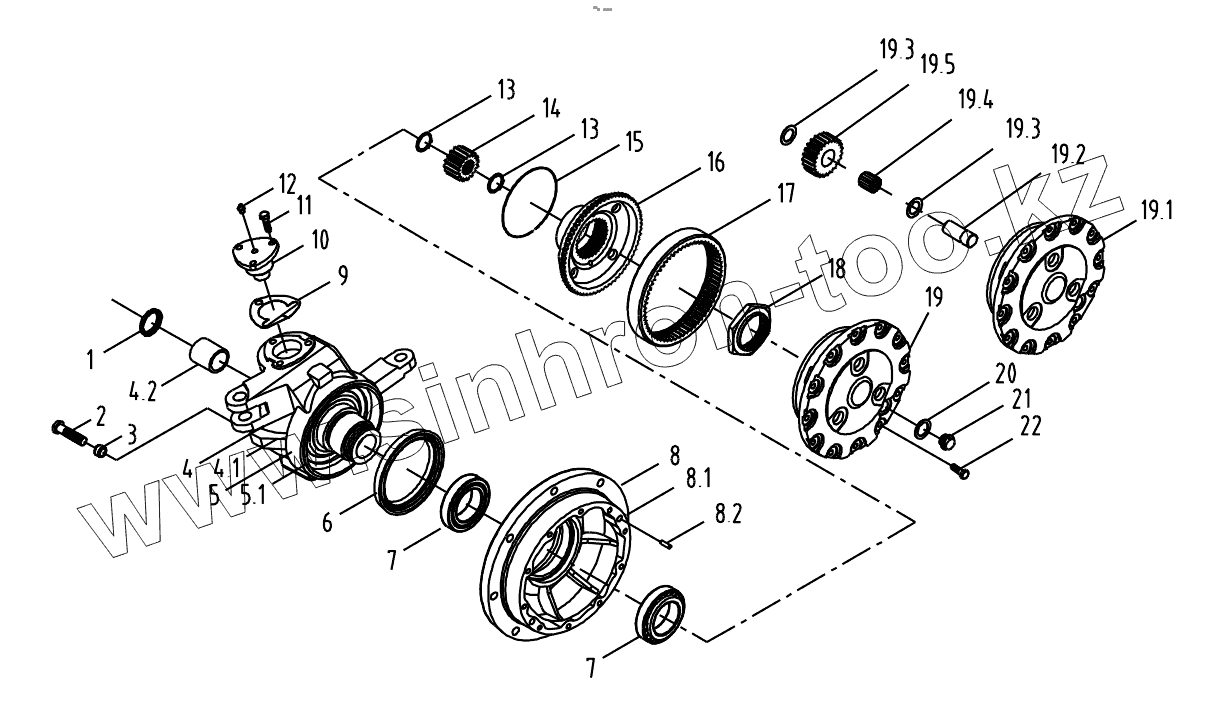

Каталог запасных частей к технике: YTO X1204. Front axle assembly
1
2
3
4
4.1
4.2
5
5.1
4.2
6
7
7
8
8.1
8.2
9
9
9
10
11
12
13
13
14
15
16
17
18
19
19.1
19.2
19.3
19.3
19.4
19.5
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1004.31.013 | 1004.31.013 | Hub reductor assembly (LH) | |
| 1004.31.012 | 1004.31.012 | Hub reductor assembly (RH) | |
| 1 | 8A5133799/1.41.539 | Oil seal, drive fork shaft 42x62x17 | |
| 2 | 5126628-FT/1.40.211 | Limit bolt M12x1.25x42 | |
| 3 | 5148495-FT/12 | Spacer | |
| 4 | 1004.31.028 | Steering knuckle unit (LH) | |
| 4.1 | 5142002-FT/12 | Steering knuckle (LH) | |
| 4.2 | 5104199/1.40.228 | Bushing, steering knuckle | |
| 5 | 1004.31.026 | Steering knuckle unit (RH) | |
| 5.1 | 5142001-FT/12 | Steering knuckle (RH) | |
| 4.2 | 5104199/1.40.228 | Bushing, steering knuckle | |
| 6 | 8A5137109/12 | Bolt, wheel hub 165x190x17 | |
| 7 | 5136951/12 | Bearing, wheel hub (FR) | |
| 8 | 5142014/13 | Hub unit with dowel pin | |
| 8.1 | 8A5142013/13 | Hub, traction wheel (FR) | |
| 8.2 | 4985063/1.21.067 | Dowel pin 12x20 | |
| 9 | 5137457/12 | Adjusting shim 0.15mm | |
| 9 | 5137458/12 | Adjusting shim 0.20mm | |
| 9 | 5137460/12 | Adjusting shim 0.30mm | |
| 10 | 5137239/12 | Kingpin, steering knuckle | |
| 11 | 14274534/10357/04 | Bolt M12x1.25x30 | |
| 12 | GB/T 1152-89 | Oil cup M10x1 | |
| 13 | 5140018/20 | Circlip for shaft 30 | |
| 14 | 5137107/20 | Sun gear | |
| 15 | 4997571/1.41.549 | Baffle ring, ring gear | |
| 16 | 5142047/20 | Support, ring gear | |
| 17 | 5108749/1.41.543 | Ring gear | |
| 18 | 5142020/12 | Nut, support, ring gear | |
| 19 | 5137724/20 | Planet carrier unit | |
| 19.1 | 5137689/20 | Planet carrier | |
| 19.2 | 4997509/1.41.547 | Shaft, planetary gear | |
| 19.3 | 4997510/1.41.552 | Bearing retainer, planet gear | |
| 19.4 | 5101693/1.41.546 | Needle bearing | |
| 19.5 | 5108747/1.41.545 | Planetary gear | |
| 20 | JB 982-77 | Composite seal washer 22 | |
| 21 | 10305114/14530 | Screw plug M22x1.5 | |
| 22 | 14233634/10357/04 | Bolt M10x1.25x30 |
