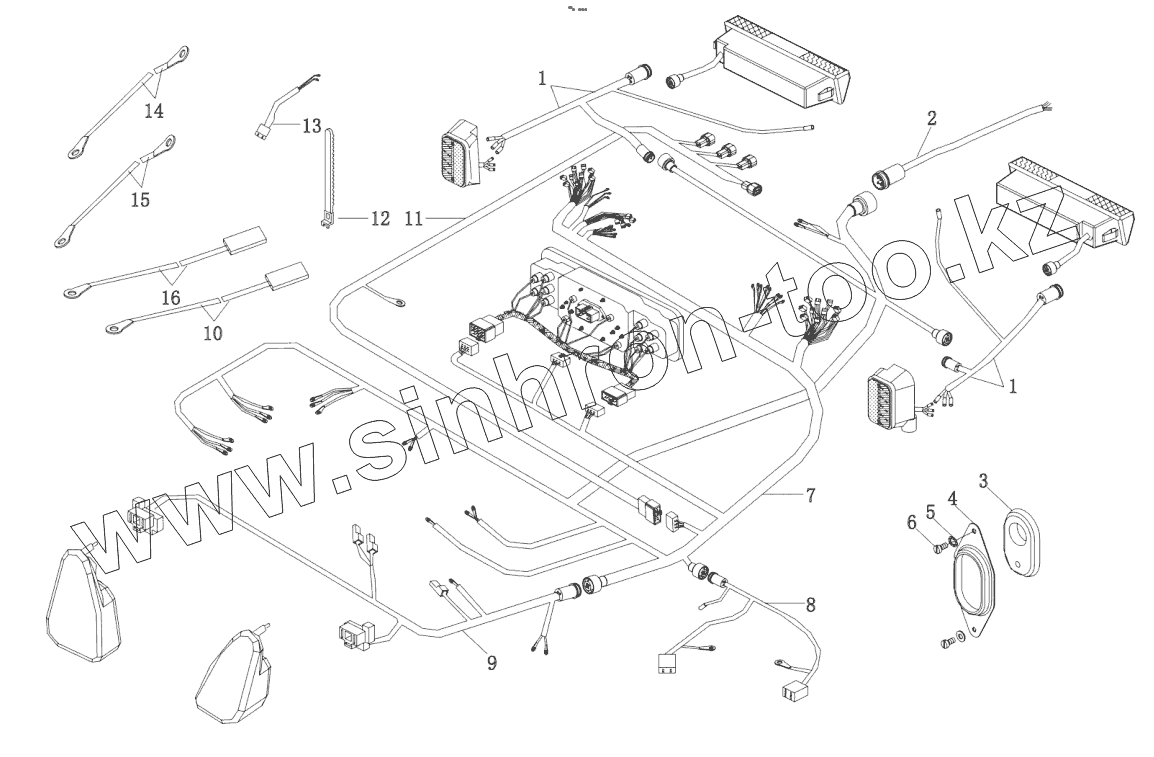

Каталог запасных частей к технике: YTO X1204. Electrical equipment & instrumentation-electrical system harnesses
