  5. Carrier (FR)-ballast bracket assembly (FR)

Каталог запасных частей к технике: YTO X1204. Carrier (FR)-ballast bracket assembly (FR)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
2
3
3
4
5
5
6
7
8
8
9
10
11
12
13
14.1
14.2
14.3
14.4
14.5
15
15
16
17
17
18.1
18.2
18.3
18.4
19
20
21
22
23

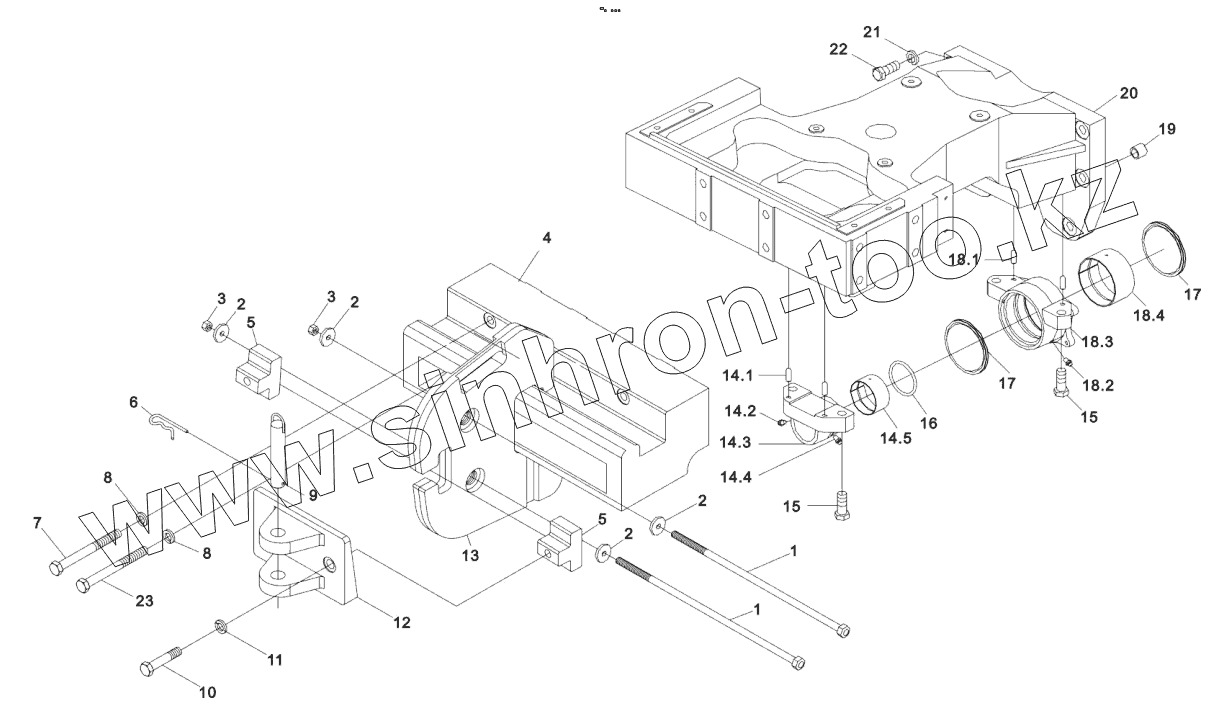

Позиция на иллюстрации Заводской номер детали Название детали
1 SZ1304.74.021 Counterweight bolt units
2 SZ804.74.103 Washer
3 10790524/10112 Nut M16x1.5
4 SZ1304.74.105 Counterweight bracket (FR)
5 SZ1304.74.103 Traction distance piece
6 1604.35.101 Locking pin
7 GB/T5782-2000 Bolt M8x65-Zn.D
8 GB/T7244-1987 Washer 8-Zn.D
9 1604.35.016 Welded traction pin unit (RR)
10 GB/T5783-2000 Bolt M12x40-Zn.D
11 GB/T7244-1987 Washer 8-Zn.D
12 SZ1304.74.102 Drawbar frame (FR)
13 SZ1304.74.101 Counterweight (FR)
14.1 10837710/12506 Dowel pin 10
14.2 YTQ016-87 Oil cup Z1/8"
14.3 5140451/1.21.138 Support (FR), rocking pin, front axle
14.4 13411117/14649 Grease relief valve
14.5 101112/1.21.194 Bushing (FR), rocking pin, front axle
15 14272031/10357/03 Self-locking Bolt M16x1.5x65
16 GB 3452.1-82 O sealing ring 128x3.55
17 5140455/1.21.142 Oil seal (D=99x155x7.5)
18 5140454/1.21.142 Support unit (RR), rocking pin, front axle
18.1 10837710/12506 Dowel pin 10
18.2 YTQ016-87 Oil cup Z1/8"
18.3 5140453/1.21.139 Support (RR), rocking pin, front axle
18.4 5129385/1.21.195 Bushing (RR), rocking pin, front axle
19 5130081/1.21.193 Hollow dowel pin
20 1204-1.30.101-1 Bracket (FR)
21 GB 7244-87 Washer 18-Zn.D
22 1594831/10312 Bolt M18x1.5x80
23 GB/T5782-2000 Bolt M8x65-Zn.D
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
