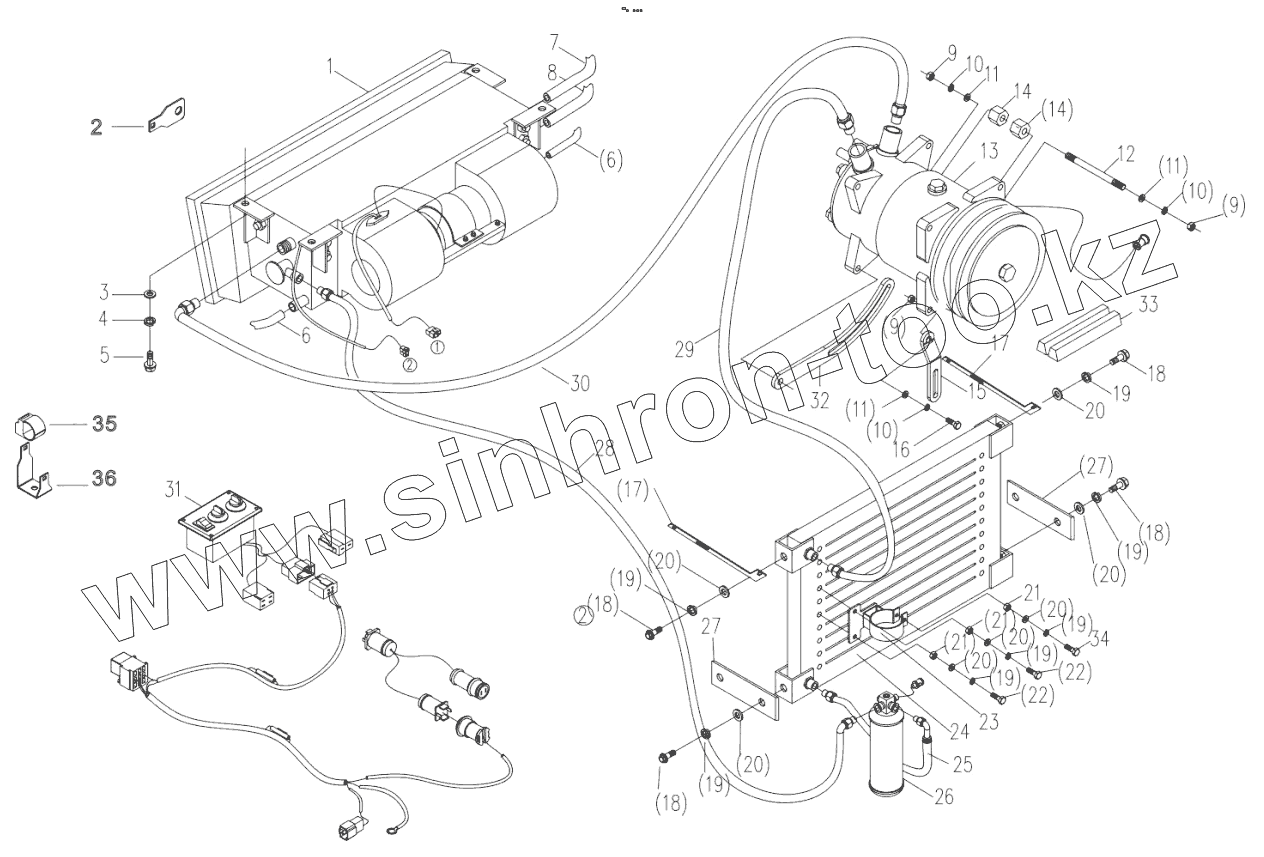

Каталог запасных частей к технике: YTO X1204. Air conditioning system assembly
1
2
3
4
5
6
7
8
9
9
9
10
10
11
11
11
12
12
13
14
14
15
16
17
17
18
18
18
18
18
19
19
19
19
19
19
19
20
20
20
20
20
20
20
21
21
21
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CSX904.81.010 | Evaporator assembly | |
| 2 | SZ804.50.216 | Support, oil pipe | |
| 3 | GB97.1-2000 | Plain washer 8 | |
| 4 | GB93-87 | Washer 14 | |
| 5 | GB5783-2000 | Screw M10x35-Zn.D | |
| 6 | JB804.81.203 | Water overflow pipe | |
| 7 | SZ1254.81.102 | Water outlet pipe, fan heater | |
| 8 | SZ1254.81.101 | Water inlet pipe, fan heater | |
| 9 | GB6170-2000 | Nut M8 | |
| 10 | GB93-87 | Washer 14 | |
| 11 | GB97.1-2000 | Plain washer 10 | |
| 12 | JB804.81.100 | Shaft lever (RR)M10X1 | |
| 13 | JB800.45.088a | Compressor assembly | |
| 14 | LX1204.81.01 | Pad | |
| 15 | X1204.45.1-1 | Tightner, compressor | |
| 16 | GB5783-2000 | Screw M10x35-Zn.D | |
| 17 | X1204.81.7 | Support plate (UPR), condenser | |
| 18 | GB5783-2000 | Screw M10x35-Zn.D | |
| 19 | GB93-87 | Washer 14 | |
| 20 | GB97.1-2000 | Plain washer 6 | |
| 21 | GB6170-2000 | Nut M8 | |
| 22 | GB5782-2000 | Bolt M6x45 | |
| 23 | TG1204.81.11 | Bracket, receiver drier | |
| 24 | TG1204.81.2a | Condenser | |
| 25 | TG1204.81.02a | High-pressure pipe, condenser-receiver drier | |
| 26 | JB800.45.082a | Receiver drier | |
| 27 | X1204.81.8 | Support plate (LWR), condenser | |
| 28 | X1204.81.013 | High-pressure line, evaporator-receiver drier | |
| 29 | X1204.81.014 | High-pressure line, compressor-condenser | |
| 30 | X1204.81.015 | Low-pressure line, evaporator-compressor | |
| 31 | X1204.81-016 | Global switch | |
| 32 | JB800.45.088-03 | Tensioning bent plate, compressor | |
| 33 | GB13487-2002 | Belt, compressor17-650 | |
| 34 | GB5783-2000 | Screw M10x35-Zn.D | |
| 35 | PP9206001 | Pipe clamp | |
| 36 | SZ804.50.218 | Support, oil pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
