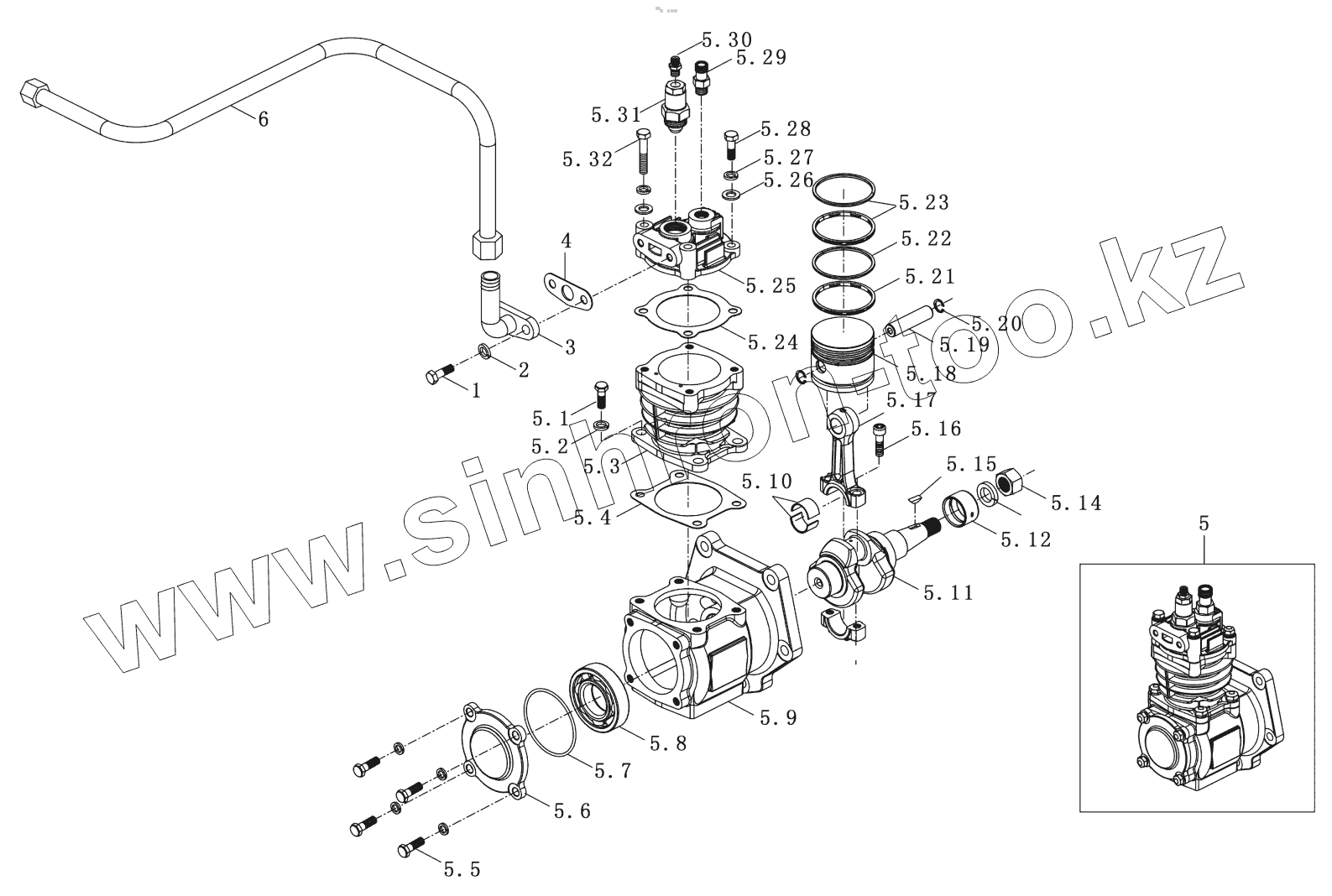

Каталог запасных частей к технике: YTO X1204. Air Compressor Installation Assy
1
2
3
4
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
5.12
5.14
5.15
5.16
5.17
5.18
5.19
5.20
5.21
5.22
5.23
5.24
5.25
5.26
5.27
5.28
5.29
5.30
5.31
5.32
6
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 2 | GB/T93 | Spring washer 8 | |
| 3 | 6RG35.710520 | Joint welding fitting | |
| 4 | 6RQ12.710008 | Air intake manifold gasket, air compressor | |
| 5 | LT.710300B | Air compressor installation assembly | |
| 5.1 | GB5783-86 | Bolt M14x40 | |
| 5.2 | GB/T93 | Spring washer 8 | |
| 5.3 | 4L01-3509010-05 | Cylinder block | |
| 5.4 | 6RQ710200A-06 | Cylinder gasket | |
| 5.5 | GB5783-86 | Bolt M14x40 | |
| 5.6 | 6RQ710200A-04 | Rear cover | |
| 5.7 | GB3452.1-82 | O-ring 71x3.55 | |
| 5.8 | GB276-82 | Single-row radial ball bearing 6207 | |
| 5.9 | LT710300A-01 | Crankcase | |
| 5.10 | 6RQ710200A-07-03/5 | Connecting rod bearing shell | |
| 5.11 | LT710300A-02 | Crankshaft | |
| 5.12 | 6RQ710200A-03 | Sleeve | |
| 5.13 | GB859-87 | Washer 10 | |
| 5.14 | GB6171-86 | Hex nut the M16x15 - Zn. D | |
| 5.15 | GB1099-79 | Woodruff key 4x16 | |
| 5.16 | 6RZQ53-14-05/3 | Connecting rod bolt | |
| 5.17 | 6RQ710200A-07-03 | Connecting rod farming | |
| 5.18 | 6RQ710200A-07-01 | Piston | |
| 5.19 | 6RQ710200A-07-02 | Piston pin | |
| 5.20 | GB893.1-86 | Retaining ring 30 | |
| 5.21 | LK65(Ф65)-102 | Spiral brace spring oil ring | |
| 5.22 | LK65(Ф65)-103 | Ordinary oil ring | |
| 5.23 | LK65(Ф65)-101 | Gas ring | |
| 5.24 | 4L01-3509010-06 | Cylinder gasket | |
| 5.25 | 4L01-3509010-07 | Taking cylinder head | |
| 5.26 | GB95-85 | Washer 8-140HV-Zn.D | |
| 5.27 | GB93-86 | Spring washer 8 | |
| 5.28 | GB5783-86 | Bolt M14x40 | |
| 5.29 | LT710300B-02 | Exhaust pipe joint | |
| 5.30 | 6RQ710200A-09 | Regulator joint | |
| 5.31 | 4L01-3509010-10 | SongYa valve assembly | |
| 5.32 | GB5782-86 | Bolt M8x55-10.9-Zn.D | |
| 6 | 6RBT1.710500FE | Connecting tube, air intake |
