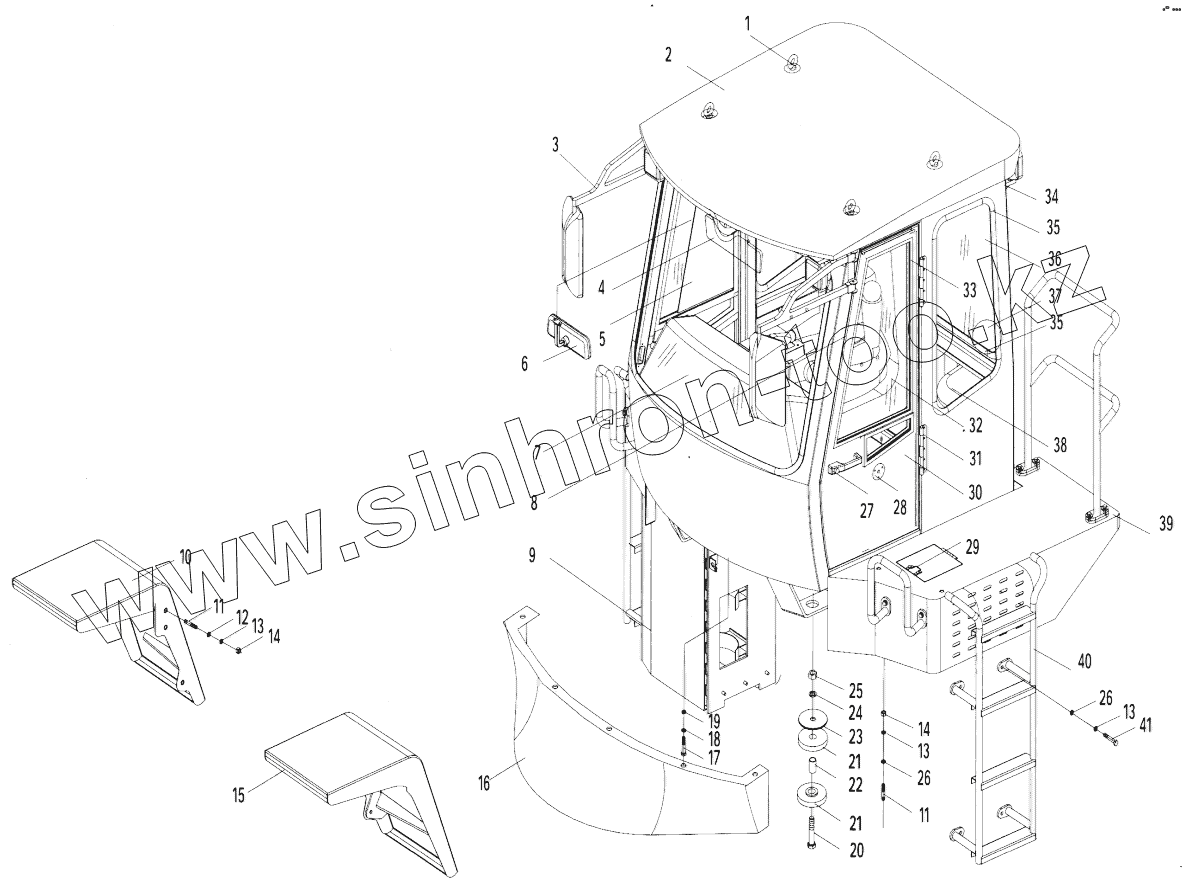

Каталог запасных частей к технике: XGMA XG958. CAB SYSTEM
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
13
14
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
27
28
29
30
30
31
32
32
33
34
35
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 04B0009 | Screw | |
| 2 | 86A0015 | Cover | |
| 3 | 47C0176 | Rearview mirror | |
| 4 | 47C0148 | lightproof Assem | |
| 5 | 51B0037 | Glass | |
| 6 | 47C0147 | Rear view mirror | |
| 7 | 47C0183 | Instrument platform | |
| 8 | 22B0072 | Seal | |
| 9 | 45C0003 | Brake box group | |
| 10 | 40D0003 | Rear fender | |
| 11 | 05B0013 | Blot | |
| 12 | 06B0120 | Washer | |
| 13 | 06B0013 | Washer | |
| 14 | 03B0010 | Nut | |
| 15 | 40D0004 | Rear fender | |
| 16 | 86A0001 | Panel | |
| 17 | 00B0038 | Bolt | |
| 18 | 06B0009 | Washer | |
| 19 | 06B0027 | Washer | |
| 20 | 01B0035 | Snap ring | |
| 21 | 21B0011 | Pillow | |
| 22 | 54A0021 | Tube | |
| 23 | 52A0031 | Cover | |
| 24 | 06B0001 | Lock washer | |
| 25 | 03B0027 | Nut | |
| 26 | 06B0012 | Washer | |
| 27 | 47C0044 | Door lock | |
| 28 | 47C0020 | Lock group | |
| 29 | 47C0190 | Lock | |
| 30 | 47C0168 | Door | |
| 30 | 47C0172 | Door | |
| 31 | 25C0001 | Hinge set | |
| 32 | 47C0009 | Set of seats | |
| 32 | 47C0169 | Port group | |
| 33 | 47C0173 | Port group | |
| 34 | 23D0053 | Cabin | |
| 35 | 22B0073 | Seal | |
| 36 | 51B0039 | Glass | |
| 37 | 51B0038 | Glass | |
| 38 | 47C0011 | Set of seats | |
| 39 | 47C0180 | Access set | |
| 40 | 41D0025 | Stirrup group | |
| 41 | 00B0023 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
