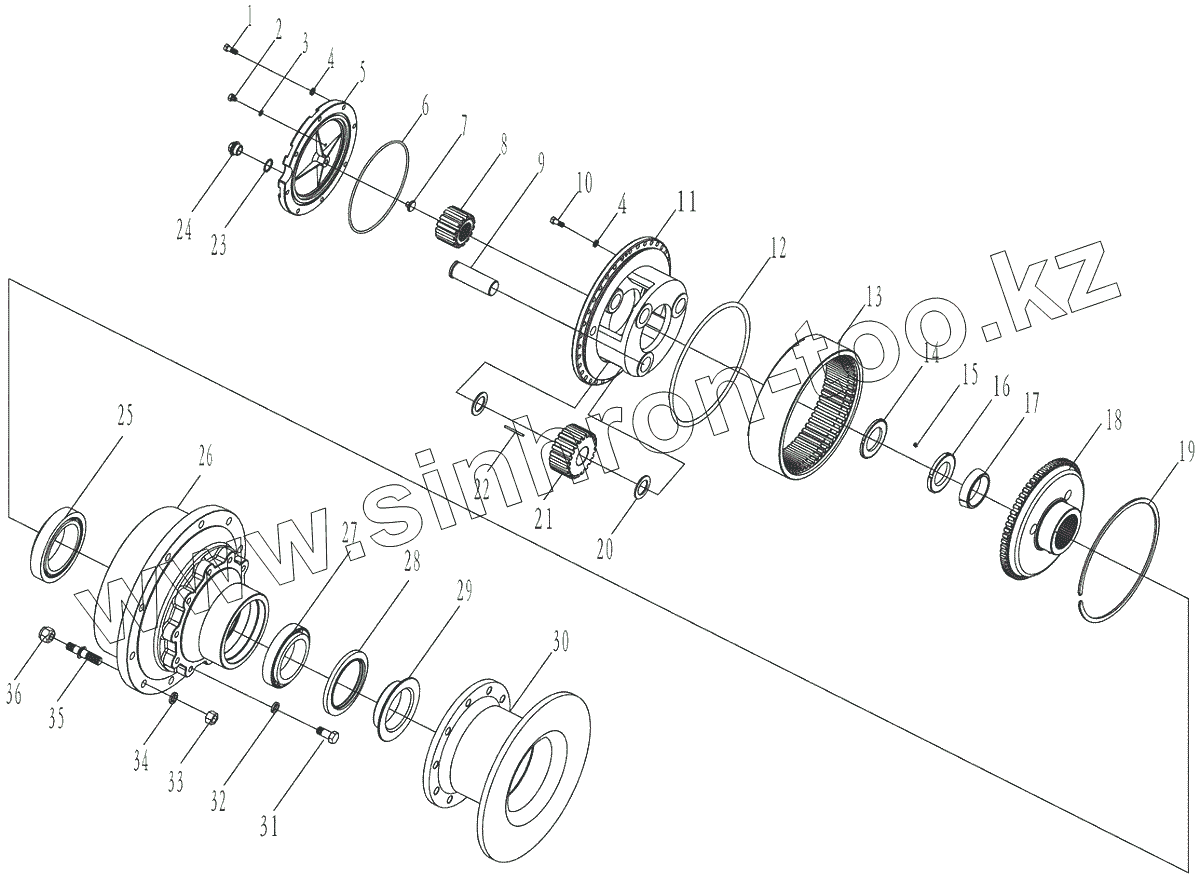

Каталог запасных частей к технике: XGMA XG955III. Wheel edge Assembly
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00B0158 | Bolt | |
| 2 | 02B0034 | Bolt | |
| 3 | 06B0112 | Washer | |
| 4 | 06B0013 | Washer | |
| 5 | 52A0091 | Cover | |
| 6 | 10B0064 | O ring | |
| 7 | 66A0008 | Ping | |
| 8 | 41A0014 | Sun gear | |
| 9 | 60A0068 | Pin | |
| 10 | 00B0036 | Bolt | |
| 11 | 72A0034 | Planetary carrier | |
| 12 | 10B0065 | O ring | |
| 13 | 42A0004 | Ring gear | |
| 14 | 03B0164 | Nut | |
| 15 | 21A0259 | Limit key | |
| 16 | 03B0165 | Nut | |
| 17 | 55A0071 | Ring | |
| 18 | 41A0015 | Ring hub | |
| 19 | 07B0030 | Snap ring | |
| 20 | 55A0072 | Shims | |
| 21 | 41A0016 | Planet | |
| 22 | 39B0009 | Needle | |
| 23 | 06B0072 | Washer | |
| 24 | 03B0113 | Plug | |
| 25 | 33B0015 | Bearing | |
| 26 | 71A0031 | Hub | |
| 27 | 33B0005 | Bearing | |
| 28 | 11B0042 | Seal | |
| 29 | 58A0079 | Seal base | |
| 30 | 52A0024 | Disc | |
| 31 | 01B0049 | Bolt | |
| 32 | 06B0001 | Lock washer | |
| 33 | 03B0057 | Nut | |
| 34 | 06B0065 | Washer | |
| 35 | 02B0036 | Rim bolt | |
| 36 | 03B0071 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
