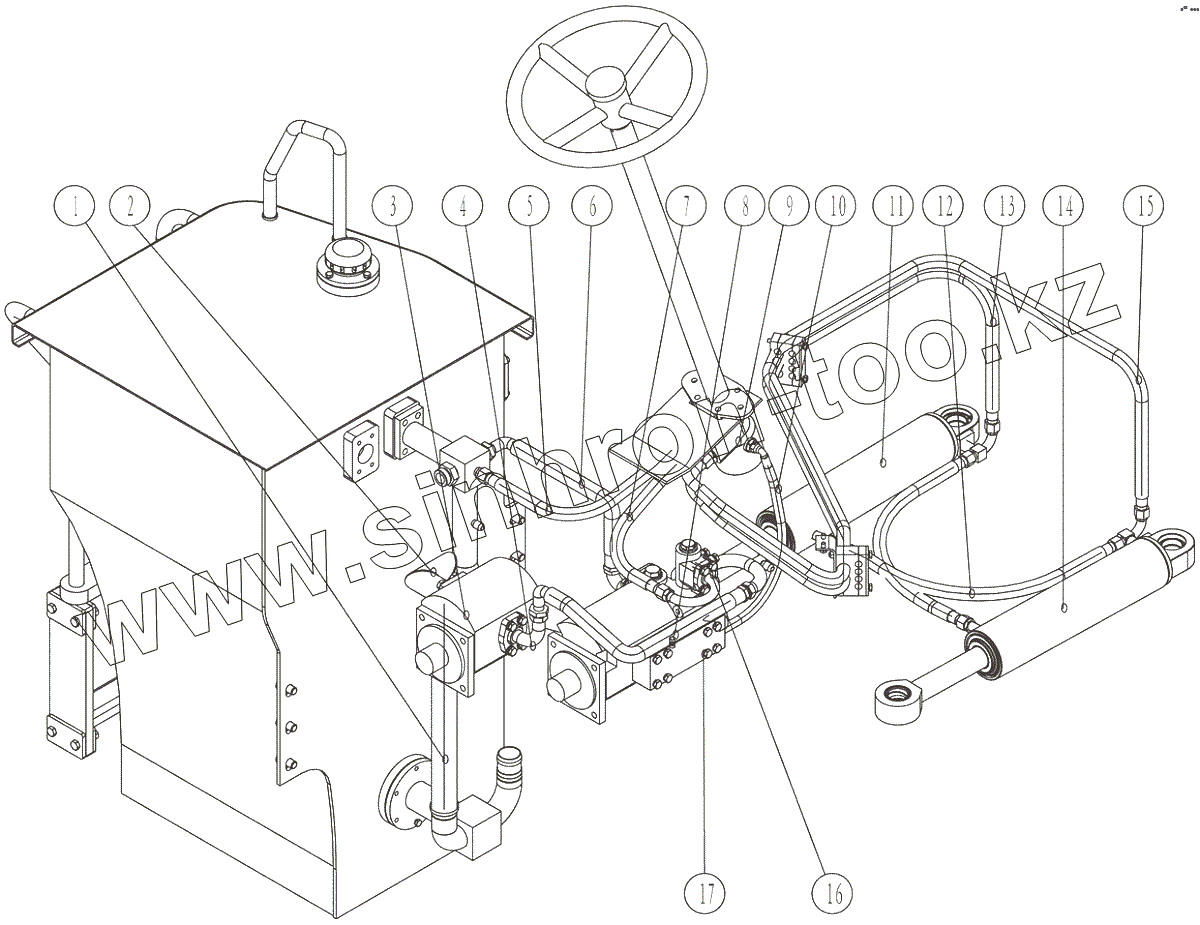

Каталог запасных частей к технике: XGMA XG955III. Turn to hydraulic system
10B0078
17D0553
17D0424
10B0003
17D1821
44C0007
30C0128
30C0254
44C0004
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10B0078 | 10B0078 | Ring shape | |
| 17D0553 | 17D0553 | Steel pipe joint | |
| 17D0424 | 17D0424 | Connector | |
| 10B0003 | 10B0003 | О ring | |
| 17D1821 | 17D1821 | Steel pipe joint | |
| 44C0007 | 44C0007 | Steering Wheel | |
| 30C0128 | 30C0128 | Connector | |
| 30C0254 | 30C0254 | Connector | |
| 44C0004 | 44C0004 | Diverter | |
| 1 | 13B0023 | Hose | |
| 2 | 17D1887 | Tibe | |
| 3 | 11C0021 | Steering pump | |
| 4 | 17D0427 | Tube | |
| 5 | 06C0247 | Hose | |
| 6 | 06C0245 | Hose fittings | |
| 7 | 06C1098 | Hose fittings | |
| 8 | 06C0094 | Hose | |
| 9 | 44C0458 | steering control gap | |
| 10 | 05C0704 | Hose | |
| 11 | 10C0121 | Cylinder | |
| 12 | 06C0166 | Hose fittings | |
| 13 | 06C0164 | Hose | |
| 14 | 10C0120 | Cylinder | |
| 15 | 06C0165 | Hose | |
| 16 | 12C0011 | Valve | |
| 17 | 17D0616 | Steel pipe joint |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
