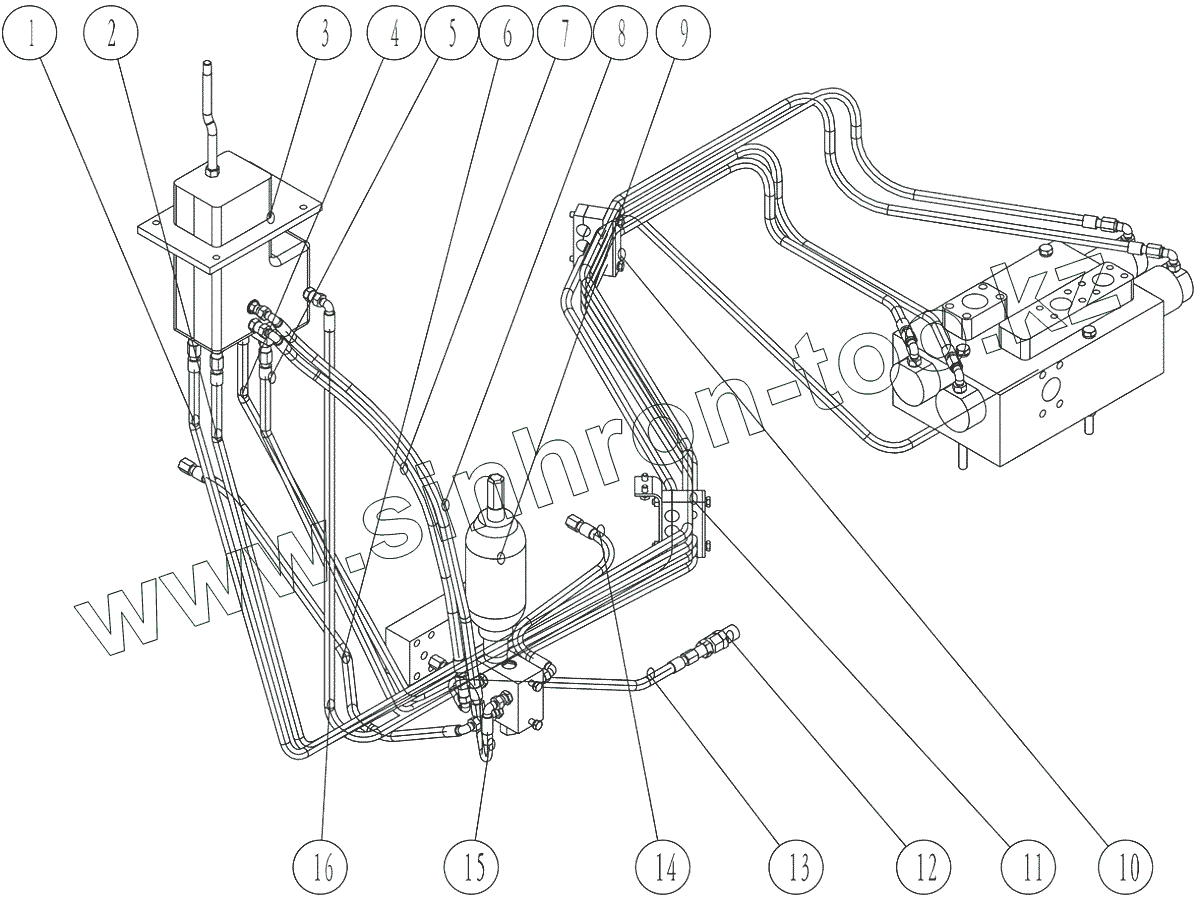

Каталог запасных частей к технике: XGMA XG955III. Pilot hydraulic system
30C0243
30C0279
30C0243
32C0082
32C0081
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 30C0243 | 30C0243 | Connector | |
| 30C0279 | 30C0279 | Connector | |
| 30C0243 | 30C0243 | Connector | |
| 32C0082 | 32C0082 | Connector | |
| 32C0081 | 32C0081 | Connector | |
| 1 | 05C0721 | Hose joint bucket control tube | |
| 2 | 05C0720 | Hose joint lifting control tube | |
| 3 | 12C0233 | Pilot valve | |
| 4 | 05C0719 | Hose connector unloading control tube | |
| 5 | 05C0716 | Hose joint drop control tube | |
| 6 | 05C0725 | Hose connector oil supply valve return pipe | |
| 7 | 05C0727 | Hose connector pilot valve return pipe | |
| 8 | 05C0723 | Hose connector pilot valve inlet pipe | |
| 9 | 33C0692 | Oil supply valve assembly | |
| 10 | 08C0041 | Pipe clamp Assembly | |
| 11 | 08C0042 | Clamp | |
| 12 | 00A0921 | Cormecta | |
| 13 | 05C0728 | Hose connector pressure pipe | |
| 14 | 05C0726 | Hose connector steering pump an oil supply valve | |
| 15 | 05C0717 | Hose joint working pump an oil supply valve | |
| 16 | 05C0718 | Hose connector floating control tube |
