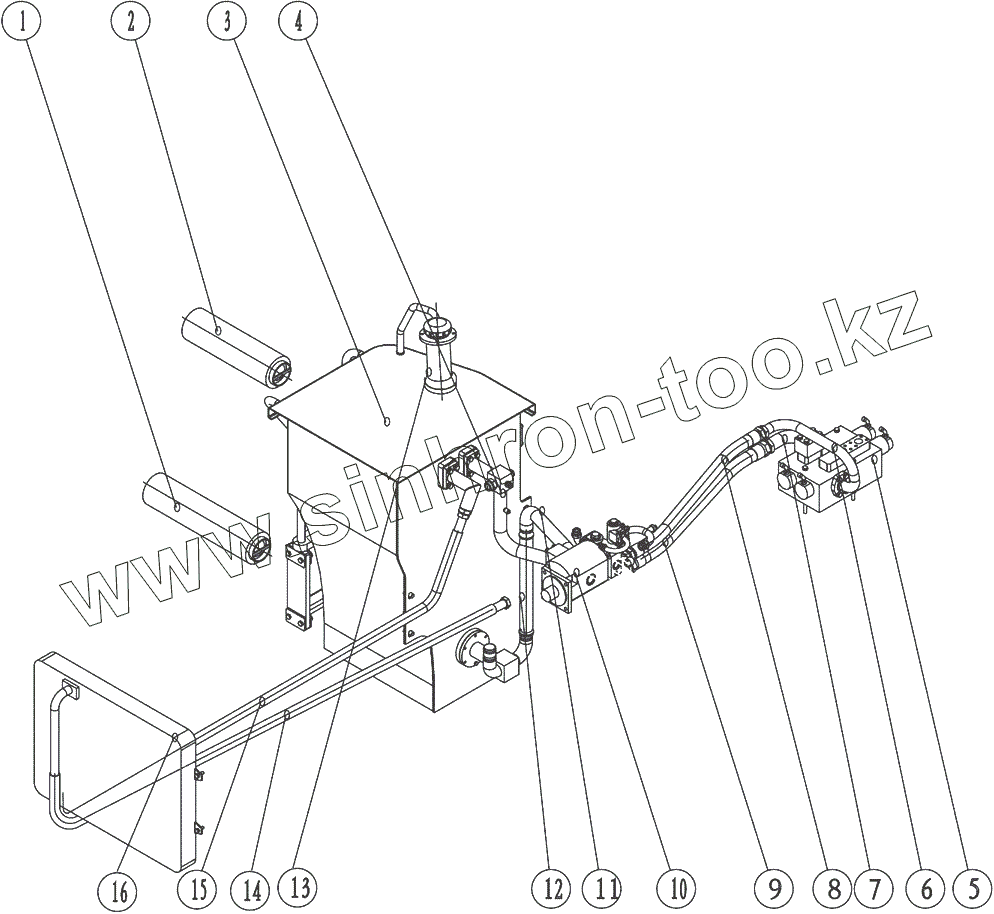

Каталог запасных частей к технике: XGMA XG955III. Offshore oil pipe installation assembly
10B0078
10B0078
10B0078
10B0077
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10B0078 | 10B0078 | Ring shape | |
| 10B0078 | 10B0078 | Ring shape | |
| 10B0078 | 10B0078 | Ring shape | |
| 10B0077 | 10B0077 | Ring shape | |
| 1 | 60C0016 | Oil suction filter | |
| 2 | 60C0224 | Oil suction filter | |
| 3 | 21C0313 | Oil tank | |
| 4 | 17D1884 | Steel pipe joint | |
| 5 | 44C0054 | Working valve mounting assembly | |
| 6 | 17D0146 | Steel pipe joint | |
| 7 | 18D0040 | Steel pipe joint | |
| 8 | 07C0083 | Hose fittings | |
| 9 | 07C0590 | Hose fittings | |
| 10 | 11C0095 | Gear pump | |
| 11 | 17D0149 | Steel pipe joint | |
| 12 | 13B0023 | Hose | |
| 13 | 60C0014 | Refuel Air Filter | |
| 14 | 07C0327 | Hose fittings | |
| 15 | 07C0584 | Hose fittings | |
| 16 | 20C0120 | Radiator assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
