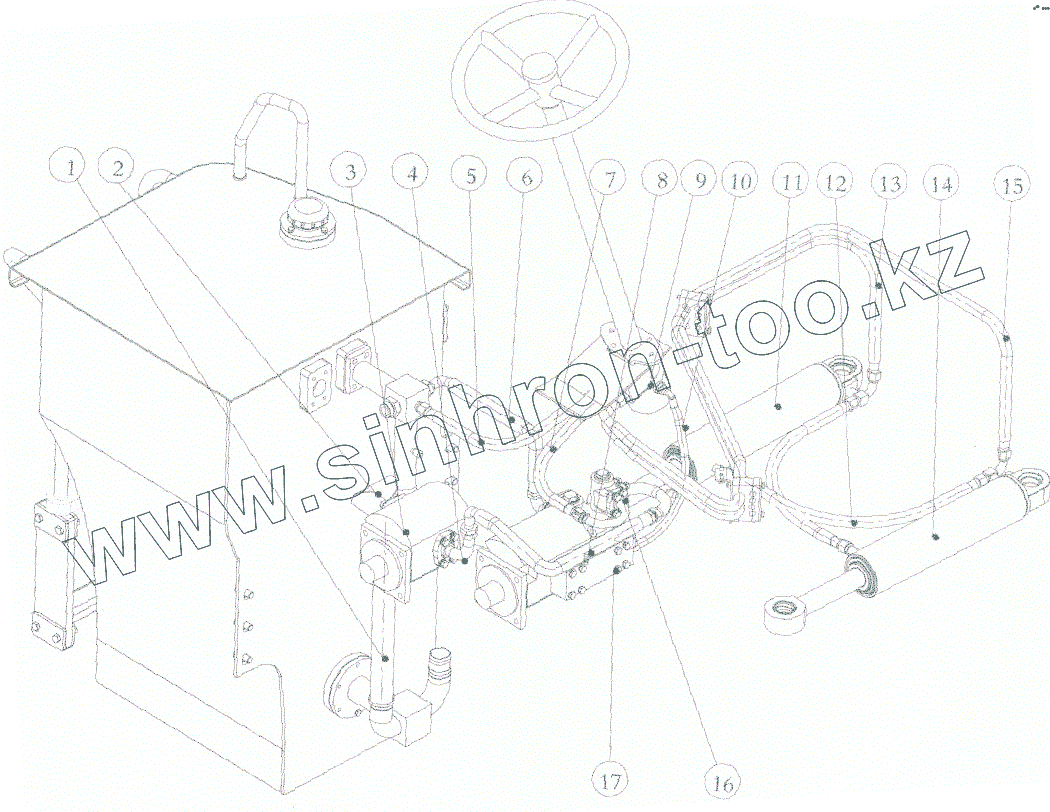

Каталог запасных частей к технике: XGMA XG955II. Go to the system
10B0078
18D0035
17D0130
10B0056
17D0128
17D0129
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10B0078 | 10B0078 | Ring shape | |
| 18D0035 | 18D0035 | Combination valve block | |
| 17D0130 | 17D0130 | Steel pipe joint | |
| 10B0056 | 10B0056 | Ring shape | |
| 17D0128 | 17D0128 | Steel pipe joint | |
| 17D0129 | 17D0129 | Steel pipe joint | |
| 1 | 13B0023 | Hose | |
| 2 | 17D0150 | Steel pipe joint | |
| 3 | 11C0021 | Steering pump | |
| 4 | 17D0127 | Steel pipe joint | |
| 5 | 06C0023 | Hose fittings | |
| 6 | 06C0024 | Hose fittings | |
| 7 | 06C0018 | Hose fittings | |
| 8 | 06C0022 | Hose fittings | |
| 9 | 44C0051 | Steering machine installation assembly | |
| 10 | 05C0047 | Hose fittings | |
| 11 | 10C0045 | Left steering cylinder Assembly | |
| 12 | 06C0021 | Hose fittings | |
| 13 | 06C0020 | Hose fittings | |
| 14 | 10C0044 | Right steering cylinder Assembly | |
| 15 | 06C0019 | Hose fittings | |
| 16 | 33C0085 | Priority unloading valve assembly | |
| 17 | 33C0067 | Combined valve block assembly |
