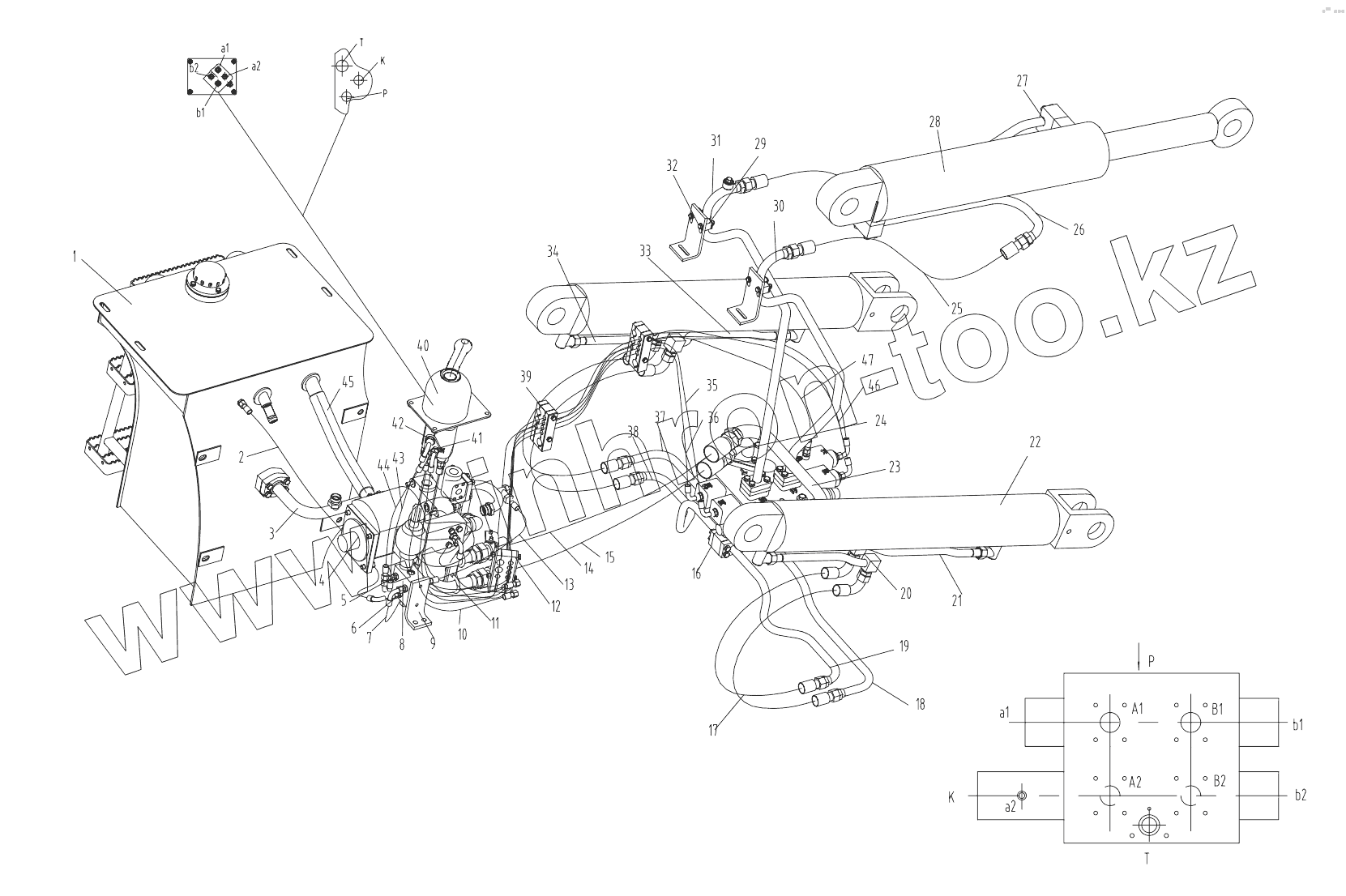

Каталог запасных частей к технике: XGMA XG935III. Working Hydraulic System

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

Позиция на иллюстрации	Заводской номер детали		Название детали
1	21C0278		Hydraulic oil tank
2	05C0610		Hose
3	17D2057		Tube joint
4	11C0028		Gear pump
5	32C0081		Connector
6	30C0243		Connector
7	05C0609		Hose
8	12C0059		Oil supply valve
9	23A0175		Plate
10	05C0537		Hose
11	08C0297		Clamp
12	08C0042		Clamp
13	05C0611		Hose
14	07C0675		Hose
15	07C0676		Hose
16	17D0938		Tube joint
17	06C0862		Hose
18	17D1555		Tube joint
19	17D1556		Tube joint
20	17D1549		Tube joint
21	17D1548		Tube joint
22	10C0523		Boom cylinder
23	17D0323		Tube joint
24	17D0324		Tube joint
25	06C0055		Hose
26	17D0317		Tube joint
27	17D0316		Tube joint
28	10C0524		Tilt cylinder
29	82A0057		Clamp
30	17D0318		Tube joint
31	17D0319		Tube joint
32	23A0262		Plate
33	17D1553		Tube joint
34	17D1551		Tube joint
35	05C0793		Hose
36	05C0792		Hose
37	17D1558		Tube joint
38	17D1554		Tube joint
39	08C0276		Clamp
40	12C0233		Pilot valve
41	30C0243		Connector
42	30C0279		Connector
43	05C0790		Hose
44	05C0791		Hose
45	07C0129		Hose
46	05C0794		Hose
47	05C0795		Hose

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
