Каталог запасных частей к технике: XGMA XG935H. Working Hydraulic System
1
1
2
2
2
2
3
4
5
5
5
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
32
33
34
35
36
36
37
38
39
40
41
42
42
43
43
44
45
46
47
48
49
50
51
52

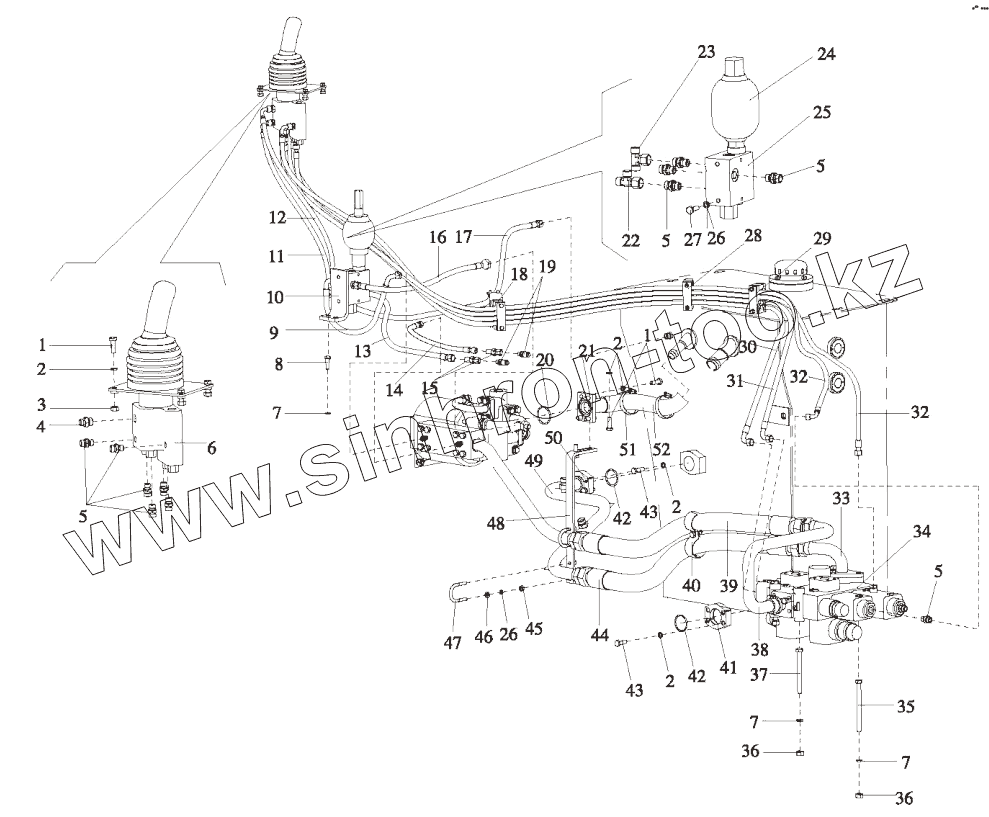

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00В0022 | Bolt | |
| 2 | 06В0003 | Washer | |
| 3 | 03В0026 | Nut | |
| 4 | 30С0279 | Connector | |
| 5 | 30С0243 | Connector | |
| 6 | 12С0994 | Valve | |
| 7 | 06В0013 | Washer | |
| 8 | 00В0023 | Bolt | |
| 9 | 05С0609 | Hose | |
| 10 | 23А0175 | Plate | |
| 11 | 05С0537 | Hose | |
| 12 | 050387 | Hose | |
| 13 | 05С0791 | Hose | |
| 14 | 05С0875 | Hose | |
| 15 | 00А0921 | Connector | |
| 16 | 05С0611 | Hose | |
| 17 | 05С0610 | Hose | |
| 18 | 08С0275 | Clamp | |
| 19 | 30C0001 | Connector | |
| 20 | 10В0014 | O-Ring | |
| 21 | 18D0050 | Tube | |
| 22 | 32C0082 | Connector | |
| 23 | 32C0081 | Connector | |
| 24 | 13C0004 | accumulator | |
| 25 | 12C0059 | Oil supply valve | |
| 26 | 06B0029 | Washer | |
| 27 | 00B0018 | Bolt | |
| 28 | 08C0276 | Clamp | |
| 29 | 08C0042 | Clamp | |
| 30 | 05C0793 | Hose | |
| 31 | 05C0792 | Hose | |
| 32 | 05C0794 | Hose | |
| 33 | 17D0323 | Tube joint | |
| 34 | 12C0991 | Valve | |
| 35 | 01B0075 | Bolt | |
| 36 | 03B0012 | Nut | |
| 37 | 01B0074 | Bolt | |
| 38 | 17D0324 | Tube joint | |
| 39 | 07C0675 | Hose | |
| 40 | 08C0068 | Gamp | |
| 41 | 58A0020 | Flange | |
| 42 | 10B0055 | O-ring | |
| 43 | 00В0002 | 00В0022 | |
| 44 | 07С0676 | Hose | |
| 45 | 03В0005 | Nut | |
| 46 | 06В0027 | Washer | |
| 47 | 02В0045 | U Bolt | |
| 48 | 23А2514 | Plate | |
| 49 | 17D3297 | Tube | |
| 50 | 58А0134 | Flange | |
| 51 | 2480107 | Clamp | |
| 52 | 07С0129 | Hose |
