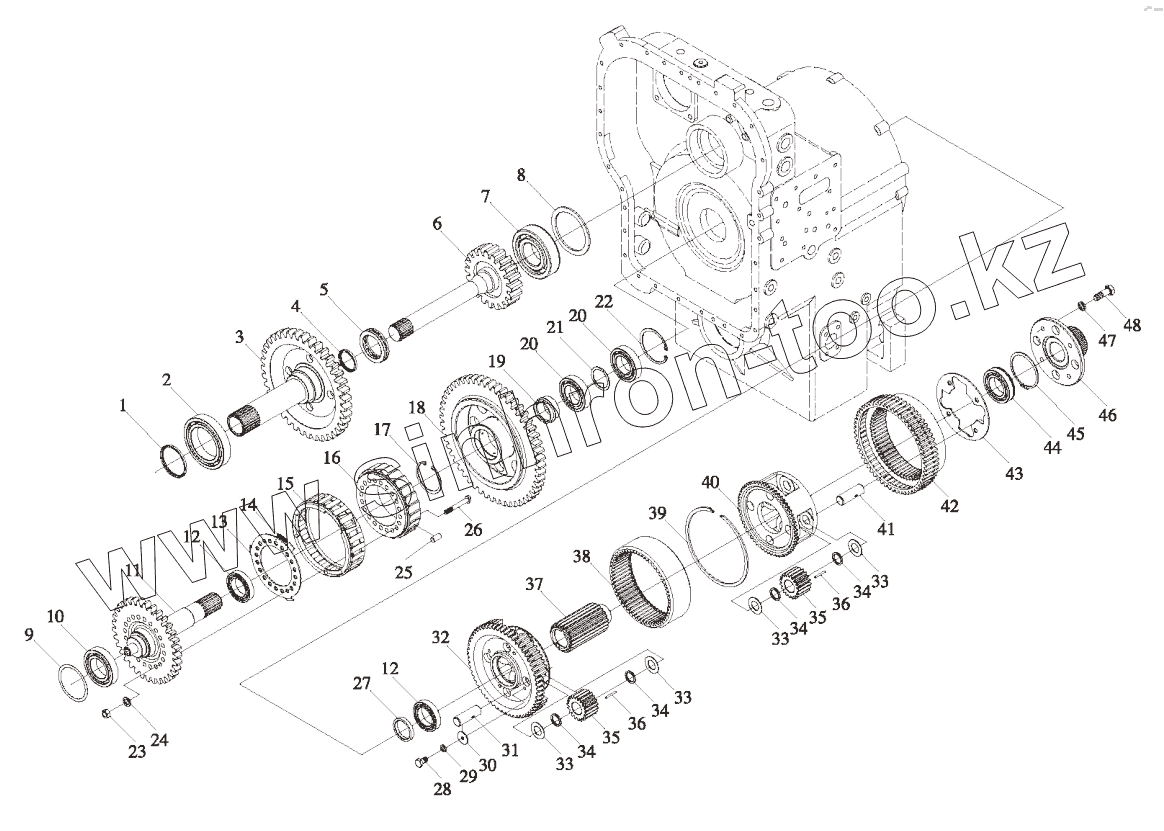

Каталог запасных частей к технике: XGMA XG935H. Transimission System
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
33
34
34
34
34
35
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11В0001 | Seal | |
| 2 | 31В0001 | Bearing | |
| 3 | 41А0001 | Gear | |
| 4 | 11В0002 | Seal | |
| 5 | 36В0001 | Bearing | |
| 6 | 41А0002 | Gear | |
| 7 | 31В0002 | Bearing | |
| 8 | 56А0002 | Spacer | |
| 9 | 56А0003 | Shim | |
| 10 | 31В0003 | Bearing | |
| 11 | 62А0001 | Shaft | |
| 12 | 31В0004 | Bearing | |
| 13 | 52А0126 | Cover | |
| 14 | 52С0050 | Spring | |
| 15 | 55А0148 | Ring | |
| 16 | 49А0001 | Cam | |
| 17 | 07В0033 | Snap ring | |
| 18 | 41А0003 | Gear | |
| 19 | 54А0011 | Snap ring | |
| 20 | 31В0005 | Bearing | |
| 21 | 55А0005 | Ring | |
| 22 | 07B0029 | Snap ring | |
| 23 | 03B0077 | Nut | |
| 24 | 06B0040 | Washer | |
| 25 | 39B0002 | Column | |
| 26 | 02B0007 | Bolt | |
| 27 | 55A0006 | Spacer | |
| 28 | 01B0049 | Bolt | |
| 29 | 06B0009 | Washer | |
| 30 | 06B0031 | Shims | |
| 31 | 61A0004 | Pin | |
| 32 | 72A0005 | Planetary carrier | |
| 33 | 06B0032 | Shims | |
| 34 | 55A0007 | Sleeve | |
| 35 | 41A00G4 | planet | |
| 36 | 39B0007 | Needle | |
| 37 | 41A0005 | Sun gear | |
| 38 | 42A0001 | Ring gear | |
| 39 | 57A0001 | Snap ring | |
| 40 | 72A0054 | Planetary carrier | |
| 41 | 61A0005 | Pin | |
| 42 | 42A0002 | Ring gear | |
| 43 | 52А0185 | Stop pan | |
| 44 | 31В0011 | Bearing | |
| 45 | 07В0005 | Snap ring | |
| 46 | 52А0186 | Connect pan | |
| 47 | 06В0005 | Washer | |
| 48 | 00В1229 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
