Каталог запасных частей к технике: XGMA XG918. XG918I Fenyi ZL15A drive axle (в…Ў)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

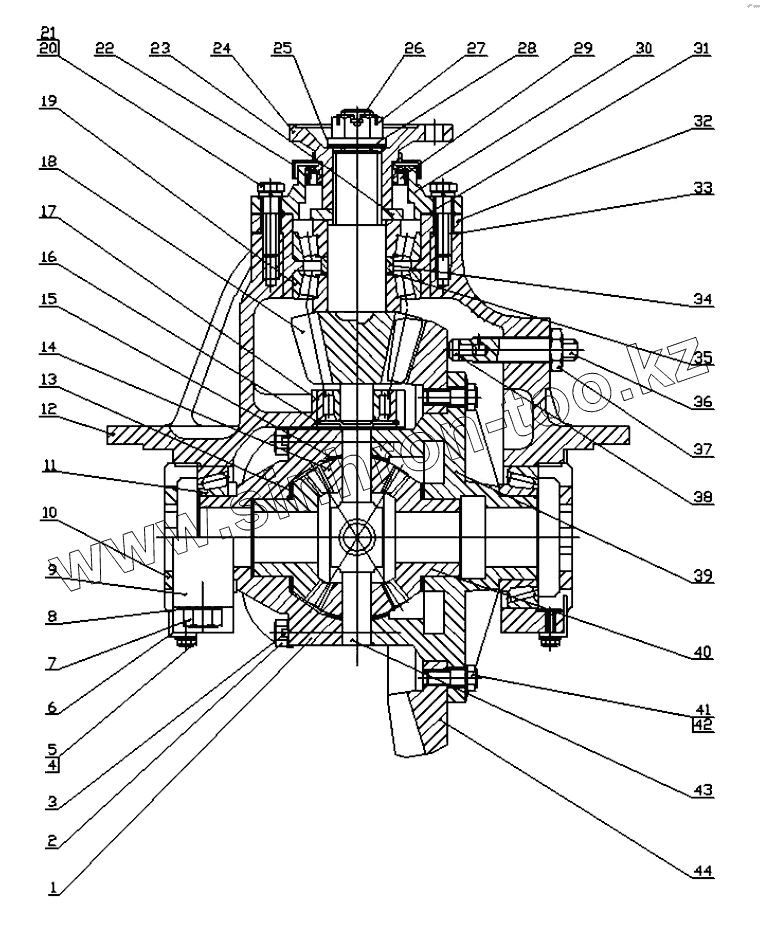

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | BJ130-2403012 | Cover | |
| 2 | BJ130-2403015 | Bolt | |
| 3 | BJ130-2403014 | Washer | |
| 4 | GB5783-86 | Bolt | |
| 5 | GB93-87 | Washer | |
| 6 | PC15·1-9 | Washer | |
| 7 | GB21-76 | Bolt | |
| 8 | GB1230-84 | Washer | |
| 9 | ZL15·2·5-2 | Cover | |
| 10 | BJ130-2403088 | Nut | |
| 11 | GB297-84 | Bearing | |
| 12 | ZL15·2·5-8 | Cover | |
| 13 | BJ130-2403051 | Washer | |
| 14 | BJ130-2403055 | Gear | |
| 15 | BJ130-2403058 | Washer | |
| 16 | GB894.1-86 | Snap ring | |
| 17 | GB283-84 | Bearing | |
| 18 | ZL15·2·5·1-1 | Gear | |
| 19 | GB297-84 | Bearing | |
| 20 | GB5785-86 | Bolt | |
| 21 | GB93-87 | Washer | |
| 22 | BJ130-2402034 | Dust shield | |
| 23 | ZL15·2·5·1-6 | Washer | |
| 24 | ZL15A·3·1-1 | Washer | |
| 25 | ZL15·2·5·1-9 | Washer | |
| 26 | GB91-86 | Pin | |
| 27 | GB60-76 | Nut | |
| 28 | ZL30·06·1-28 | Washer | |
| 29 | BJ130-2402052 | Seal | |
| 30 | ZL15·2·5·1-7 | Cover | |
| 31 | ZL15·2·5·1-5 | Washer | |
| 32 | ZL15·2·5·1-2 | Sleeve | |
| 33 | ZL15·2·5-1 | Washer | |
| 34 | ZL15·2·5·1-3 | Sleeve | |
| 35 | ZL15·2·5·1-4 | Washer | |
| 36 | ZL15·2·5-5 | Bolt | |
| 37 | GB6173-86 | Nut | |
| 38 | ZL15·2·5-6 | Shaft | |
| 39 | ZL15·2·5-3 | Cover | |
| 40 | BJ130-2403050 | Gear | |
| 41 | PR35·19·1-3 | Bolt | |
| 42 | GB93-87 | Washer | |
| 43 | BJ130-2403061 | Shaft | |
| 44 | ZL15·2·5-7 | Gear |
