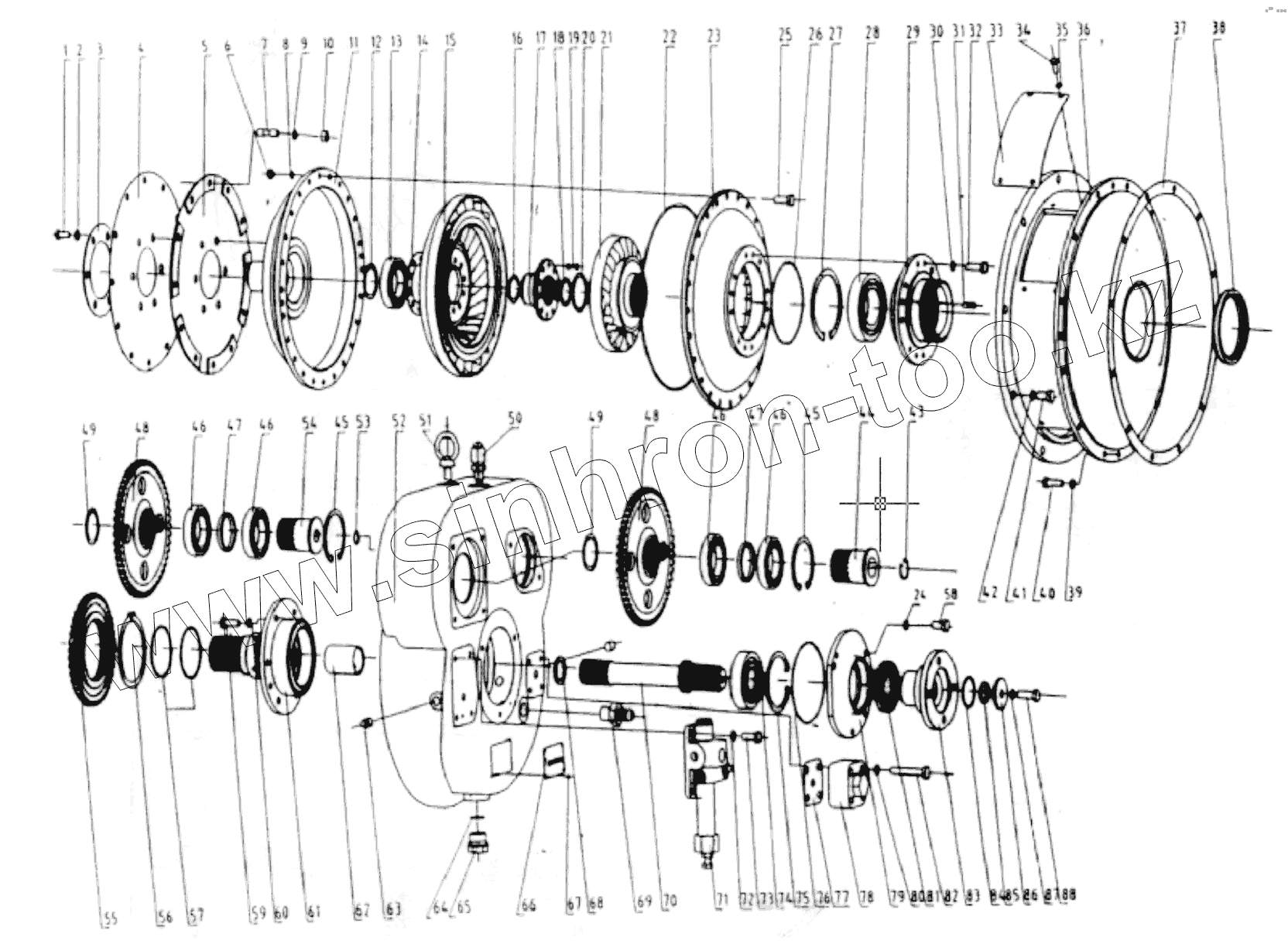

Каталог запасных частей к технике: XGMA XG918. Torque Convertor
1
2
3
4
4
5
5
6
7
7
8
9
9
10
10
11
12
13
14
15
15
16
17
18
19
20
21
21
22
23
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
39
40
41
41
42
42
43
44
45
45
46
46
46
46
47
47
48
48
49
49
50
51
52
53
54
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 01010-51225 | Bolt | |
| 2 | 01602-11236 | Washer | |
| 3 | YB315Z5-04 | Plate | |
| 4 | YJ265A-00002 | Plate | |
| 4 | YJ265-00002 | Plate | |
| 5 | YJ265A-10000 | Plate | |
| 5 | YJ265-10000 | Plate | |
| 6 | 01580-10809 | Nut | |
| 7 | 01124-51025 | Bolt | |
| 7 | 01124-51225 | Bolt | |
| 8 | 01602-10825 | Washer | |
| 9 | 01602-11030 | Washer | |
| 9 | 01602-11236 | Washer | |
| 10 | 01580-11008 | Nut | |
| 10 | 01580-11210 | Nut | |
| 11 | YJ280-1C-00005 | Cover | |
| 12 | 04064-05020 | Snaping ring | |
| 13 | GB276-89 | Bearing | |
| 14 | YJ280-4A-10002 | Plate | |
| 15 | YJ280-1A-10001 | Turbine | |
| 15 | YJ280-4A-10001 | Turbine | |
| 16 | 04064-03818 | Snaping ring | |
| 17 | YJ280-4A-10001 | Turbine | |
| 18 | 04064-03818 | Snaping ring | |
| 19 | 04400-00820 | Screw | |
| 20 | 04064-05520 | Snaping ring | |
| 21 | YJ280-1A-00002 | Stator | |
| 21 | YJ280-4A-00002 | Stator | |
| 22 | GB3452.1-82 | O-ring | |
| 23 | YJ280-1A-00001 | Impeller | |
| 23 | YJ280-4A-00006 | Impeller | |
| 24 | 01602-11030 | Washer | |
| 25 | 01010-50835 | Bolt | |
| 26 | GB1235-76 | O-ring | |
| 27 | GB893-86 | Snaping ring | |
| 28 | GB276-89 | Bearing | |
| 29 | YJ280-4A-00015 | Impeller seat | |
| 30 | 01602-10825 | Washer | |
| 31 | ZL30D-11-22 | Pin | |
| 32 | 01010-50822 | Bolt | |
| 33 | YJ280-1B-00002 | Plate | |
| 33 | YJ280-4A-00007 | Plate | |
| 34 | 01010-50816 | Bolt | |
| 35 | 01602-10825 | Washer | |
| 36 | YJ280-1B-00001 | Middle | |
| 36 | YJ280-4A-00001 | Middle | |
| 37 | YJ280-4A-00016 | Washer | |
| 38 | ZL30D-11-54 | Seal | |
| 39 | 01602-11030 | Washer | |
| 40 | 01010-51030 | Bolt | |
| 41 | 01010-51235 | Bolt | |
| 41 | 01010-51040 | Bolt | |
| 42 | 01602-11236 | Washer | |
| 42 | 01602-11030 | Washer | |
| 43 | 04064-02010 | Washer | |
| 44 | YJ280-4A-00017 | Shaft | |
| 45 | 04064-08025 | Washer | |
| 46 | GB276-89 | Bearing | |
| 47 | YJ280-4A-00009 | Spacer | |
| 48 | YJ280-4A-00008 | Gear | |
| 49 | 04064-05020 | Snaping ring | |
| 50 | 07030-00312 | Breather | |
| 51 | 04530-11222 | Screw | |
| 52 | YJ280-1C-00001 | Box | |
| 53 | 04064-03012 | Washer | |
| 54 | YJ280-4A-00010 | Shaft | |
| 54 | YJ280-4A-00010X | Shaft | |
| 55 | YJ265-000161 | Driving gear | |
| 56 | 04064-01030 | Snaping ring | |
| 57 | ZL30D-11-19 | Seal ring | |
| 58 | 01010-51030 | Bolt | |
| 59 | 01010-51030 | Bolt | |
| 60 | 01602-11030 | Washer | |
| 61 | YJ280-4A-00014 | Stator seat | |
| 62 | YJ280-4A-00011 | Spacer | |
| 63 | 07043-00312 | Bolt | |
| 64 | 07002-02434 | O-ring | |
| 65 | 07044-12412A | Bolt | |
| 66 | 09607-05080 | Clip | |
| 67 | 04418-03060 | Screw | |
| 68 | YJ265-00014 | Seal ring | |
| 69 | YJ280-4C-00007 | Elbow | |
| 70 | YJ280-1C-00002 | Turbine shaft | |
| 71 | YJ320-01000 | Valve | |
| 72 | 01602-11030 | Washer | |
| 73 | 01010-51025 | Bolt | |
| 74 | GB276-89 | Bearing | |
| 75 | 04065-09030 | Snaping ring | |
| 76 | 07000-02125 | O-ring | |
| 77 | YJ265-00012 | Plate | |
| 78 | YJ265-40000 | Valve | |
| 79 | YJ280-1C-00003 | Oil seal | |
| 80 | 01602-11030 | Washer | |
| 81 | 07012-20055 | Oil seal | |
| 82 | 01010-51095 | Bolt | |
| 83 | YJ315D-00020A | Flange | |
| 84 | YJ315D-00021 | Washer | |
| 85 | YJ315D-00022 | O-ring | |
| 86 | YJ280-1C-00004 | Washer | |
| 87 | 01602-11236 | Washer | |
| 88 | 01010-51235 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
