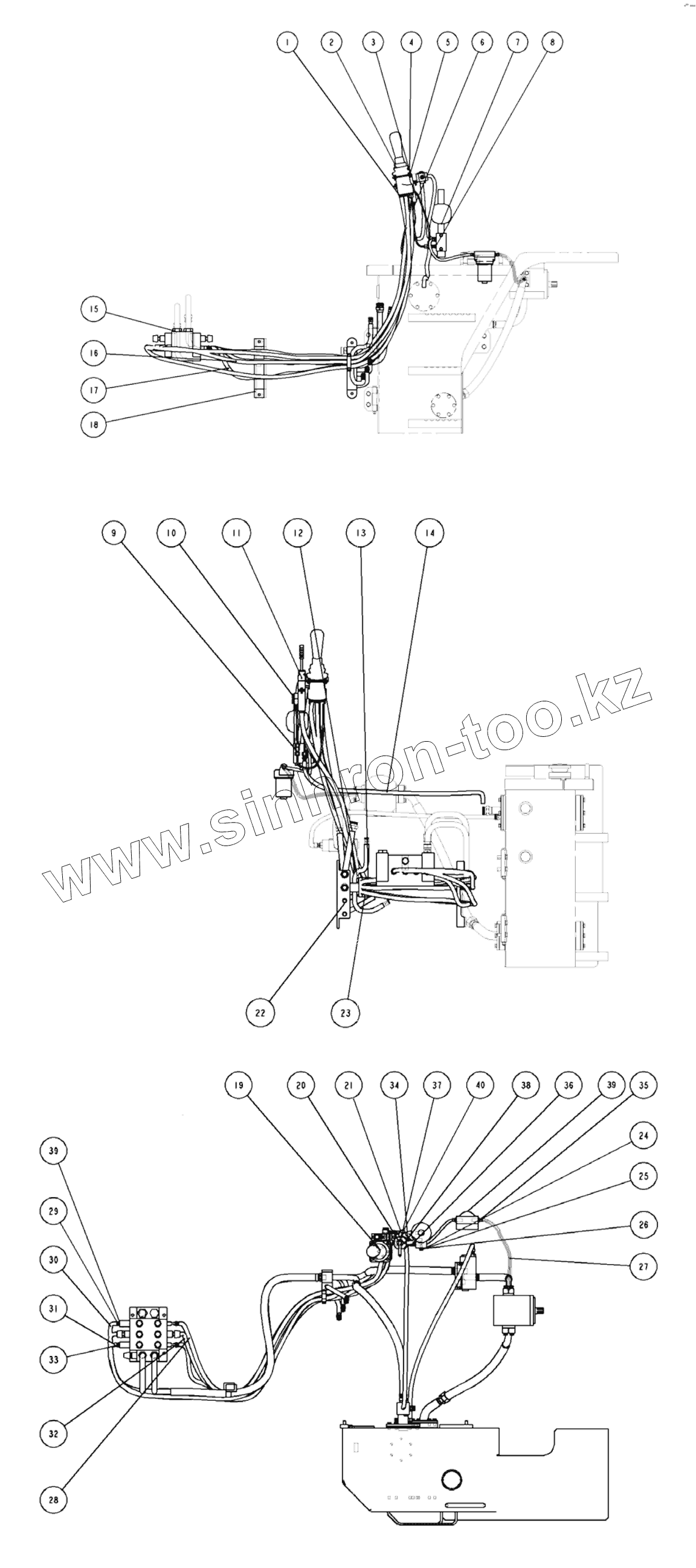

Каталог запасных частей к технике: XGMA XG918. Hydraulic System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00А0360 | Hose fitting | |
| 2 | 12С0249 | Valve | |
| 3 | 00В0015 | Bolt | |
| 4 | 03В0013 | Nut | |
| 5 | 06В0021 | Washer | |
| 6 | 17D0869 | Tube | |
| 7 | 12С0248 | Valve | |
| 8 | 00А0358 | Hose fitting | |
| 9 | 32С0041 | Hose fitting | |
| 10 | 02В0173 | Bolt | |
| 11 | 12С0250 | Valve | |
| 12 | 01В0266 | Bolt | |
| 13 | 82А0207 | Nip | |
| 14 | 05С0383 | Hose | |
| 15 | 12С0247 | Valve | |
| 16 | 05С0380 | Hose | |
| 17 | 05С0381 | Hose | |
| 18 | 82А0208 | Nip | |
| 19 | 17D0870 | Tube | |
| 20 | 17D0871 | Tube | |
| 21 | 17D0868 | Tube | |
| 22 | 05D0015 | Nip | |
| 23 | 82А0206 | Nip | |
| 24 | 00В0019 | Bolt | |
| 25 | 06В0009 | Washer | |
| 26 | 06В0027 | Washer | |
| 27 | 05С0384 | Hose | |
| 28 | 05С0377 | Hose | |
| 29 | 00А0387 | Hose fitting | |
| 30 | 05С0378 | Hose | |
| 31 | 05С0382 | Hose | |
| 32 | 05С0379 | Hose | |
| 33 | 06В0372 | Washer | |
| 34 | 02А0068 | Hose fitting | |
| 35 | 00А0359 | Hose fitting | |
| 36 | 37А0176 | Tube | |
| 37 | 37А0177 | Tube | |
| 38 | 37А0178 | Tube | |
| 39 | 06С0120 | Filter | |
| 40 | 12С0251 | Valve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
