Каталог запасных частей к технике: XGMA XG31651. Worm gear box assembly
1
2
3
4
5
6
7
8
9
9
10
10
11
12
12
13
13
14
15
15
16
16
16
17
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

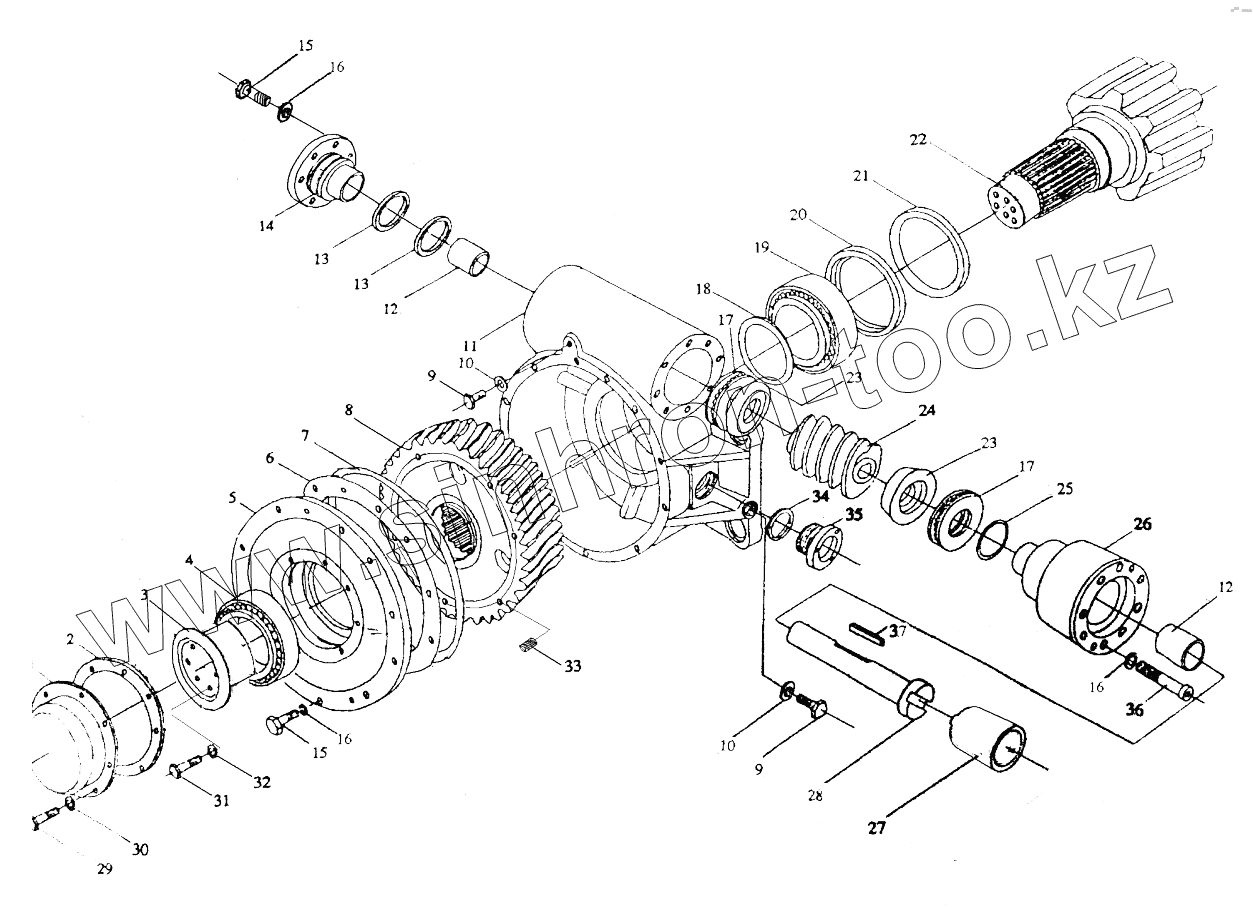

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | HX8000-7 | Cover | |
| 2 | HX8000-4 | Seals | |
| 3 | HX8000-6 | Bearing Cover | |
| 4 | GB/T297-94 | Bearing | |
| 5 | HX8000-2 | Cover | |
| 6 | HX8000-18 | Mat | |
| 7 | GB3452.1-92 | O-Ring | |
| 8 | HX8000B.1 | Turbine | |
| 9 | JB1001-77 | Plug | |
| 10 | JB1002-77 | Washer | |
| 11 | HX8000-16 | Shell | |
| 12 | HX8000-12 | Sleeve | |
| 13 | GB3452.1-92 | O-Ring | |
| 14 | HX8000-17 | Bearing Cage | |
| 15 | GB/T5782-2000 | Bolt | |
| 16 | GB/T93-87 | Washer | |
| 17 | GB/T301-95 | Bearing | |
| 18 | HX8000-5 | Adjust mat | |
| 19 | GB/T297-94 | Bearing | |
| 20 | HX8000-19 | Ring | |
| 21 | GB/T9877.1-88 | Seal | |
| 22 | HX8000B-1 | Driving wheel | |
| 23 | HX8000-13 | Dish | |
| 24 | HX8000B-2 | Worm | |
| 25 | GB3452.1-92 | O-Ring | |
| 26 | HX8000-9 | Bearing Cage | |
| 27 | HX8000-10 | Adapter sleeve | |
| 28 | HX8000-11 | Axis | |
| 29 | GB/T5783-2000 | Bolt | |
| 30 | GB/T93-87 | Washer | |
| 31 | GB/T70.1-2000 | Screw | |
| 32 | GB/T93-87 | Washer | |
| 33 | GB/T73-85 | Bolt | |
| 34 | JB1002-77 | Washer | |
| 35 | JB/T7941.2-95 | Oil mark | |
| 36 | GB/T70.1-2000 | Screw | |
| 37 | HX8000-1 | Key |
