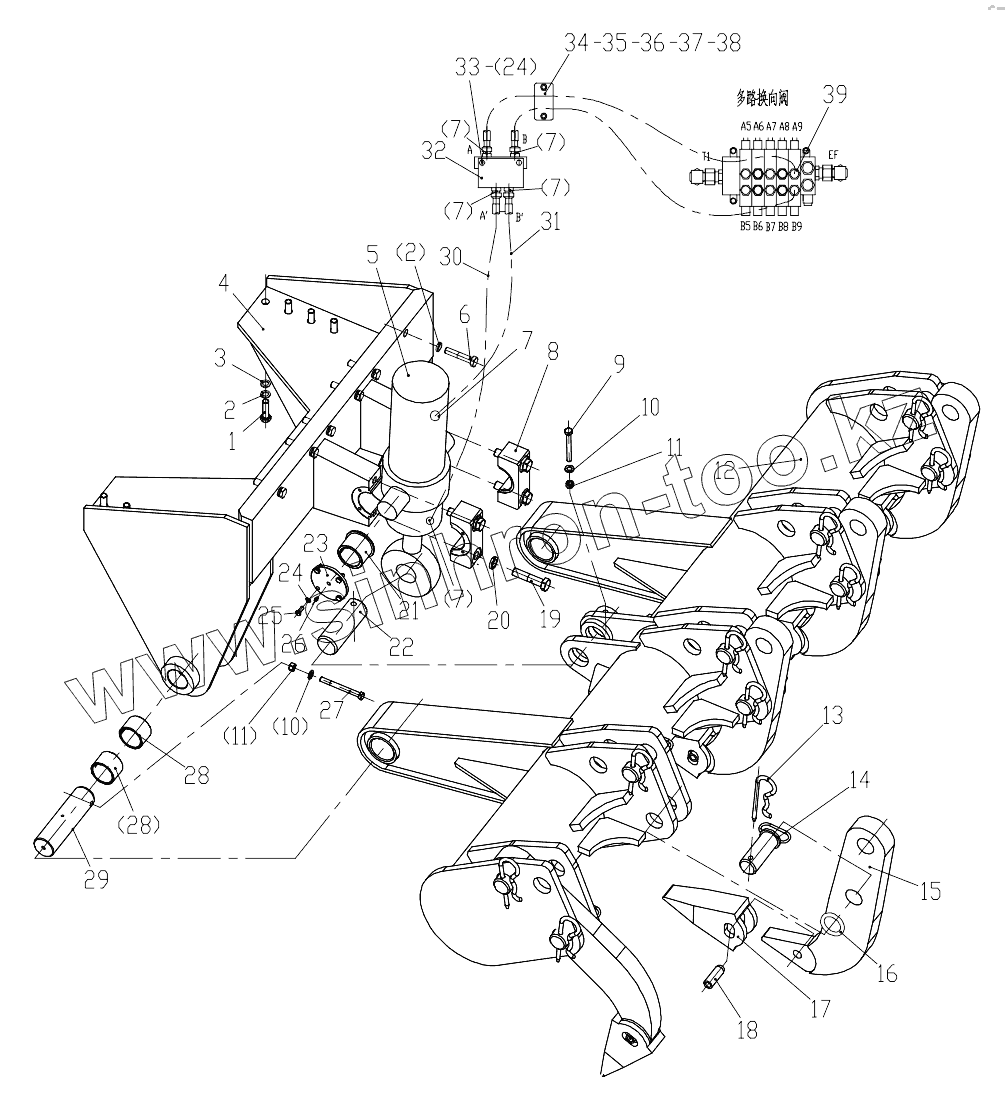

Каталог запасных частей к технике: XGMA XG31651. Ripper-Scarifier
1
2
2
3
4
5
6
7
7
7
7
7
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB5782 | Bolt | |
| 2 | GB93 | Washer | |
| 3 | GB96 | Washer | |
| 4 | 81010077 | Support | |
| 5 | HSGF-130/70X300AE | Cylinder | |
| 6 | GB5782 | Bolt | |
| 7 | 1CM-22-18WD | Adapter | |
| 8 | 30610138 | Stand | |
| 9 | GB5782 | Bolt | |
| 10 | GB93 | Washer | |
| 11 | GB6170 | Nut | |
| 12 | 82040399 | Stand | |
| 13 | 35040018 | Pin | |
| 14 | 82210128 | Pin | |
| 15 | 30500133 | Knife Plate | |
| 16 | 30010015 | Washer | |
| 17 | 36020107 | Tooth | |
| 18 | GB879.1 | Pin | |
| 19 | GB5782 | Bolt | |
| 20 | GB93 | Washer | |
| 21 | 33060200 | Copper Bush | |
| 22 | 35050077 | Pin | |
| 23 | 33020170 | Cover | |
| 24 | GB93 | Washer | |
| 25 | GB5783 | Washer | |
| 26 | JB7940.1 | Oil Cup | |
| 27 | GB5782 | Bolt | |
| 28 | 33060201 | Copper Bush | |
| 29 | 35050076 | Pin | |
| 30 | 2SL12L/L90-700 | Hydraulic Hose | |
| 31 | 2SL12L/L90-1000 | Hydraulic Hose | |
| 32 | 9302540 | Double-direction Hydraulic-clock | |
| 33 | GB5782 | Bolt | |
| 34 | 25040067 | Pipe Clip | |
| 35 | 30060200 | Plate | |
| 36 | GB901 | Stud | |
| 37 | GB6170 | Nut | |
| 38 | GB6172.1 | Nut | |
| 39 | 1CH-22-22 | Adapter |
