Каталог запасных частей к технике: XGMA XG31651. Hydraulic Steering System 2
1
1
1
2
3
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
18
18
18
18
18
18
18
19
20
21
22

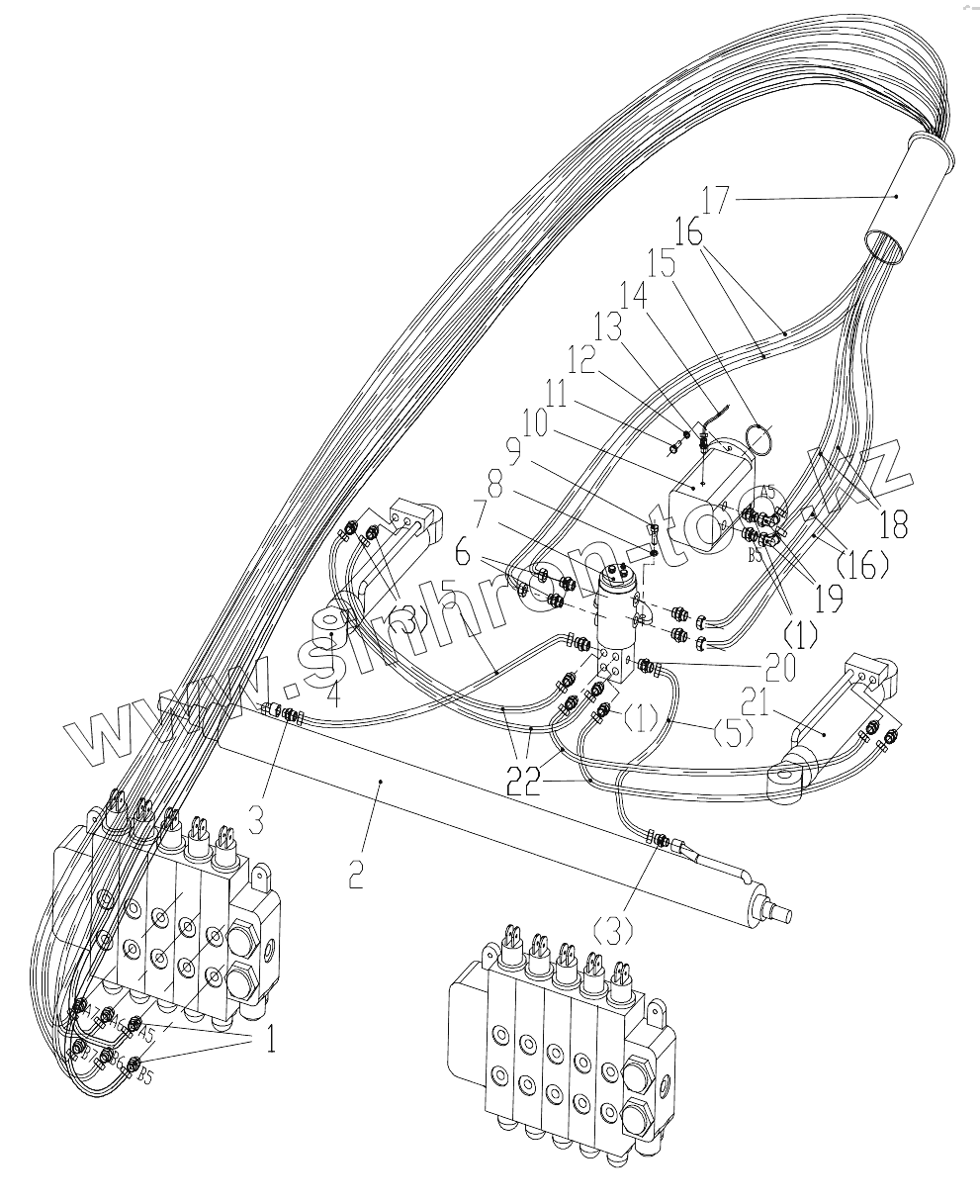

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1CH-22-22 | Adapter | |
| 2 | 22080022 | Cylinder | |
| 3 | 1CM-22-18WD | Adapter | |
| 4 | 22080025 | Cylinder | |
| 5 | 21030141 | Hydraulic Hose | |
| 6 | 2CD-22-24 | Adapter | |
| 7 | 81040118 | Valve | |
| 8 | GB93 | Washer | |
| 9 | GB5783 | Washer | |
| 10 | 22040007 | Hydro Motor | |
| 11 | GB5783 | Washer | |
| 12 | GB93 | Washer | |
| 13 | 1CM-14-10WD | Adapter | |
| 14 | 21030223 | Hydraulic Hose | |
| 15 | GB3452.1 | O-Ring | |
| 16 | 21020186 | Hydraulic Hose | |
| 16 | 21020186 | Hydraulic Hose | |
| 16 | 21020151 | Hydraulic Hose | |
| 16 | 21020186 | Hydraulic Hose | |
| 16 | 21020186 | Hydraulic Hose | |
| 16 | 21020151 | Hydraulic Hose | |
| 16 | 21020183 | Hydraulic Hose | |
| 17 | 25050092 | Bushing Ring | |
| 18 | 21020157 | Hydraulic Hose | |
| 18 | 21020157 | Hydraulic Hose | |
| 18 | 21020157 | Hydraulic Hose | |
| 18 | 21020151 | Hydraulic Hose | |
| 18 | 21020151 | Hydraulic Hose | |
| 18 | 21020151 | Hydraulic Hose | |
| 18 | 21020151 | Hydraulic Hose | |
| 19 | 2C9-22 | Adapter | |
| 20 | 1CO-22-10 | Adapter | |
| 21 | 22080034 | Cylinder | |
| 22 | 21020031 | Hydraulic Hose |
