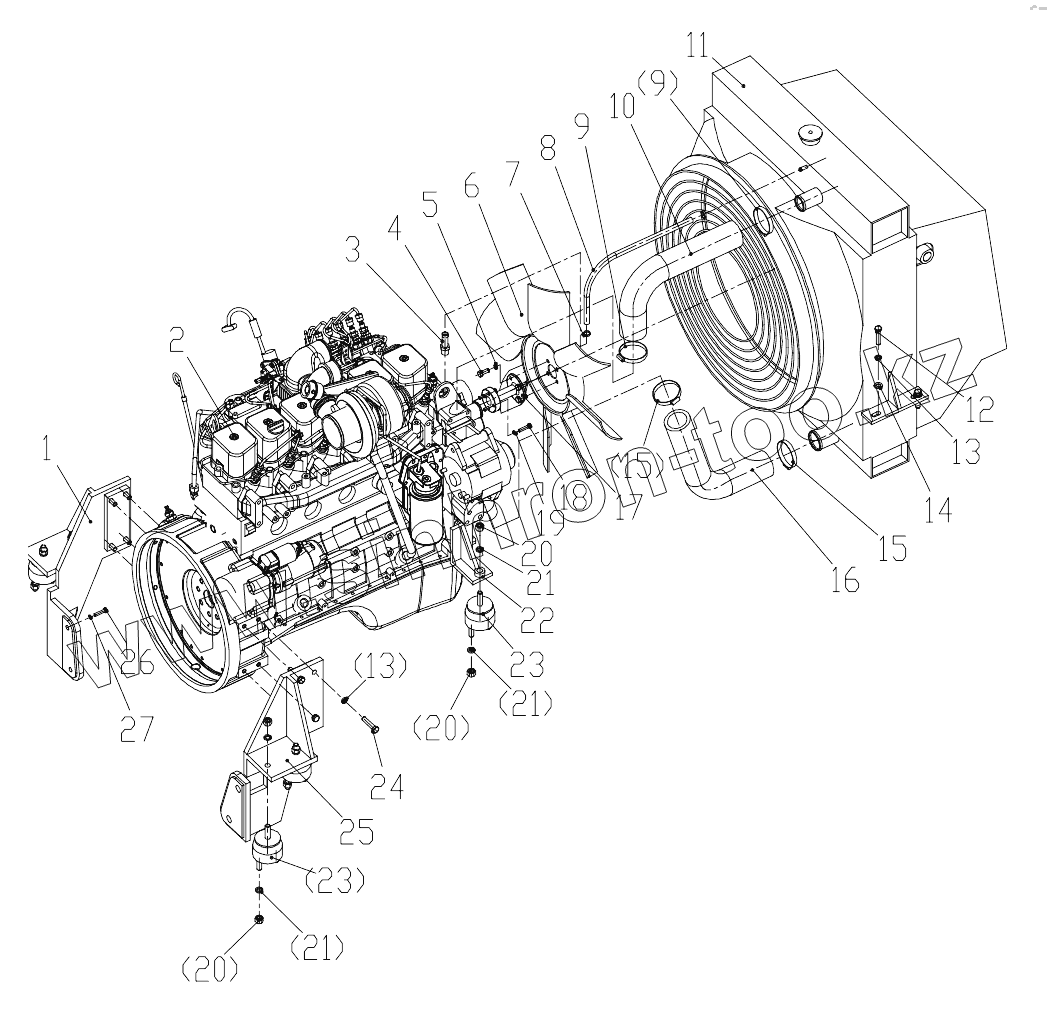

Каталог запасных частей к технике: XGMA XG31651. Engine Assembly
82040549
1
2
2
2
2
2
3
4
5
7
8
9
9
10
10
11
12
13
13
14
15
15
16
17
18
19
20
20
20
21
21
21
22
23
23
24
25
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 82040549 | 82040549 | Bracket | |
| 1 | 82040179 | Bracket | |
| 2 | 23080041 | Diesel Engine | |
| 2 | 23080026 | Diesel Engine | |
| 2 | 23080053 | Diesel Engine | |
| 2 | 23080050 | Diesel Engine | |
| 2 | 23080052 | Diesel Engine | |
| 3 | 20080017 | Adapter | |
| 4 | GB5783 | Washer | |
| 5 | GB93 | Washer | |
| 7 | 179904-11~19 | Clip Ring | |
| 8 | 36050059 | Hose | |
| 9 | 43828D-51~76 | Clip Ring | |
| 10 | 21050109 | Hose | |
| 11 | 23090028 | Radiator Assembly | |
| 12 | GB5783 | Washer | |
| 13 | GB93 | Washer | |
| 14 | GB97.1 | Screw | |
| 15 | 43828C-40~64 | Clip Ring | |
| 16 | 21050111 | Hose | |
| 17 | 33040241 | Flang | |
| 18 | GB5783 | Washer | |
| 19 | GB93 | Washer | |
| 20 | GB6170 | Nut | |
| 21 | GB93 | Washer | |
| 22 | Bracket | Bracket | |
| 23 | D6114A-86-60-00 | Absorber | |
| 24 | GB5783 | Washer | |
| 25 | 82040180 | Bracket | |
| 25 | 82040548 | Bracket | |
| 26 | GB5783 | Washer | |
| 27 | GB93 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
