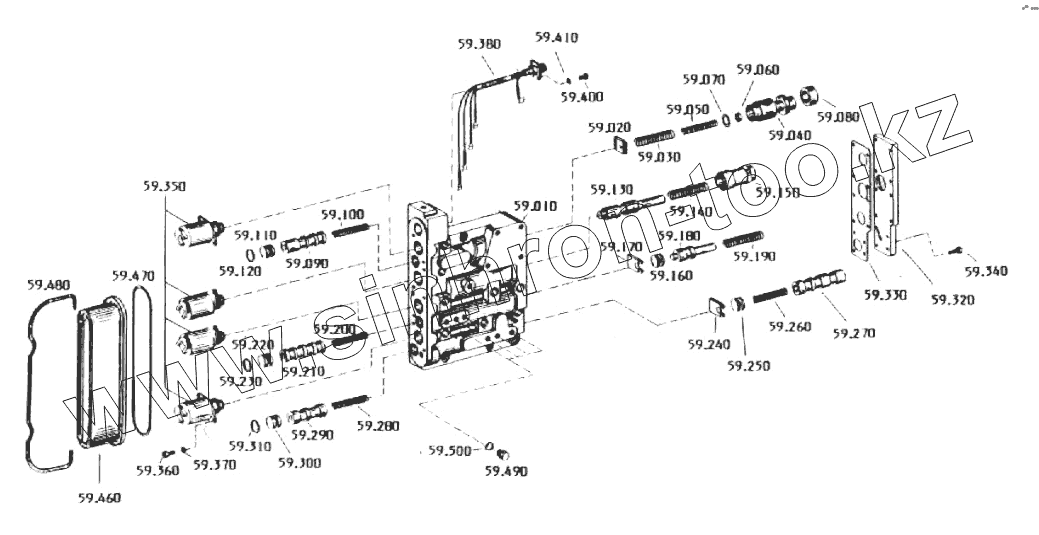

Каталог запасных частей к технике: XGMA XG31651. Control Valve Assembly
010
020
030
040
050
060
070
080
090
100
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
370
380
400
410
460
470
470
480
470
470
480
490
500
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 010 | 4642 306 152 | Valve body | |
| 020 | 4620 306 248 | Locking plate | |
| 030 | 0732 040 838 | Spring | |
| 040 | 4620 306 245 | Valve core | |
| 050 | 0732 040 837 | Spring | |
| 060 | 0730 061 778 | Screw-in sleeve | |
| 070 | 0769 120 747 | Shim | |
| 080 | 4620 306 247 | Bushing | |
| 090 | 4642 306 094 | Valve core | |
| 100 | 0732 041 254 | Spring | |
| ПО | 4620 306 252 | Backing pin | |
| 120 | 0634 303 118 | O-ring | |
| 130 | 4620 306 413 | Valve core | |
| 140 | 0732 041 390 | Backing pin | |
| 150 | 4620 306 414 | Fixing plate | |
| 160 | 4644 306 549 | Valve core | |
| 170 | 4644 306 241 | Fixing plate | |
| 180 | 4620 306 255 | Valve core | |
| 190 | 0732 041 154 | Spring | |
| 200 | 0732 041 254 | Spring | |
| 210 | 4642 306 093 | Valve core | |
| 220 | 4620 306 252 | Backing pin | |
| 230 | 0634 303 118 | O-ring | |
| 240 | 4642 306 049 | Locking plate | |
| 250 | 4644 306 549 | Backing pin | |
| 260 | 0732 041 254 | Spring | |
| 270 | 4642 306 095 | Valve core | |
| 280 | 0732 041 254 | Spring | |
| 290 | 4642 306 096 | Valve core | |
| 300 | 4620 306 252 | Backing pin | |
| 310 | 634303118 | O-ring | |
| 320 | 4620 306 415 | Cover | |
| 330 | 4620 306 479 | Gasket | |
| 340 | 0636 015 244 | Hex. bolt | |
| 350 | 0501 315 338 | Solenoid valve | |
| 360 | 636101129 | Socket bolt | |
| 370 | 0630 305 012 | Spring washer | |
| 380 | 4620 206 019 | Cable set | |
| 400 | 0636 404 299 | Slotted screw | |
| 410 | 0630 302 076 | Saddle flexible washer | |
| 460 | 4620 306 259 | Solenoid valve housing | |
| 470 | 0634 303 951 | O-ring | |
| 480 | 4620 306 241 | Clamp | |
| 470 | 0634 303 951 | O-ring | |
| 480 | 4620 306 241 | Clamp | |
| 490 | 0636 304 019 | Plug screw | |
| 500 | 634801152 | Copper screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
