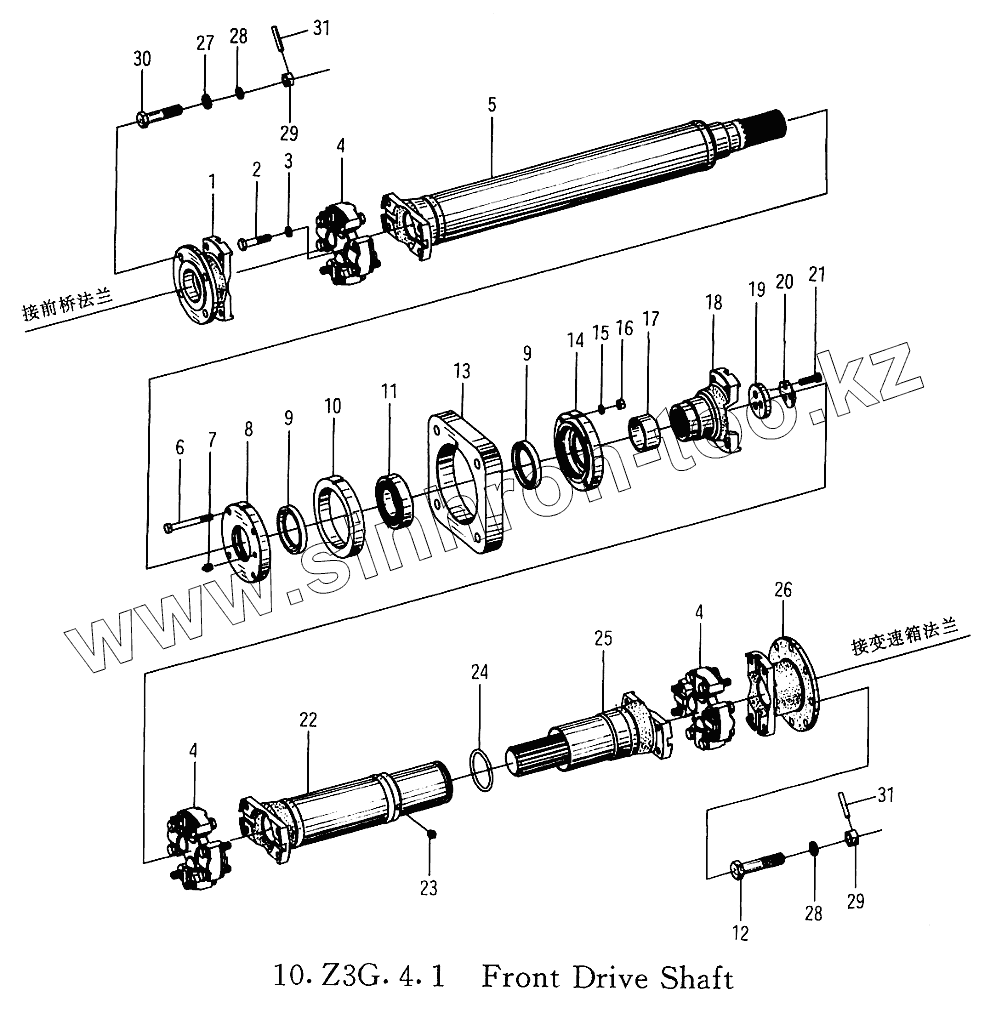

Каталог запасных частей к технике: XCMG ZL30G. Вал привода переднего моста
1
2
3
4
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z3.4.3-1 | Connector | |
| 2 | Diesel Engine Accessories | ||
| 3 | Diesel Engine Accessories | ||
| 4 | IS9670 | Universal Joint Assembly | |
| 5 | Z3G.4.1-1 | Tube | |
| 6 | Diesel Engine Accessories | ||
| 7 | Diesel Engine Accessories | ||
| 8 | ZL40E.4-8 | Bearing Seat | |
| 9 | HG4-692-67 | Seal | |
| 10 | ZL50.4-6 | Seal | |
| 11 | Diesel Engine Accessories | ||
| 12 | Z3.4-3 | Bolt M14X56 | |
| 13 | Z5G.1.2-2 | Bearing Seat | |
| 14 | ZL40E.4-10 | Front Bearing Seat | |
| 15 | Diesel Engine Accessories | ||
| 16 | Diesel Engine Accessories | ||
| 17 | Z3G.4.1-2 | Bushing | |
| 18 | Z3G.4.1-4 | Splinded Yoke | |
| 19 | 85Z.1.3-6 | Plate | |
| 20 | 85Z.1.3-5 | Lock Plate | |
| 21 | Diesel Engine Accessories | ||
| 22 | Z3G.4.1-5 | Splinded Pipe | |
| 23 | Diesel Engine Accessories | ||
| 24 | Diesel Engine Accessories | ||
| 25 | Z3G.4.1-6 | Splinded Yoke | |
| 26 | Z3G.4.1-7 | Connector | |
| 27 | Diesel Engine Accessories | ||
| 28 | Diesel Engine Accessories | ||
| 29 | Diesel Engine Accessories | ||
| 30 | Z3.4-2 | Bolt M14X45 | |
| 31 | Diesel Engine Accessories |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
