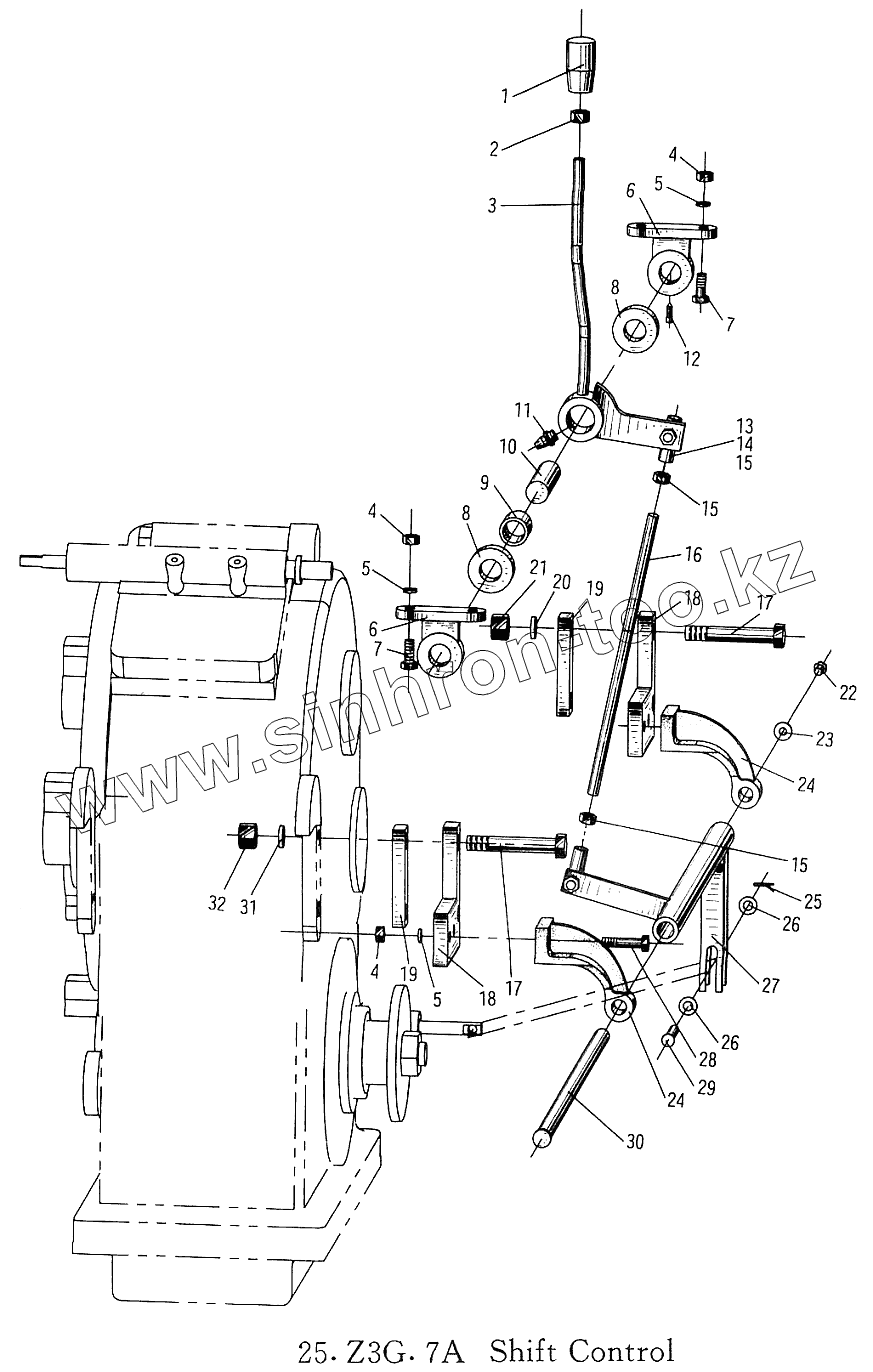

Каталог запасных частей к технике: XCMG ZL30G. Управление
1
2
3
4
4
4
5
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
15
15
16
17
17
18
18
19
19
20
21
22
23
24
24
25
26
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL40.7.1-16 | Knob M12 | |
| 2 | Diesel Engine Accessories | ||
| 3 | Z3.7.6 | Control Lever | |
| 4 | Diesel Engine Accessories | ||
| 5 | Diesel Engine Accessories | ||
| 6 | ZL40A.10.7-4A | Fixing Seat | |
| 7 | Diesel Engine Accessories | ||
| 8 | ZL40.10.7-3A | Spacer | |
| 9 | ZL40.10.7-1A | Lining Bushing | |
| 10 | Z3.7-5 | Shaft | |
| 11 | Diesel Engine Accessories | ||
| 12 | Diesel Engine Accessories | ||
| 13 | 85Z.05.2.4A | Joint,Ball | |
| 14 | Diesel Engine Accessories | ||
| 15 | Diesel Engine Accessories | ||
| 16 | Z3G.7-2 | Link Rod | |
| 17 | Diesel Engine Accessories | ||
| 18 | Z3.7-3 | Plate | |
| 19 | Z3.7-2 | Plate | |
| 20 | Diesel Engine Accessories | ||
| 21 | Diesel Engine Accessories | ||
| 22 | Diesel Engine Accessories | ||
| 23 | Z3.7-8 | Washer | |
| 24 | Z3.7-7 | Support | |
| 25 | Diesel Engine Accessories | ||
| 26 | Diesel Engine Accessories | ||
| 27 | Z3.7.4 | Lower Mechanism | |
| 28 | Diesel Engine Accessories | ||
| 29 | Diesel Engine Accessories | ||
| 30 | Z3.7-4 | Shaft | |
| 31 | Diesel Engine Accessories | ||
| 32 | Diesel Engine Accessories |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
