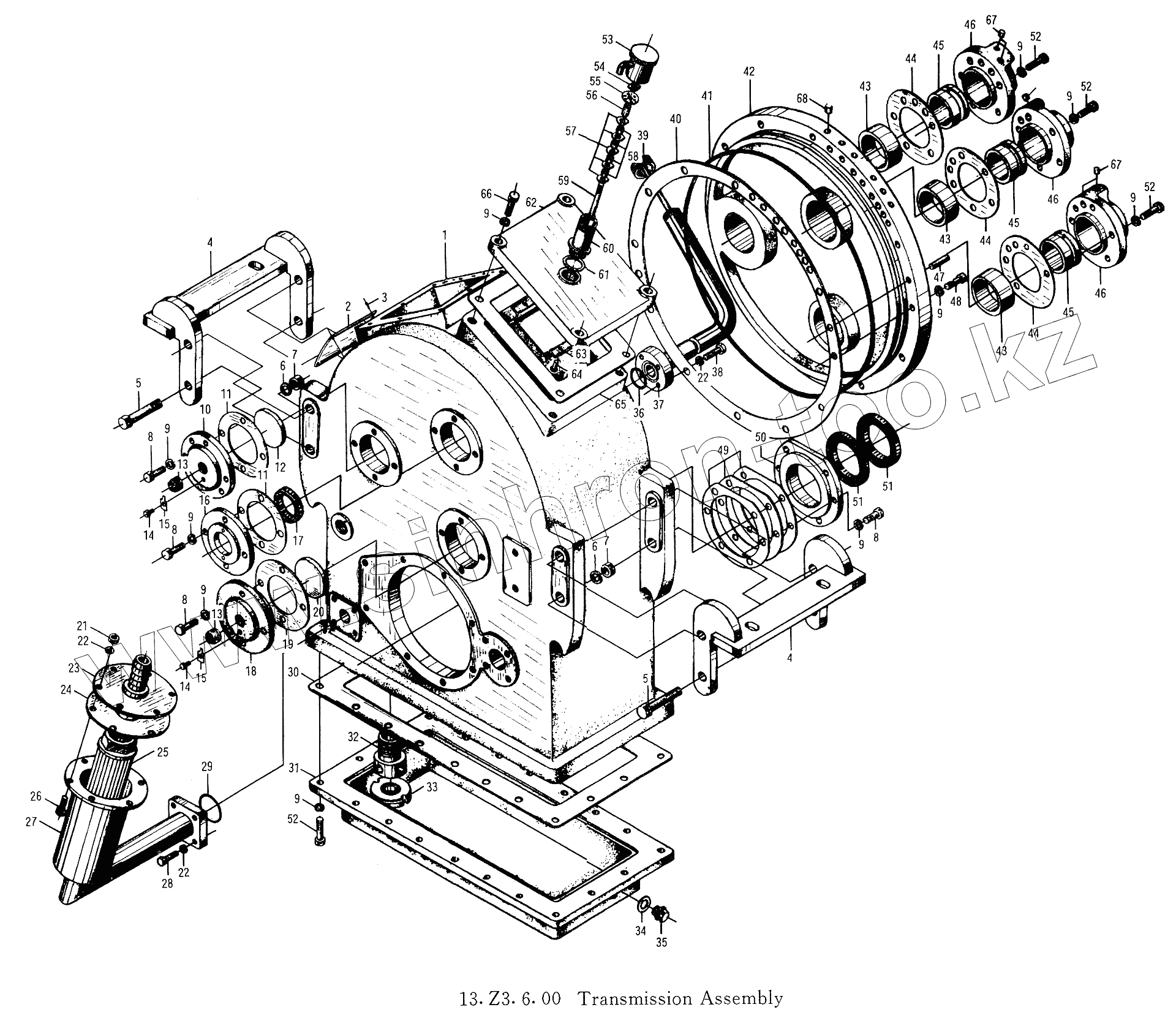

Каталог запасных частей к технике: XCMG ZL30G. Трансмиссия
1
2
3
4
4
5
5
6
6
7
7
8
8
8
8
9
9
9
9
9
9
9
9
9
9
10
11
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
43
44
44
44
45
45
45
46
46
46
47
48
49
50
51
51
52
52
52
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL20-03001 | Body | |
| 2 | 403091 | Decal | |
| 3 | Diesel Engine Accessories | ||
| 4 | ZL20-030057 | Support | |
| 5 | Diesel Engine Accessories | ||
| 6 | Diesel Engine Accessories | ||
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | Diesel Engine Accessories | ||
| 10 | ZL20-030003 | Cover | |
| 11 | ZL20-030002 | Paper Pad | |
| 12 | ZL20-030005 | Plate | |
| 13 | ZL20-030006 | Set Screw | |
| 14 | Diesel Engine Accessories | ||
| 15 | ZL20-030004 | Stop Plate | |
| 16 | ZL20-030008 | Cover | |
| 17 | Diesel Engine Accessories | ||
| 18 | ZL20-030058 | Cover | |
| 19 | ZL20-030025 | Paper Pad | |
| 20 | ZL20-030059 | Plate | |
| 21 | Diesel Engine Accessories | ||
| 22 | Diesel Engine Accessories | ||
| 23 | ZL20-030062-2W1X9 | Flange | |
| 24 | ZL20-030062-4 | Gasket | |
| 25 | WL-100X100-J | Element | |
| 26 | Diesel Engine Accessories | ||
| 27 | ZL20-030062-3W1 | Housing | |
| 28 | Diesel Engine Accessories | ||
| 29 | Q26-01 | O-Ring 16X2 | |
| 30 | ZL20-030020 | Gasket 1 | |
| 31 | ZL20-034001 | Oil Pan | |
| 32 | ZL20-030007 | Tube | |
| 33 | ZL20-030043 | Permanent magnet | |
| 34 | ZL20-034004 | Washer | |
| 35 | Q20-01 | Plug M10Xl-6h | |
| 36 | Diesel Engine Accessories | ||
| 37 | ZL20-037100 | Coupling | |
| 38 | Diesel Engine Accessories | ||
| 39 | ZL20-037200 | Cap | |
| 40 | ZL20-030063 | Paper Gasket | |
| 41 | ZL20-030033 | Rubber "O"-Ring | |
| 42 | ZL20-031000 | End Cover | |
| 43 | ZL20-030032 | Sleeve | |
| 44 | ZL20-030031 | Gasket | |
| 45 | ZL20-035002 | Sleeve | |
| 46 | ZL20-035001 | Cover | |
| 47 | Diesel Engine Accessories | ||
| 48 | Diesel Engine Accessories | ||
| 49 | ZL20-030022 | Seal Gaskets | |
| 50 | ZL20-030026 | End Cover | |
| 51 | HG4-335-66 | Oil Seal 65X90X12 | |
| 52 | Diesel Engine Accessories | ||
| 53 | ZL20-030101 | Cap | |
| 54 | Diesel Engine Accessories | ||
| 55 | ZL20-030103 | Clutch Disc (Inner) | |
| 56 | ZL20-030105 | Bushing | |
| 57 | ZL20-030106 | Gasket | |
| 58 | ZL20-030107 | Brass Spacer | |
| 59 | ZL20-030102 | Stud | |
| 60 | ZL20-030109 | Housing | |
| 61 | ZL20-030108 | Paper Pad | |
| 62 | ZL20-030039 | Cover | |
| 63 | ZL20-030060 | Oil plate | |
| 64 | Diesel Engine Accessories | ||
| 65 | ZL20-030040 | Paper Pad 0.5 | |
| 66 | Diesel Engine Accessories | ||
| 67 | Q21-34 | Plug 7 | |
| 68 | ZL20-031005 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
