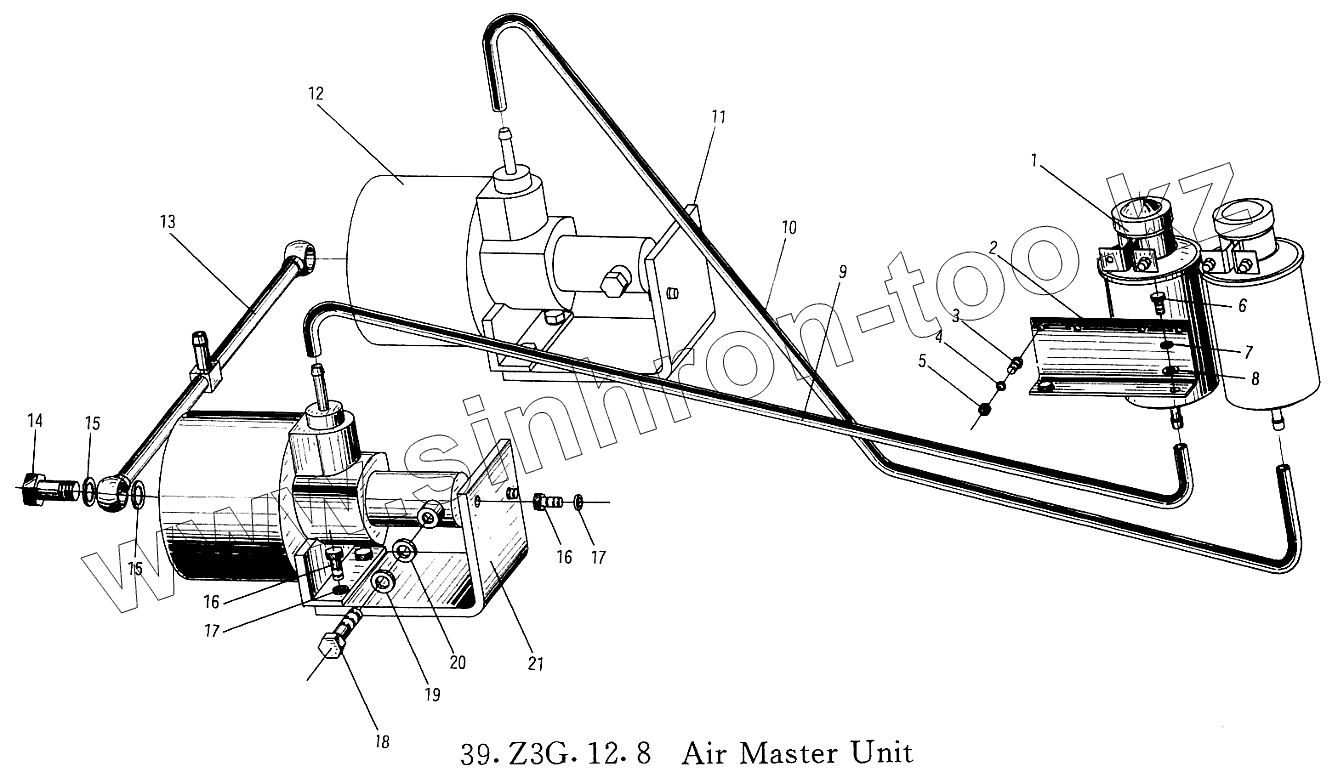

Каталог запасных частей к технике: XCMG ZL30G. Тормозная система
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 85Z.8.2.4.2 | Brake-Oil Flask | |
| 2 | Z3G.12-8 | Plate | |
| 3 | Diesel Engine Accessories | ||
| 4 | Diesel Engine Accessories | ||
| 5 | Diesel Engine Accessories | ||
| 6 | Diesel Engine Accessories | ||
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | Z3G.12-4 | Brake-Oil Hose | |
| 10 | Z3G.12-5 | Brake-Oil Hose | |
| 11 | Z3G.12-2 | Support Plank (R) | |
| 12 | XM-60C | Air Master | |
| 13 | Z3G.12.8.1 | Tee Joint Tube | |
| 14 | ZL40.12.5-1 | Bolt | |
| 15 | Diesel Engine Accessories | ||
| 16 | Diesel Engine Accessories | ||
| 17 | Diesel Engine Accessories | ||
| 18 | ZL40.12.4-14 | Joint | |
| 19 | Diesel Engine Accessories | ||
| 20 | ZL40.12.5-17 | Washer 12 | |
| 21 | Z3G.12-3 | Support Plank (L) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
