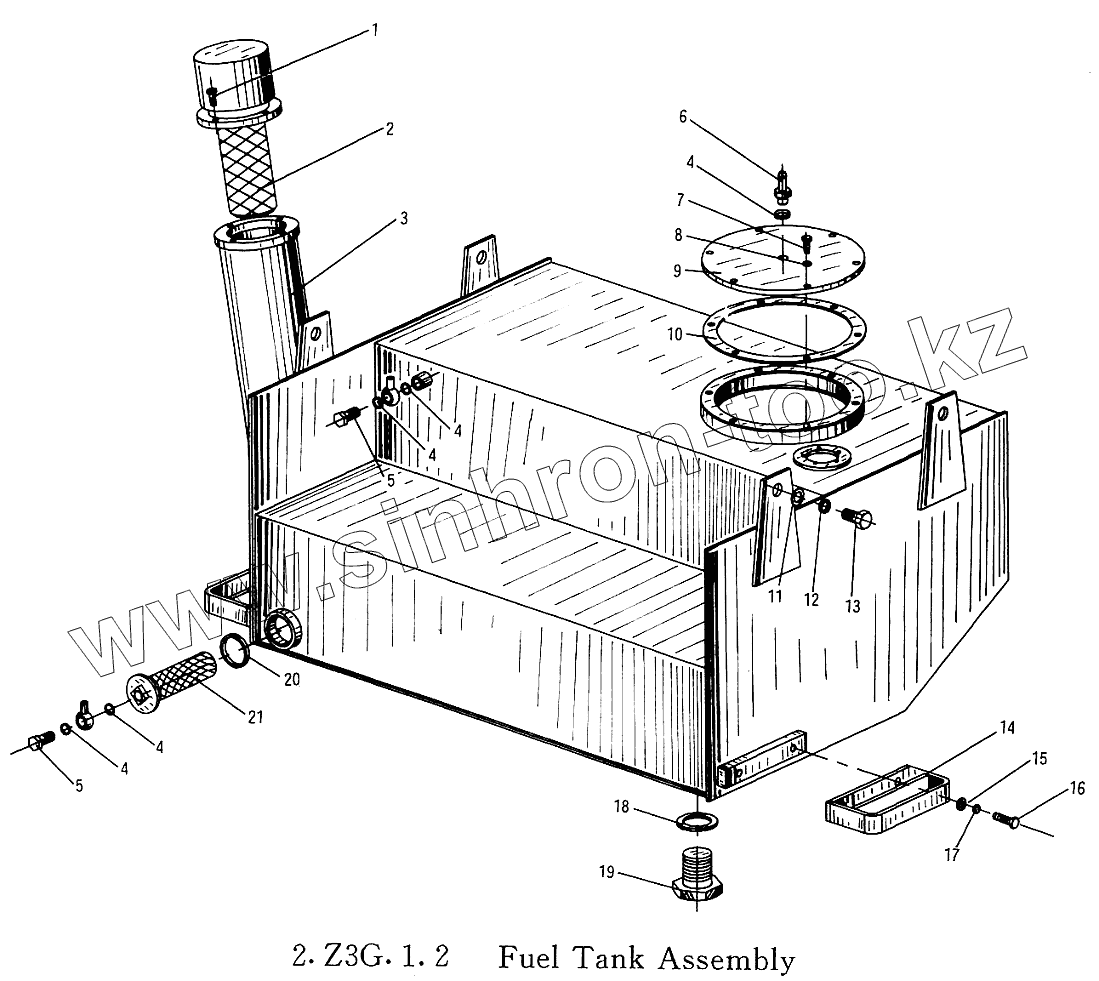

Каталог запасных частей к технике: XCMG ZL30G. Топливный бак
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Diesel Engine Accessories | ||
| 2 | ZL40(X).1.3.5A | Filter Assembly | |
| 3 | Z3G.1.2.1 | Fuel Tank Assembly | |
| 4 | Diesel Engine Accessories | ||
| 5 | Z3(LT).1-6A | Bolt M14X1.5 | |
| 6 | Z5G.1.1.3-3 | Joint | |
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | Z3G.1.2-1 | Cover Plate | |
| 10 | Z3G.1.2-2 | Rubber Plate | |
| 11 | Diesel Engine Accessories | ||
| 12 | Diesel Engine Accessories | ||
| 13 | Diesel Engine Accessories | ||
| 14 | Z3G.1.2.2 | Pedal | |
| 15 | Diesel Engine Accessories | ||
| 16 | Diesel Engine Accessories | ||
| 17 | Diesel Engine Accessories | ||
| 18 | Diesel Engine Accessories | ||
| 19 | ZL40.1.3-7 | Plug | |
| 20 | Diesel Engine Accessories | ||
| 21 | ZL40.1.3.3A | Oil Filter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
