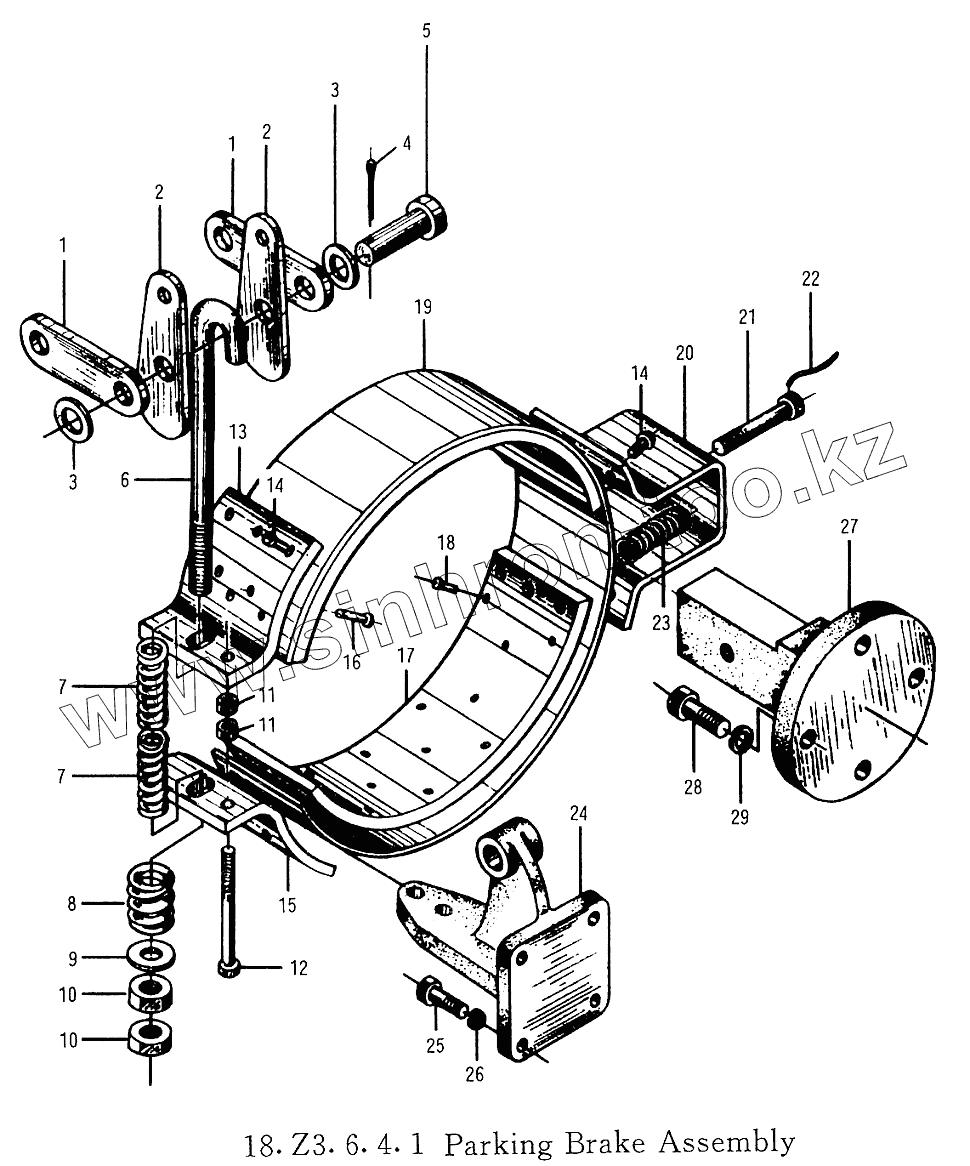

Каталог запасных частей к технике: XCMG ZL30G. Стояночный тормоз
1
1
2
2
3
3
4
5
6
7
7
8
9
10
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | ZL20-038005 | Plate | |
| 2 | ZL20-038003 | Plate | |
| 3 | Diesel Engine Accessories | ||
| 4 | Diesel Engine Accessories | ||
| 5 | Diesel Engine Accessories | ||
| 6 | ZL20-038004 | Screw | |
| 7 | ZL20-038002 | Spring | |
| 8 | ZL20-038001 | Spring | |
| 9 | Diesel Engine Accessories | ||
| 10 | Diesel Engine Accessories | ||
| 11 | Diesel Engine Accessories | ||
| 12 | Diesel Engine Accessories | ||
| 13 | ZL20-038102 | Brake Band (Upper) | |
| 14 | Diesel Engine Accessories | ||
| 15 | ZL20-038101 | Brake Band (Lower) | |
| 16 | Diesel Engine Accessories | ||
| 17 | ZL20-038104 | Brake Lining | |
| 18 | Diesel Engine Accessories | ||
| 19 | ZL20-038103 | Steel Band | |
| 20 | ZL20-038105 | Support | |
| 21 | Diesel Engine Accessories | ||
| 22 | ZL20-038007 | Wire 0.5 | |
| 23 | ZL20-038006 | Spring | |
| 24 | ZL20-030041 | Bracket (right) | |
| 25 | Diesel Engine Accessories | ||
| 26 | Diesel Engine Accessories | ||
| 27 | ZL20-030042 | Bracket (left) | |
| 28 | Diesel Engine Accessories | ||
| 29 | Diesel Engine Accessories |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
