Каталог запасных частей к технике: XCMG ZL30G. Поворотный цилиндр
1
2
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30

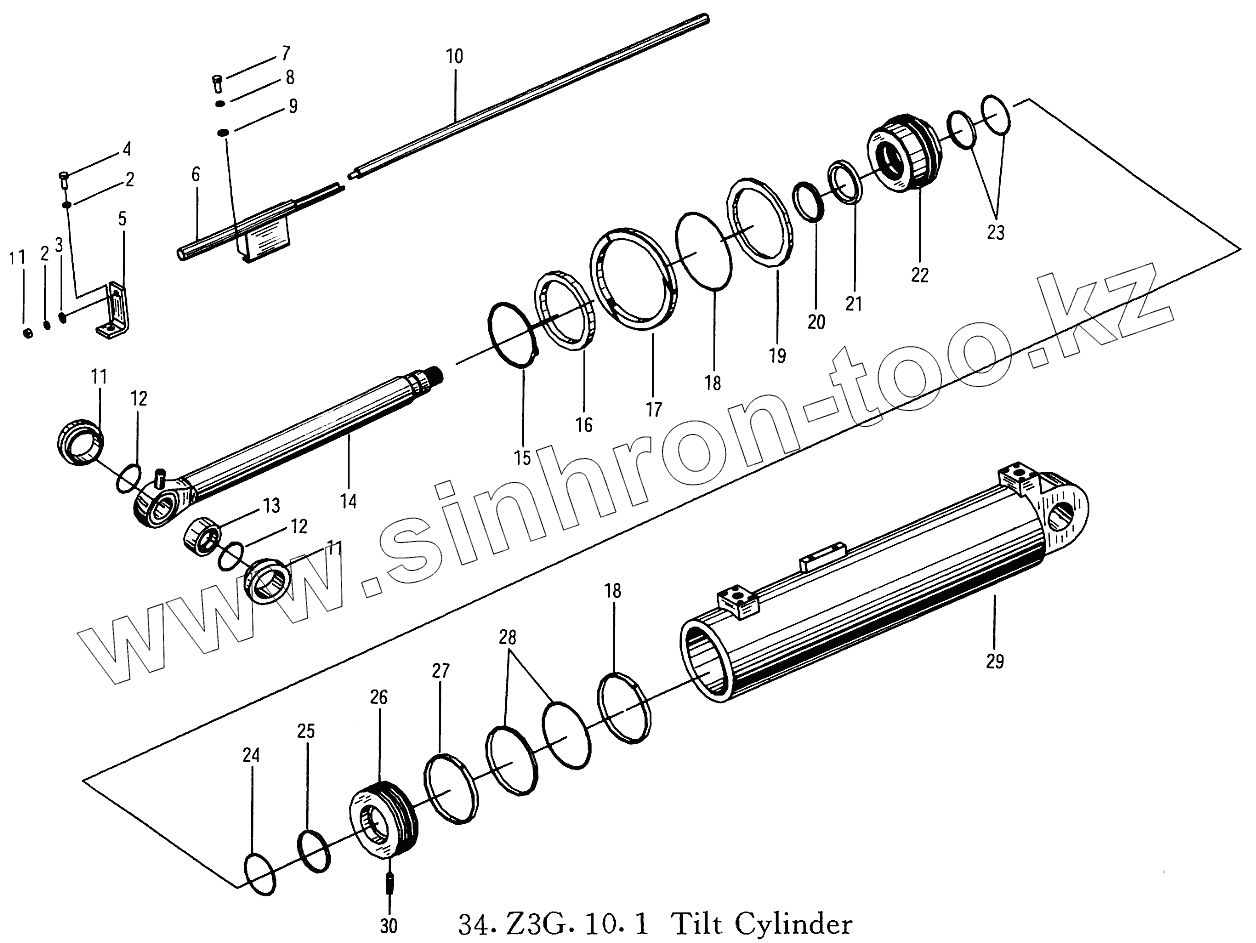

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Diesel Engine Accessories | ||
| 2 | Diesel Engine Accessories | ||
| 3 | Diesel Engine Accessories | ||
| 4 | Diesel Engine Accessories | ||
| 5 | Z3.10.1-11 | Support | |
| 6 | Z.10.1.1.2 | Guide Tube | |
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | Diesel Engine Accessories | ||
| 10 | Z3G.10.1-1 | Indicator Rod | |
| 11 | Z3.10.1-10 | Dust Ring | |
| 12 | Diesel Engine Accessories | ||
| 13 | GE60ES | Tumbler Bearing GB304.5-81 | |
| 14 | Z3G.10.1-8 | Piston Rod | |
| 15 | Diesel Engine Accessories | ||
| 16 | Z3G.10.1-2 | Snap Ring | |
| 17 | Z3.10.1-3 | Key | |
| 18 | Diesel Engine Accessories | ||
| 19 | Z3G.10.1-9 | Snap Ring | |
| 20 | WD1700800-N9 | Dust Ring | |
| 21 | RUJ200800-Z94 | U-Ring | |
| 22 | Z3G.10.1-4 | Guide Sleeve | |
| 23 | CKS-063 | Step Ring d63 | |
| 24 | Diesel Engine Accessories | ||
| 25 | Z3G.10.1-7 | Snap | |
| 26 | Z3G.10.1-6 | Piston | |
| 27 | Z3.10.1-5 | Slyd Ring | |
| 28 | S-55044 | Glyd Ring dl50 | |
| 29 | Diesel Engine Accessories | ||
| 30 | Z3G.10.1.1 | Cylinder Body |
