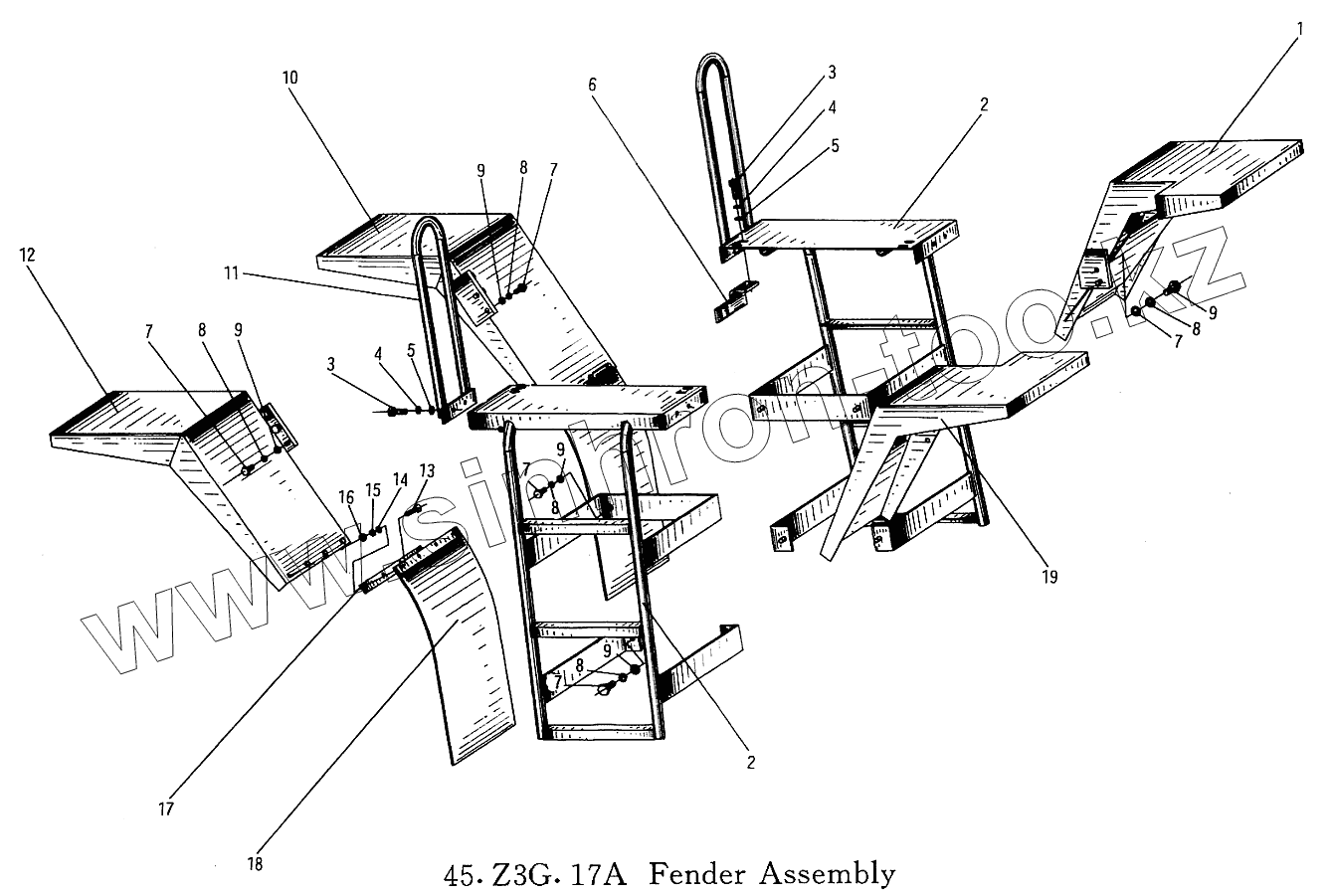

Каталог запасных частей к технике: XCMG ZL30G. Крыло
1
2
2
3
3
4
4
5
5
6
7
7
7
7
7
8
8
8
8
8
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z3G.17.6 | Rear Fender Assembly (R) | |
| 2 | Z3G.17.4 | Ladder | |
| 3 | Diesel Engine Accessories | ||
| 4 | Diesel Engine Accessories | ||
| 5 | Diesel Engine Accessories | ||
| 6 | Z3G.17-3 | Plank | |
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | Diesel Engine Accessories | ||
| 10 | Z3G.17.2 | Front Fender | |
| 11 | Z3G.17.3 | Handrail | |
| 12 | Z3G.17.1 | Front Fender(L) | |
| 13 | Diesel Engine Accessories | ||
| 14 | Diesel Engine Accessories | ||
| 15 | Diesel Engine Accessories | ||
| 16 | Diesel Engine Accessories | ||
| 17 | Z3G.17-1 | Board | |
| 18 | Z3G.17-2 | Plank | |
| 19 | Z3G.17.5 | Rear Fender Assembly (L) |
