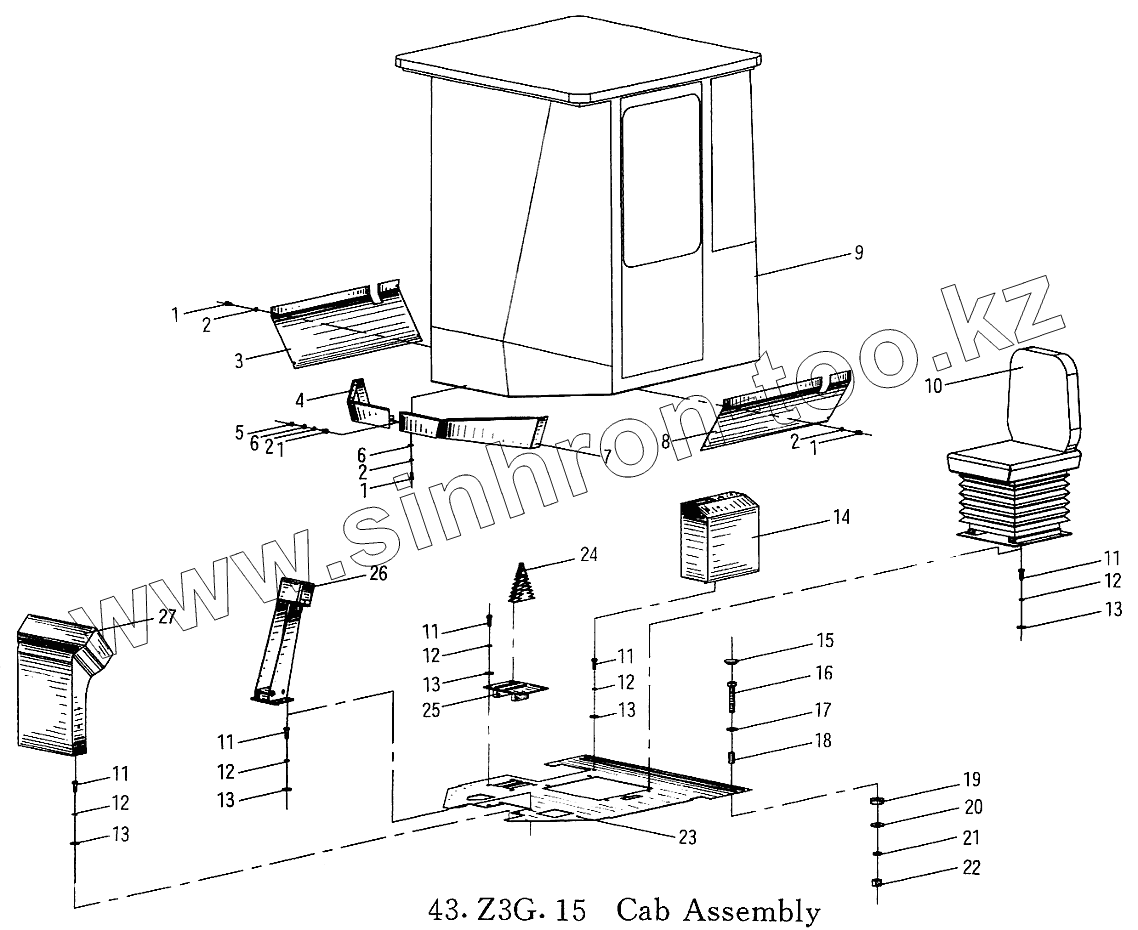

Каталог запасных частей к технике: XCMG ZL30G. Кабина
1
1
1
1
2
2
2
2
3
4
5
6
6
7
8
9
10
11
11
11
11
11
12
12
12
12
12
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Diesel Engine Accessories | ||
| 2 | Diesel Engine Accessories | ||
| 3 | Z3G.16-5 | Plate | |
| 4 | Z3G.16.5 | Plate | |
| 5 | Diesel Engine Accessories | ||
| 6 | Diesel Engine Accessories | ||
| 7 | Z3G.16.6 | Plate | |
| 8 | Z3G.16-4 | Plate | |
| 9 | Z3G.15.1 | Cab | |
| 10 | Z5G.10.6 | Driver Chair Assembly | |
| 11 | Diesel Engine Accessories | ||
| 12 | Diesel Engine Accessories | ||
| 13 | Diesel Engine Accessories | ||
| 14 | Z3G.15.5 | Control Box | |
| 15 | Z5G.10-10 | Seal Cover | |
| 16 | Diesel Engine Accessories | ||
| 17 | Diesel Engine Accessories | ||
| 18 | Z3G.15-1 | Tube | |
| 19 | Z3G.1-3 | Cushion | |
| 20 | Z3G.1-1 | Rubber Plate | |
| 21 | Diesel Engine Accessories | ||
| 22 | Diesel Engine Accessories | ||
| 23 | Z3G.15-2 | Rubber Cushion | |
| 24 | Z3G.15-5 | Bushing | |
| 25 | Z3G.15.4A | Plate | |
| 26 | Z3G.15.3 | Steering Cover | |
| 27 | Z3G.15.2 | Meters Platform |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
