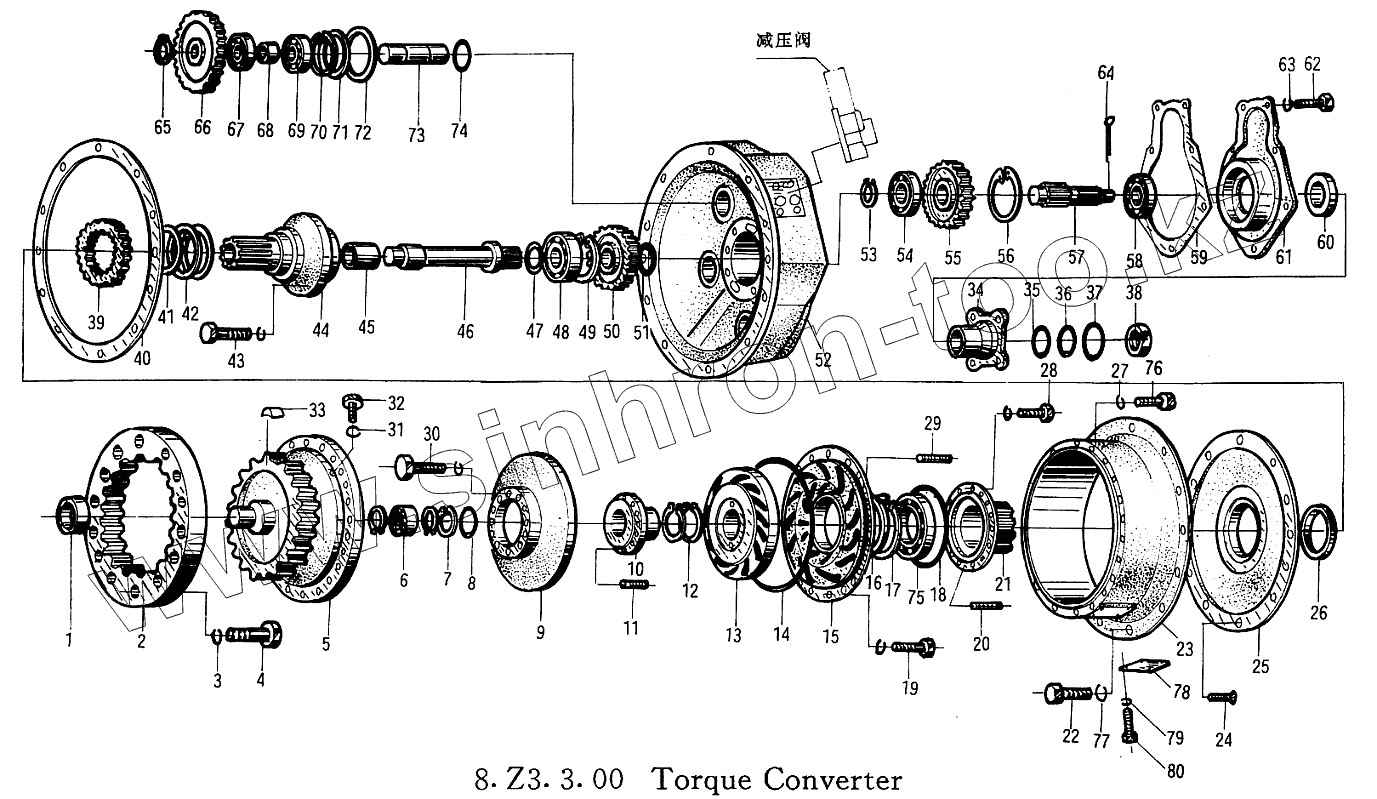

Каталог запасных частей к технике: XCMG ZL30G. Гидротрансформатор
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 30D-11-31 | Bush | |
| 2 | 30D—11-30 | Driving Wheel | |
| 3 | Diesel Engine Accessories | ||
| 4 | Diesel Engine Accessories | ||
| 4 | Diesel Engine Accessories | ||
| 5 | 30D-11-32 | Connetive Wheel | |
| 6 | Diesel Engine Accessories | ||
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | 30D-11-37 | Turbine | |
| 10 | 30D-11-28 | Turbine Guide Sleeve | |
| 11 | 30D-11-29 | Pin | |
| 12 | Diesel Engine Accessories | ||
| 13 | 30D-11-27 | Stator | |
| 14 | Diesel Engine Accessories | ||
| 15 | 30D-11-25 | Impeller | |
| 16 | 30D-11-24 | Snap | |
| 17 | Diesel Engine Accessories | ||
| 18 | Diesel Engine Accessories | ||
| 19 | Diesel Engine Accessories | ||
| 20 | 30D-11-22 | Pin | |
| 21 | 30D-11-21 | Impeller Guide Sleeve | |
| 22 | Diesel Engine Accessories | ||
| 23 | 30D-11-26 | Converter Housing | |
| 24 | Diesel Engine Accessories | ||
| 25 | 30D-11-23 | Spacer Plate | |
| 26 | BJ130-3104070 | Oil Seal 100X120X13 | |
| 27 | Diesel Engine Accessories | ||
| 28 | Diesel Engine Accessories | ||
| 29 | 30D-11-33 | Pin A6X20 | |
| 30 | Diesel Engine Accessories | ||
| 31 | 30D-11-36 | Washer | |
| 32 | 30D-11-35 | Plug | |
| 33 | 30D-11-34 | Rubber Tooth | |
| 34 | 30D-11-12 | Output Flange | |
| 35 | 30D-11-16 | Washer | |
| 36 | 30D-11-13 | Seal Gasket | |
| 37 | 30D-11-17 | Washer | |
| 38 | 30D-11-14 | Lock Nut | |
| 39 | 30D-11-20 | Gear | |
| 40 | 30D-11-38 | Washer | |
| 41 | Diesel Engine Accessories | ||
| 42 | 30D-11-19 | Seal Ring 80 | |
| 43 | Diesel Engine Accessories | ||
| 44 | 30D-11-05 | Stator Guide Sheeve | |
| 45 | 30D-11-10 | Bush | |
| 46 | 30D-11-09 | Shaft | |
| 47 | 30D-11-08 | Seal Ring 60 | |
| 48 | 310 | Roller Bearing GB276-64 | |
| 49 | Diesel Engine Accessories | ||
| 50 | 30D-11-06 | Gear | |
| 51 | Diesel Engine Accessories | ||
| 52 | 30D-11-1 | Converter Housing | |
| 53 | Diesel Engine Accessories | ||
| 54 | 307 | Roller Bearing GB276-64 | |
| 55 | 30D-11-18 | Gear | |
| 56 | Diesel Engine Accessories | ||
| 57 | 30D-11-15 | Output Shaft | |
| 58 | J308 | Roller Bearing GB276-64 | |
| 59 | 30D-11-07 | Seal Gasket | |
| 60 | NJ130-2402050 | Oil Seal 55X82X22 | |
| 61 | 30D-11-11 | Flange | |
| 62 | Diesel Engine Accessories | ||
| 63 | Diesel Engine Accessories | ||
| 64 | Diesel Engine Accessories | ||
| 65 | Diesel Engine Accessories | ||
| 66 | 30D-11-39 | Gear | |
| 67 | 206 | Roller Bearing GB276-64 | |
| 68 | 30D-11-40 | Bushing | |
| 69 | 50206 | Roller Bearing GB277-64 | |
| 70 | 30D-11-04 | Stop Ring | |
| 71 | 30D-11-03 | Washer | |
| 72 | Diesel Engine Accessories | ||
| 73 | 30D-11-02 | Pump Shaft | |
| 74 | Diesel Engine Accessories | ||
| 75 | 212 | Roller Bearing GB276-64 | |
| 76 | Diesel Engine Accessories | ||
| 77 | Diesel Engine Accessories | ||
| 78 | 30D-11-50 | Cover | |
| 79 | Diesel Engine Accessories | ||
| 80 | Diesel Engine Accessories |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
