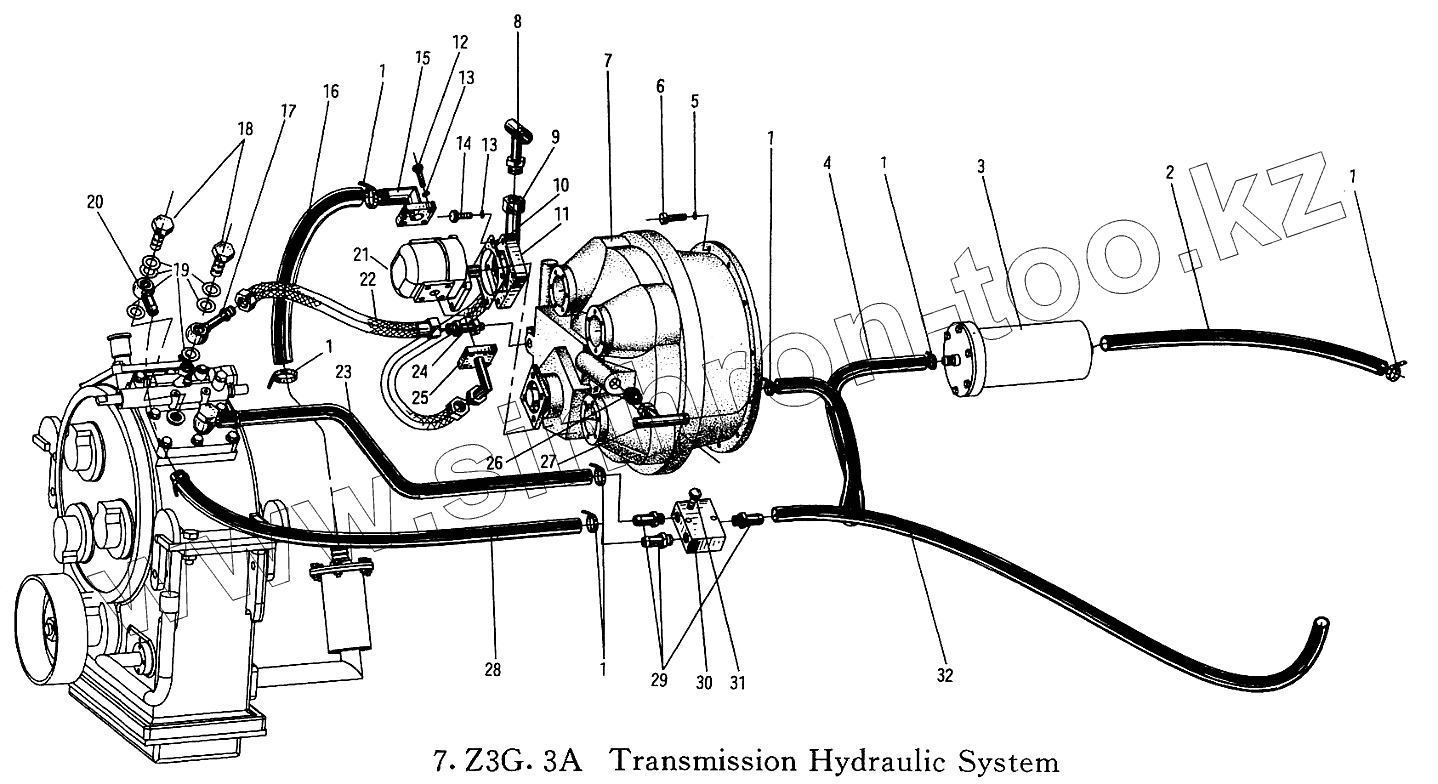

Каталог запасных частей к технике: XCMG ZL30G. Гидросистема трансмиссии
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | NO.1 | Clamp | |
| 2 | Z3G.3-6 | Hose (D=19) | |
| 3 | Z3.3.6 | Oil Clear | |
| 4 | Z3G.3-5 | Clamp (D=19) | |
| 5 | Diesel Engine Accessories | ||
| 6 | Diesel Engine Accessories | ||
| 7 | YJ315X | Torque Converter | |
| 8 | Z3.3.1 | Joint | |
| 9 | Z3.3.7A | Hose (D=19, L=550) | |
| 10 | Z3.3-15 | Washer | |
| 11 | 23.3-11 | Paper Pad | |
| 12 | Diesel Engine Accessories | ||
| 13 | Diesel Engine Accessories | ||
| 14 | Diesel Engine Accessories | ||
| 15 | Z3G.3.1A | Inlet Flange | |
| 16 | Z3.3-4 | Hose (D=32) | |
| 17 | Z3.3.10 | Joint | |
| 18 | Z3.3-10 | Bolt | |
| 19 | Diesel Engine Accessories | ||
| 20 | Z3.3.11 | Joint | |
| 21 | CB32 | Pump | |
| 22 | Z3.3.4A | Hose (D=13, L=870) | |
| 23 | Z3G.3-2 | Hose (D=19) | |
| 24 | Z3.3.2 | Joint | |
| 25 | Z3G.3.2A | Outlet Flange | |
| 26 | Z3.3-7A | Joint | |
| 27 | Z3.3.8 | Bolt M10X55 | |
| 28 | Z3G.3-8 | Hose (D=19) | |
| 29 | Z3.3-19 | Joint | |
| 30 | Z3.3.4 | Joint | |
| 31 | Z3.3.8 | Bolt M10X55 | |
| 32 | Z3G.3-7 | Hose (D=19) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
