Каталог запасных частей к технике: XCMG ZL30G. Гидросистема рабочего оборудования
1
2
3
3
4
5
6
6
7
7
8
8
8
8
8
8
8
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
10
11
12
13
13
14
14
15
16
16
16
16
16
17
17
17
17
17
17
17
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
37
38
39
40
41
42
43
43
43
43
44
45
45
45
45
45
45
46
46
46
46
46
47
48
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
61
63
64
65
66
67

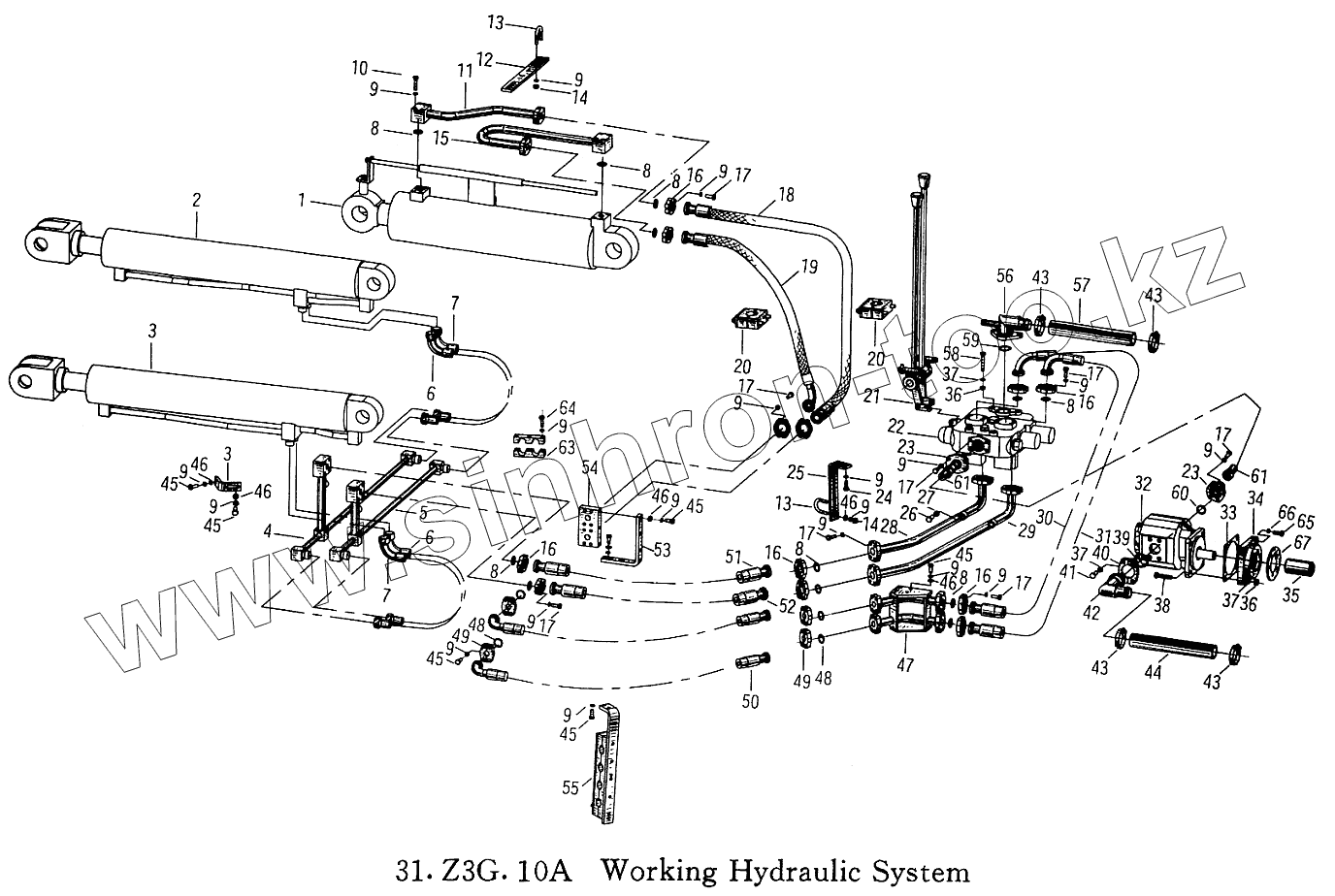

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z3G.10.1 | Tilt Cylinder | |
| 2 | Z3G.10.3 | Right Lift Cylinder | |
| 3 | Z3G.10.2 | Left Lift Cylinder | |
| 4 | Z3G.10.7A | Tube | |
| 5 | Z3G.10.8A | Tube | |
| 6 | Z3G.10.11 | D Hose | |
| 7 | Z3G.10.10 | D Hose | |
| 8 | Diesel Engine Accessories | ||
| 9 | Diesel Engine Accessories | ||
| 10 | Diesel Engine Accessories | ||
| 11 | Z3G.10.5 | Tube | |
| 12 | Z3G.10-2 | Plate | |
| 13 | Z3G.10-1 | U Bolt | |
| 14 | Diesel Engine Accessories | ||
| 15 | Z3G.10.9 | Connector | |
| 16 | 85Z.10.1-2 | Split Flange | |
| 17 | Diesel Engine Accessories | ||
| 18 | Z3G.10.28 | F Hose | |
| 19 | Z3G.10.27 | F Hose | |
| 20 | Z3G.10.6 | Clamp | |
| 21 | Z3G.10.20 | Propulsion Linkage System | |
| 22 | DF25B2C30G) | Control Valve | |
| 23 | Z3G.10.24 | Joint | |
| 24 | Diesel Engine Accessories | ||
| 25 | Z3G.10-7 | Plank | |
| 26 | Z5G.7.1-1 | Plug | |
| 27 | Diesel Engine Accessories | ||
| 28 | Z3G.10.17A | Tube | |
| 29 | Z3G.10.18A | Tube | |
| 30 | Z3G.10.21 | F Hose | |
| 31 | Z3G.10.16 | F Hose | |
| 32 | CBGJ2100 | Pump | |
| 33 | Z3.10-8 | Paper Cushion | |
| 34 | Z3.10-4 | Joint Disc | |
| 35 | Z3.10-5A | Joint Shaft | |
| 36 | Diesel Engine Accessories | ||
| 37 | Diesel Engine Accessories | ||
| 38 | Diesel Engine Accessories | ||
| 39 | Diesel Engine Accessories | ||
| 40 | Z5G.7.2-3 | Split Flange | |
| 41 | Diesel Engine Accessories | ||
| 42 | Z3G.10.23 | Tube | |
| 43 | Diesel Engine Accessories | ||
| 44 | Z3G.10-6 | Hose | |
| 45 | Diesel Engine Accessories | ||
| 46 | Diesel Engine Accessories | ||
| 47 | Z3G.10.15A | Tube | |
| 48 | Diesel Engine Accessories | ||
| 49 | ZC5G.7.1-1 | Split Flange | |
| 50 | Z3G.10.13A | F Hose | |
| 51 | Z3G.10.1A | F Hose | |
| 52 | Z3G.10.14A | F Hose | |
| 53 | Z3G.10-10 | Plank | |
| 54 | Z3G.10.9 | Connector | |
| 55 | Z3G.10.12 | Clamp | |
| 56 | Z3G.10.19 | Joint | |
| 57 | Z3G.10-5 | Hose | |
| 58 | Diesel Engine Accessories | ||
| 59 | Diesel Engine Accessories | ||
| 60 | Diesel Engine Accessories | ||
| 61 | Z3G.10.25 | D Tube | |
| 62 | Z3G.10-8 | Plate | |
| 63 | Z3G.10-3 | Clamp | |
| 64 | Diesel Engine Accessories | ||
| 65 | Diesel Engine Accessories | ||
| 66 | Diesel Engine Accessories | ||
| 67 | Z3.3-14 | Paper Cushion |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
